Siemens SINAMICS G120C DP User Manual

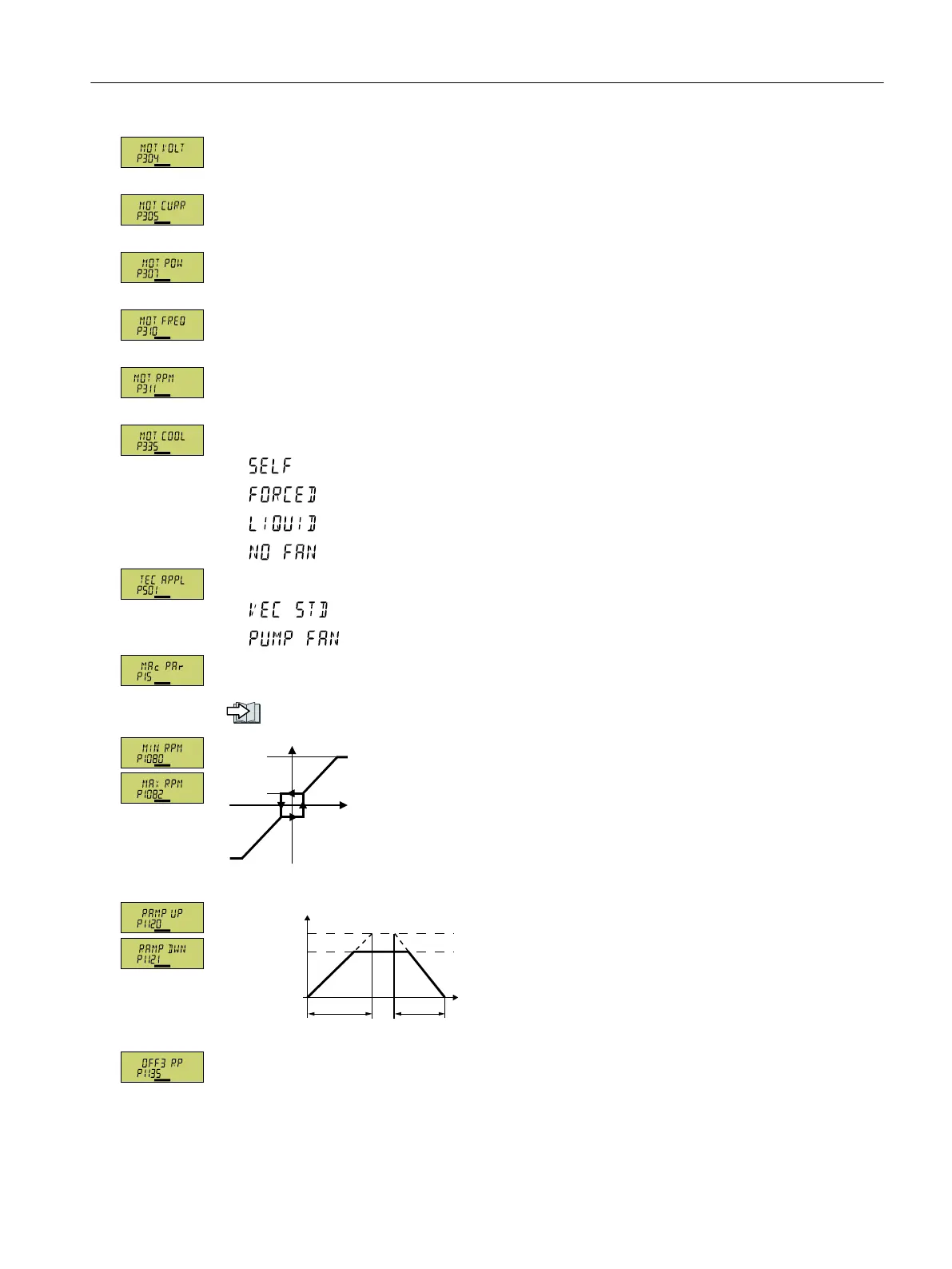

Rated motor voltage
Rated motor current
Rated motor power
Rated motor frequency
Rated motor speed
Motor cooling:
• : Natural cooling
• : Forced-air cooling
• : Liquid cooling
• : Without fan
Select the basic setting for the motor control:
• : Constant load
• : Speed-dependent load
Select the default setting for the interfaces of the converter that is suitable for your
application.
Default setting of the interfaces (Page92)
6HWSRLQW
S
S
Q
Figure5-5 Minimum and maximum motor speed
Q
6HWSRLQW
S
S
W
Q
PD[
S
Figure5-6 Ramp-up and ramp-down time of the motor
Ramp-down time after the OFF3 command
Commissioning
5.4Quick commissioning using the BOP-2 operator panel
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 129

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
