1. Open the control panel.
2. Assume master control for the converter.
3. Set the "Drive enables"
4. Switch on the motor.
The converter starts the motor data identi󹪝cation. This measurement can take several
minutes.
Depending on the setting, after motor data identi󹪝cation has been completed, the converter
switches o󹪜 the motor - or it accelerates it to the currently set setpoint.
5. If required, switch o󹪜 the motor.
6. Relinquish the master control after the motor data identi󹪝cation.

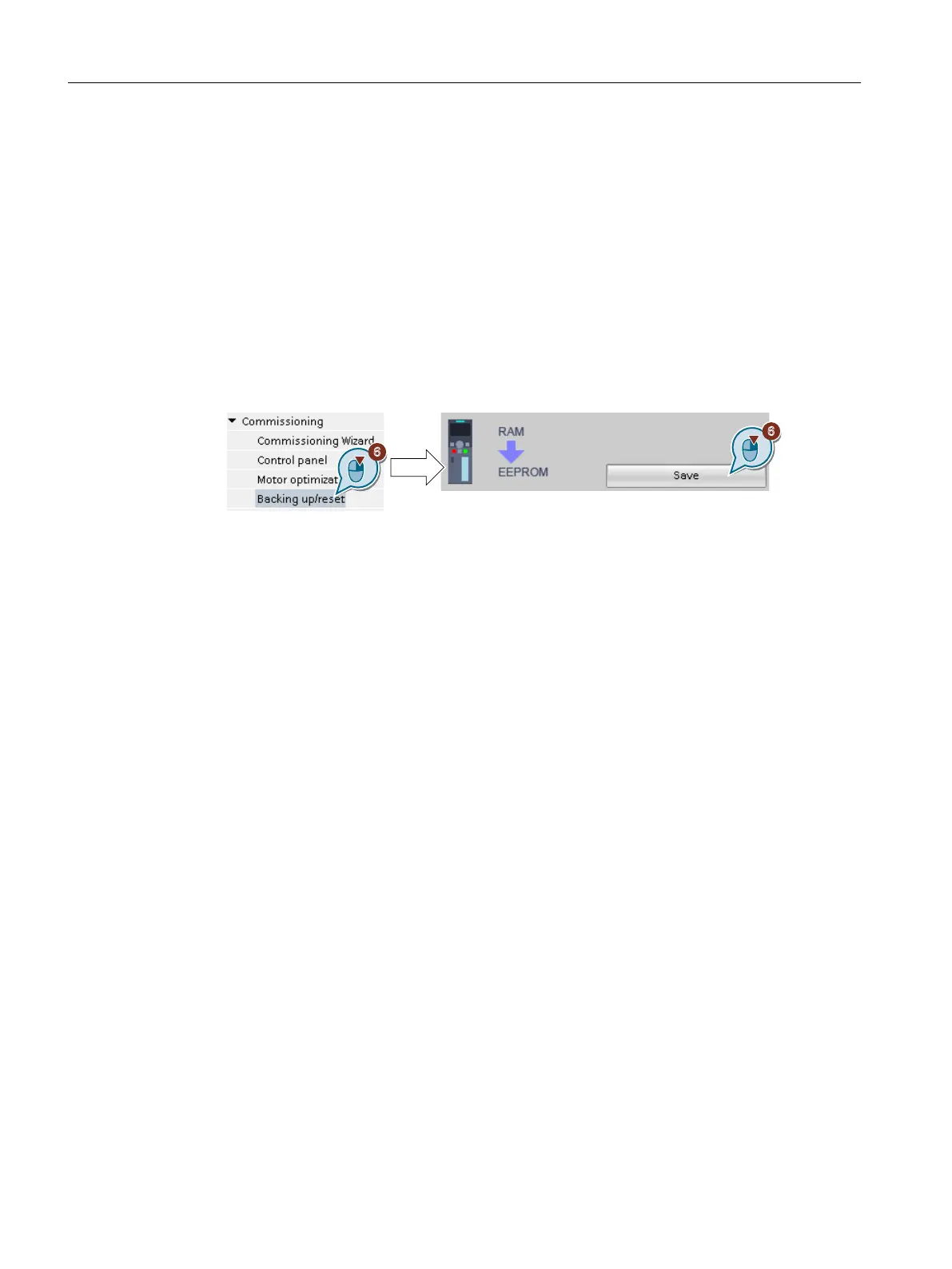

7. Save the settings in the converter (RAM → EEPROM):


You have completed the motor data identi󹪝cation.
❒
Self-optimization of the speed control
If you have not only selected motor data identi󹪝cation with the motor stationary, but also
rotating measurement with self-optimization of the speed control, you must switch on the
motor again as described above and wait for the optimization run to 󹪝nish.
Quick commissioning has been completed once the motor data identi󹪝cation has been
successfully completed.
Recommendations
• Induction motors
When commissioning induction machines, you are advised to proceed as follows:
– Before connecting the load, a complete "rotating measurement" (p1900 = 3 or without
encoder: p1960 = 1; with encoder: p1960 = 2) should be carried out. Since the induction
machine is idling, you can expect highly accurate results for the saturation characteristic
and the rated magnetizing current.
– When the load is connected, speed controller tuning should be repeated because the total
moment of inertia has changed. This is realized by selecting parameter p1960 (without
encoder: p1960 = 3; with encoder: p1960 = 4). During the speed optimization, the
saturation characteristic recording is automatically deactivated in parameter p1959.
• Permanent-magnet synchronous motors
When permanent-magnet synchronous motors are commissioned, the speed controller
should be tuned (p1900 = 3 or p1960 > 0) when the load is connected.
Commissioning
5.5Quick commissioning with a PC.
SINAMICS G120C Converters
152 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
