Siemens SINAMICS G120C DP User Manual

,QYHUWHUFRQWURO
6HWSRLQWV
6HWSRLQWSURFHVVLQJ
/RZHU
)L[HGVHWSRLQWV
0RWRUL]HGSRWHQWLRPHWHU
5DLVH
6XSSOHPHQWD
U\VHWSRLQW
0DLQVHWSRLQW
-RJJLQJ
VHWSRLQW
7HFKQRORJ\
FRQWUROOHU
6HWSRLQWIURP
RSHUDWRUSDQHO
RU3&


3,'

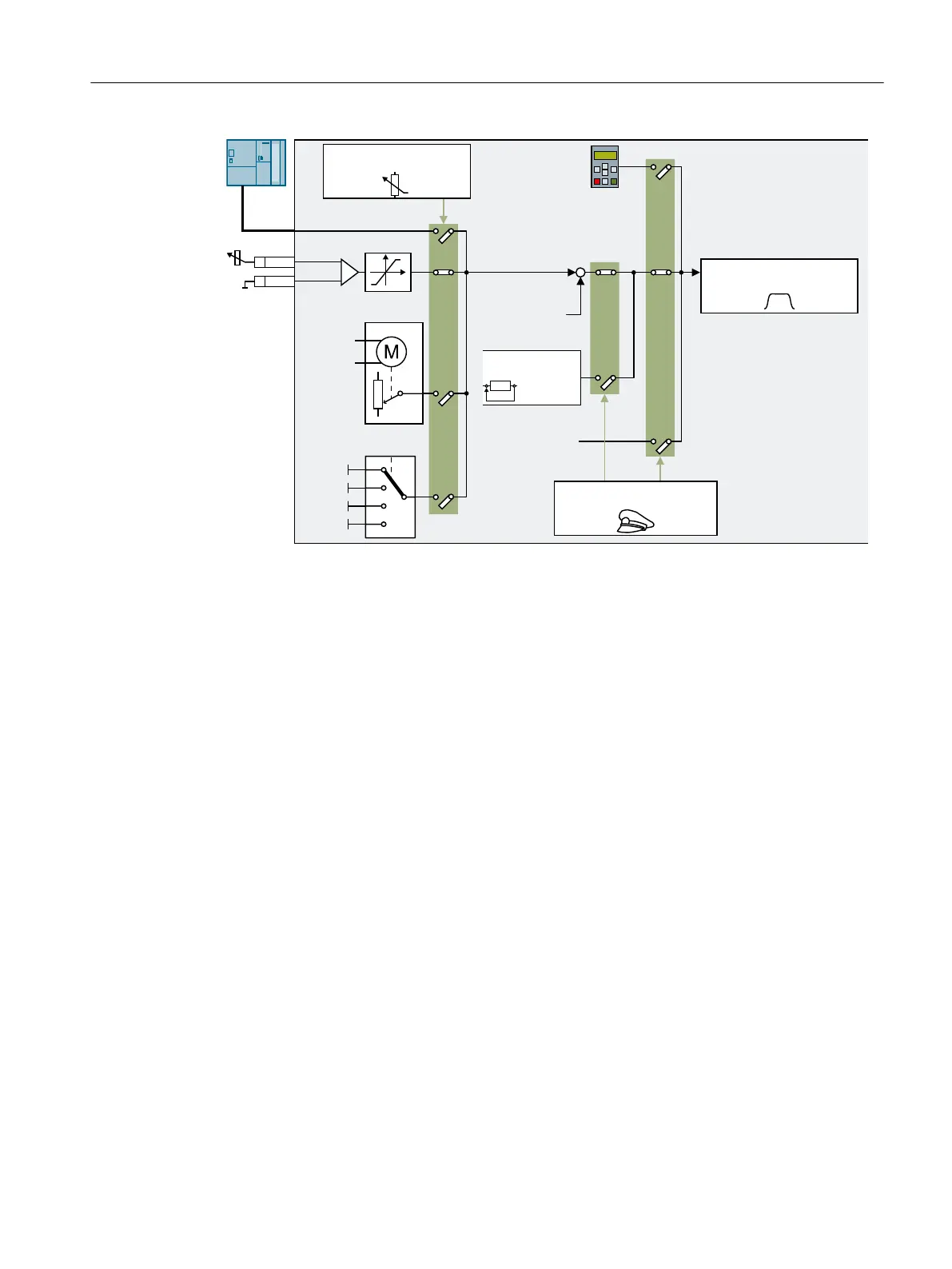

Figure8-32 Setpoint sources for the converter
You have the following options when selecting the source of the main setpoint:
• Converter 󹪝eldbus interface
• Analog input of the converter
• Motorized potentiometer emulated in the converter
• Fixed setpoints saved in the converter
You have the same selection options when selecting the source of the supplementary
setpoint.
Under the following conditions, the converter switches from the main setpoint to other
setpoints:
• When the technology controller is active and appropriately interconnected, its output
speci󹪝es the motor speed.
• When jogging is active
• When controlled from an operator panel or a PC
Advanced commissioning
8.17Setpoints
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 271

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
