• The "Speed limitation" function protects the motor and the driven load against excessively
high speeds.
• The "Ramp-function generator" function prevents the setpoint from suddenly changing. As
a consequence, the motor accelerates and brakes with a reduced torque.
,QKLELW
GLUHFWLRQRI
URWDWLRQ
,QYHUW
6NLSIUHTXHQF\
EDQGV
6HWSRLQWIRU
PRWRUFRQWURO
)URP
VHWSRLQW
VRXUFH
6SHHG
OLPLWDWLRQ
5DPS
IXQFWLRQ
JHQHUDWRU



[
\
[
\
W
\\[[

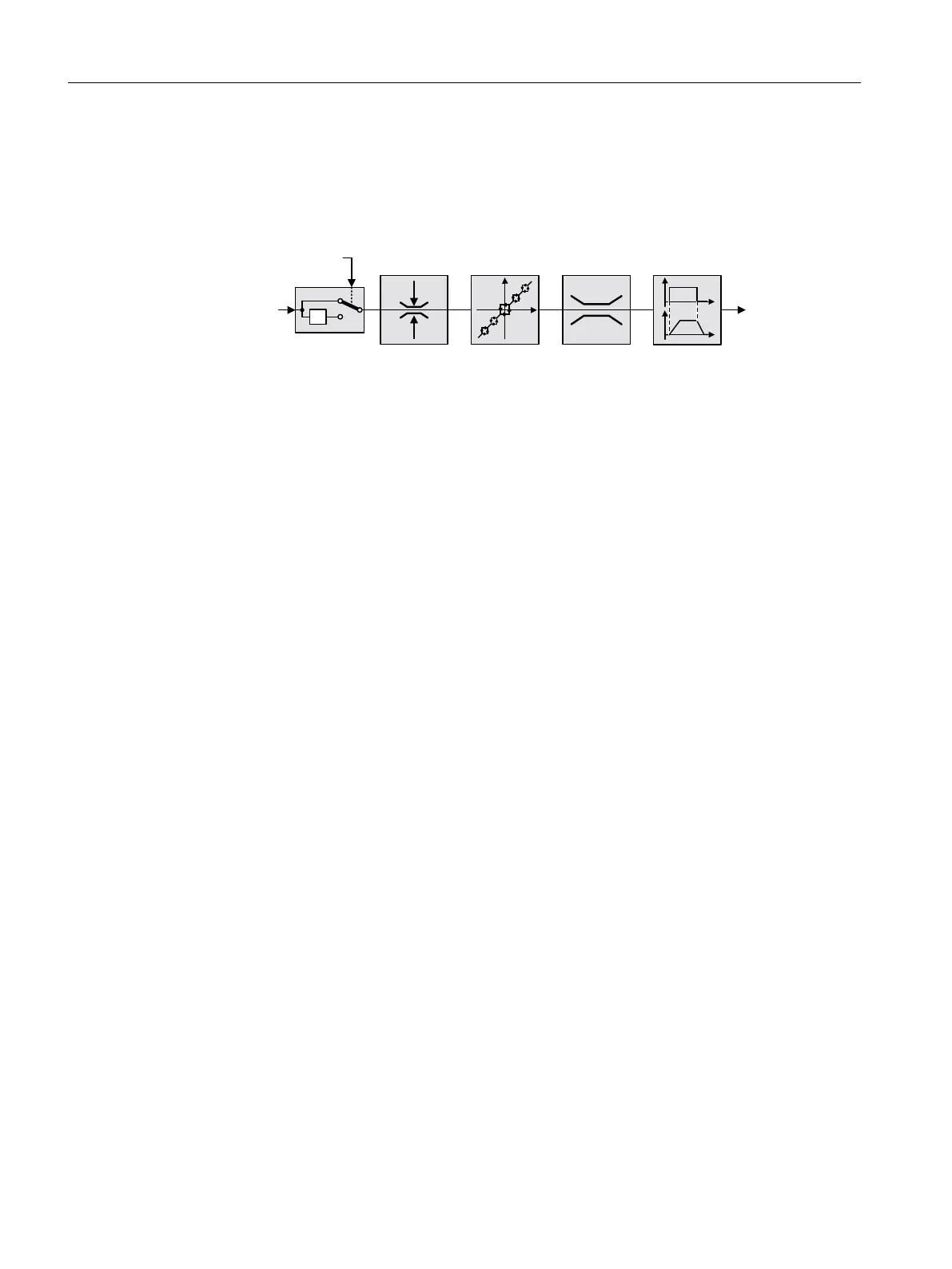

Figure8-40 Setpoint processing in the converter
Advanced commissioning
8.18Setpoint processing
SINAMICS G120C Converters
280 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
