Function description
Characteristics after selecting the application class Standard Drive Control
I
VHW
8
VHW
I
VHW
,
TBVHW
,
TBVHW
0D[LPXPRXWSXW
YROWDJH
7HFKQRORJLFDODSSOLFDWLRQ
5DWHGPRWRUIUHTXHQF\
/LQHDU
3DUDEROLF


S
S
S
U
U




① The closed-loop starting current control optimizes the speed control at low speeds
② The converter compensates the voltage drop across the motor stator resistance

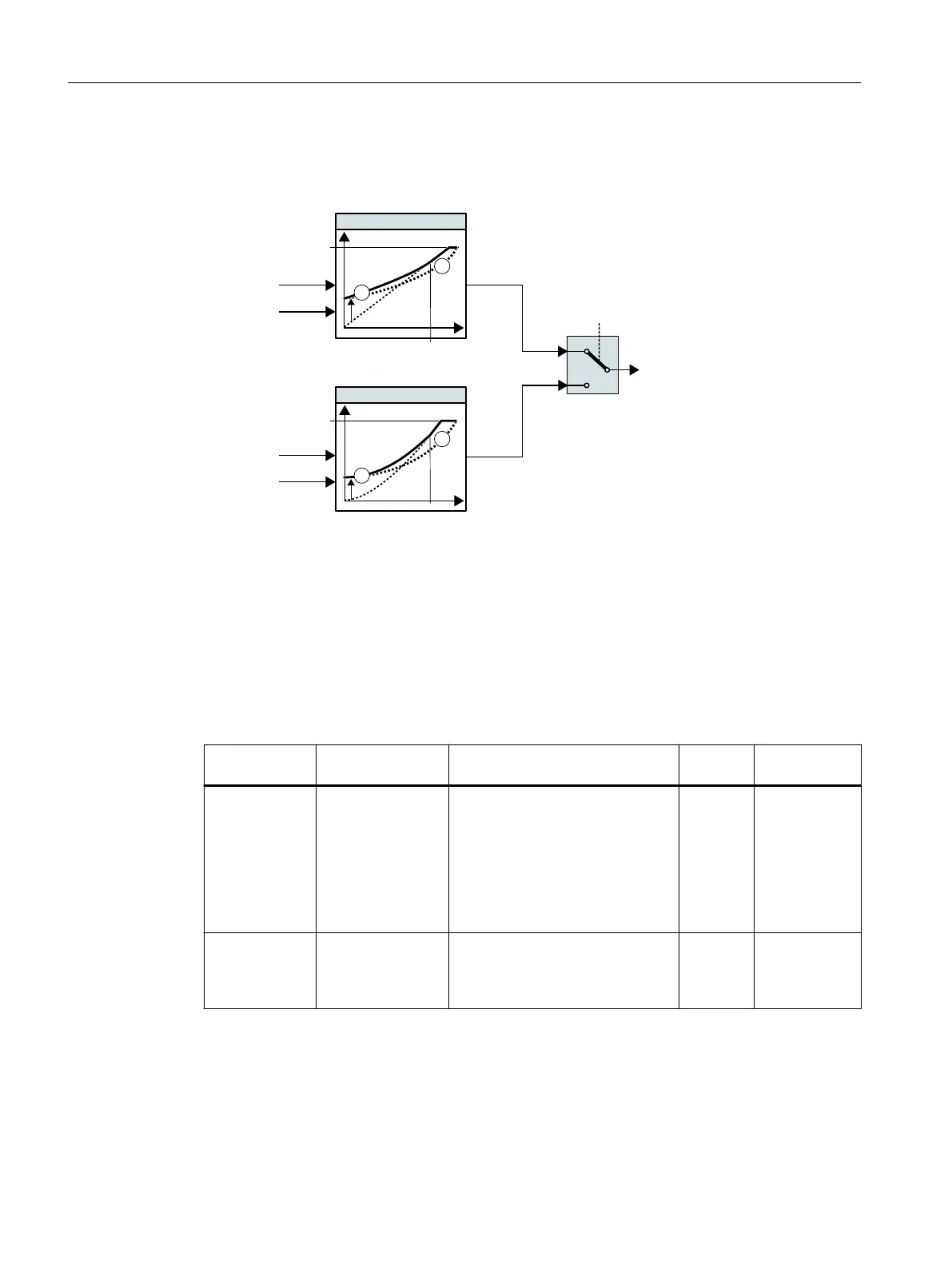

Figure8-50 Characteristics after selecting Standard Drive Control
The application class Standard Drive Control reduces the number of characteristics and
setting options:
• A linear and a parabolic characteristic are available.
• Selecting a technological application de󹪝nes the characteristics.
Table 8-63 Linear and parabolic characteristics
Requirement Application exam‐
ples
Remark Charac‐
teristic
Parameter
The required
torque is inde‐
pendent of the
speed
Conveyor belts,
roller conveyors,
chain conveyors,
eccentric worm
pumps, compres‐
sors, extruders,
centrifuges, agita‐
tors, mixers
- Linear p0501=0
The required
torque increa‐
ses with the
speed
Centrifugal
pumps, radial fans,
axial fans
Lower losses in the motor and con‐
verter than for a linear characteris‐
tic.
Parabol‐
ic
p0501=1
Advanced commissioning
8.20Motor control
SINAMICS G120C Converters
306 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
