Function description
Procedure

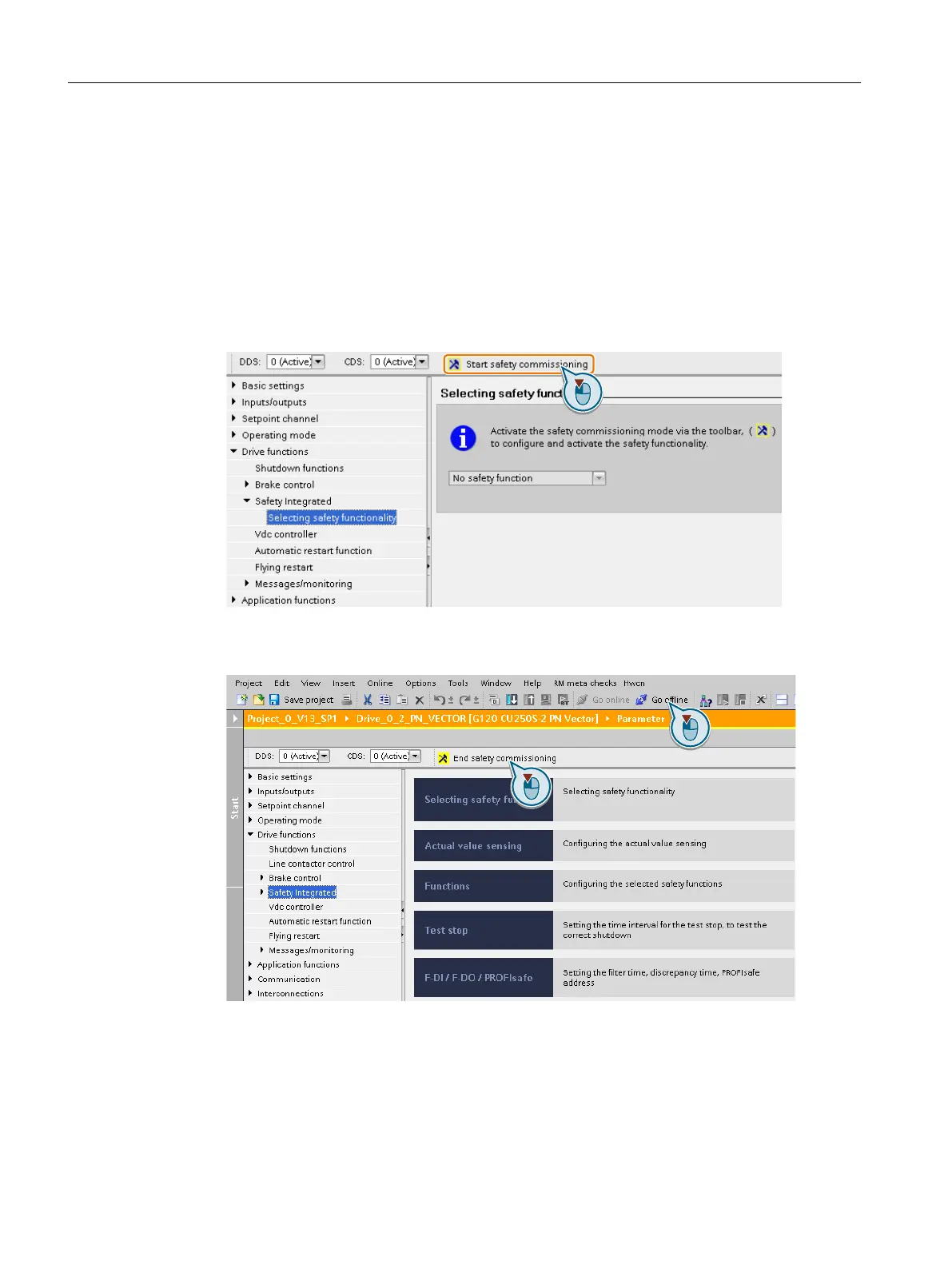

1. In Startdrive, open the project that matches the drive.
2. Select "Load to device".
3. Connect Startdrive online with the drive.
The converter signals faults after the download. Ignore these faults, as they will be
automatically acknowledged by the following steps.
4. Press the "Start safety commissioning" button.
5. Enter the password for the safety functions.
6. Press the "End safety commissioning" button.
7. Con󹪝rm the prompt for saving your settings (copy RAM to ROM).
8. Disconnect the online connection.
9. Switch o󹪜 the converter power supply.
10.Wait until all LEDs on the converter are dark.
Corrective maintenance
10.2Downloading the converter settings
SINAMICS G120C Converters
400 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
