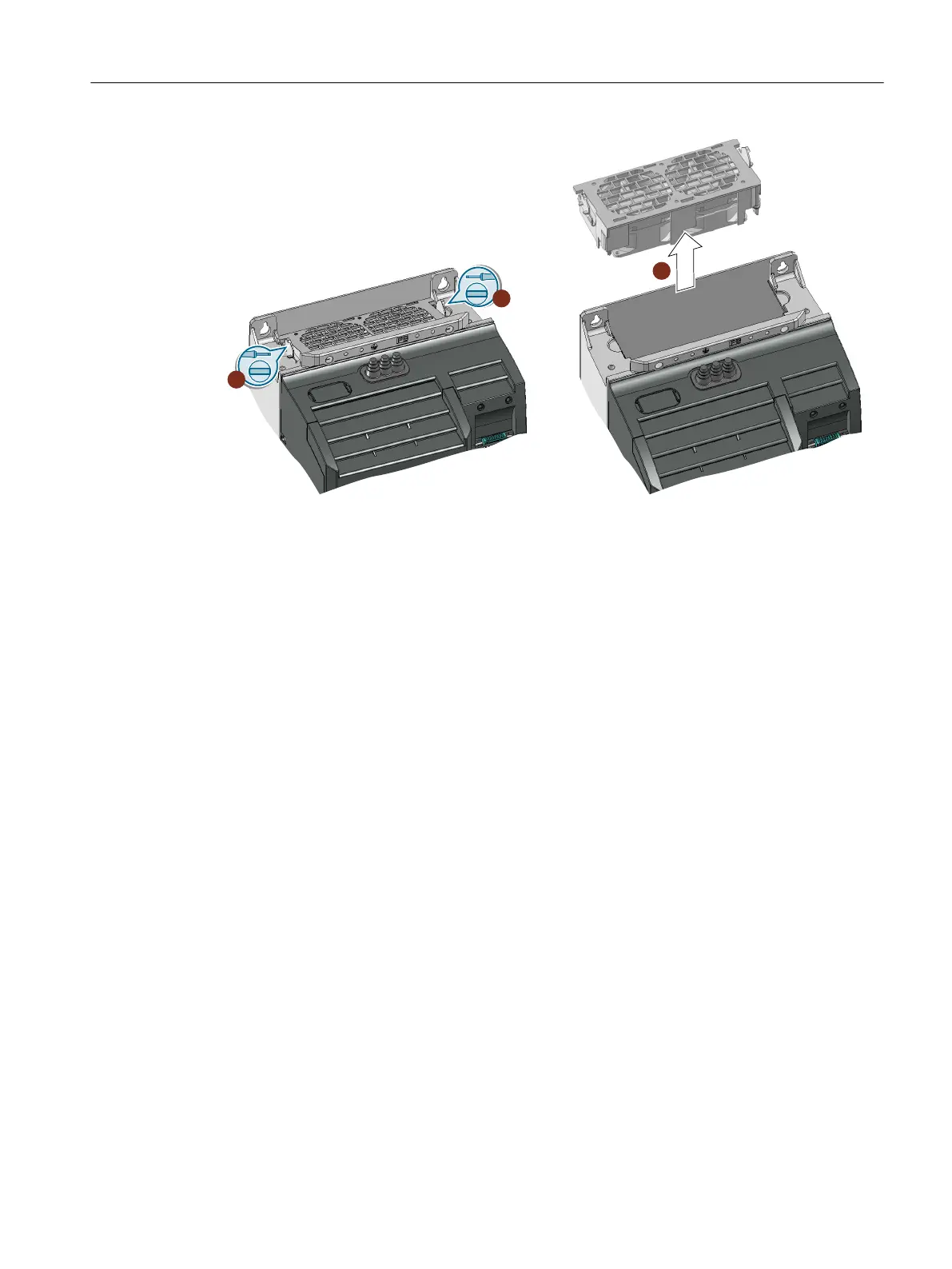

Figure10-2 Fan module on the upper side of the converter.
Procedure
1. Release the catches of the fan module using a screwdriver.
2. Withdraw the fan module from the converter. Use a screwdriver if necessary.
You have removed the fan module.
❒
Installing the fan module, FSD…FSF
Push the fan module into the converter until you can hear it audibly engage.
When inserting the fan module, you establish the electrical connection between the
converter and fan module.
Corrective maintenance
10.4Spare parts
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 407

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
