Siemens SINAMICS G120C DP

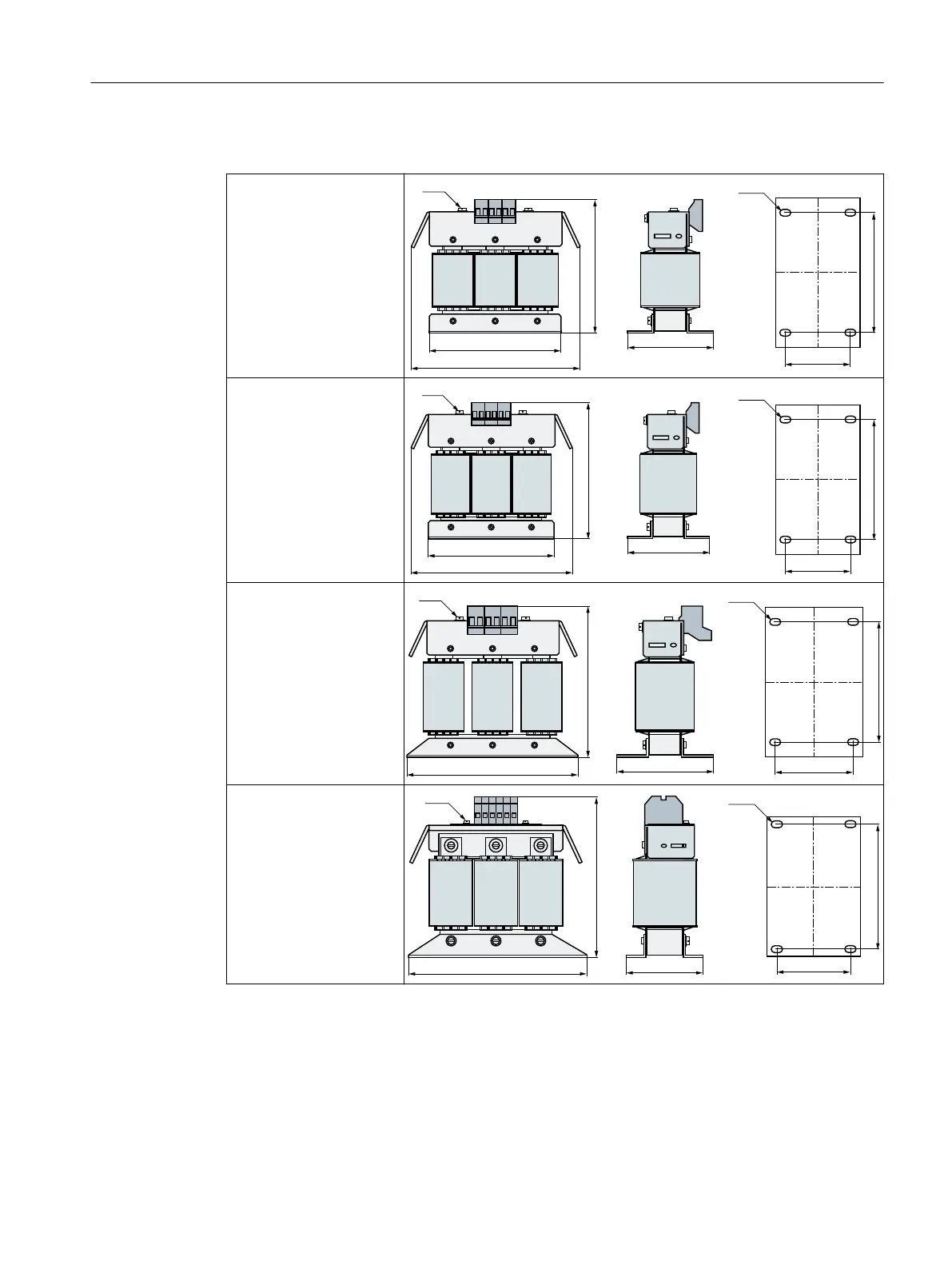

Dimensions [mm] and drilling patterns
Article number
6SL3202‑0AE16‑1CA0


Installation: M4 screws,
nuts and washers.
Tightening torque: 3Nm
[






0
Article number
6SL3202‑0AE18‑8CA0


Installation: M4 screws,
nuts and washers.
Tightening torque: 3Nm
[






0
Article number
6SL3202‑0AE21‑8CA0


Installation: M5 screws,
nuts and washers.
Tightening torque: 6Nm
[





0
Article number
6SL3202‑0AE23‑8CA0


Installation: M5 screws,
nuts and washers.
Tightening torque: 6Nm

[




0
Installing
4.6Mounting the output reactor
