Siemens SINAMICS G120C DP User Manual

Do not cover the ventilation openings of the braking resistor.
Dimensions and drilling patterns
+¸KH
%UHLWH
7LHIH
+
%

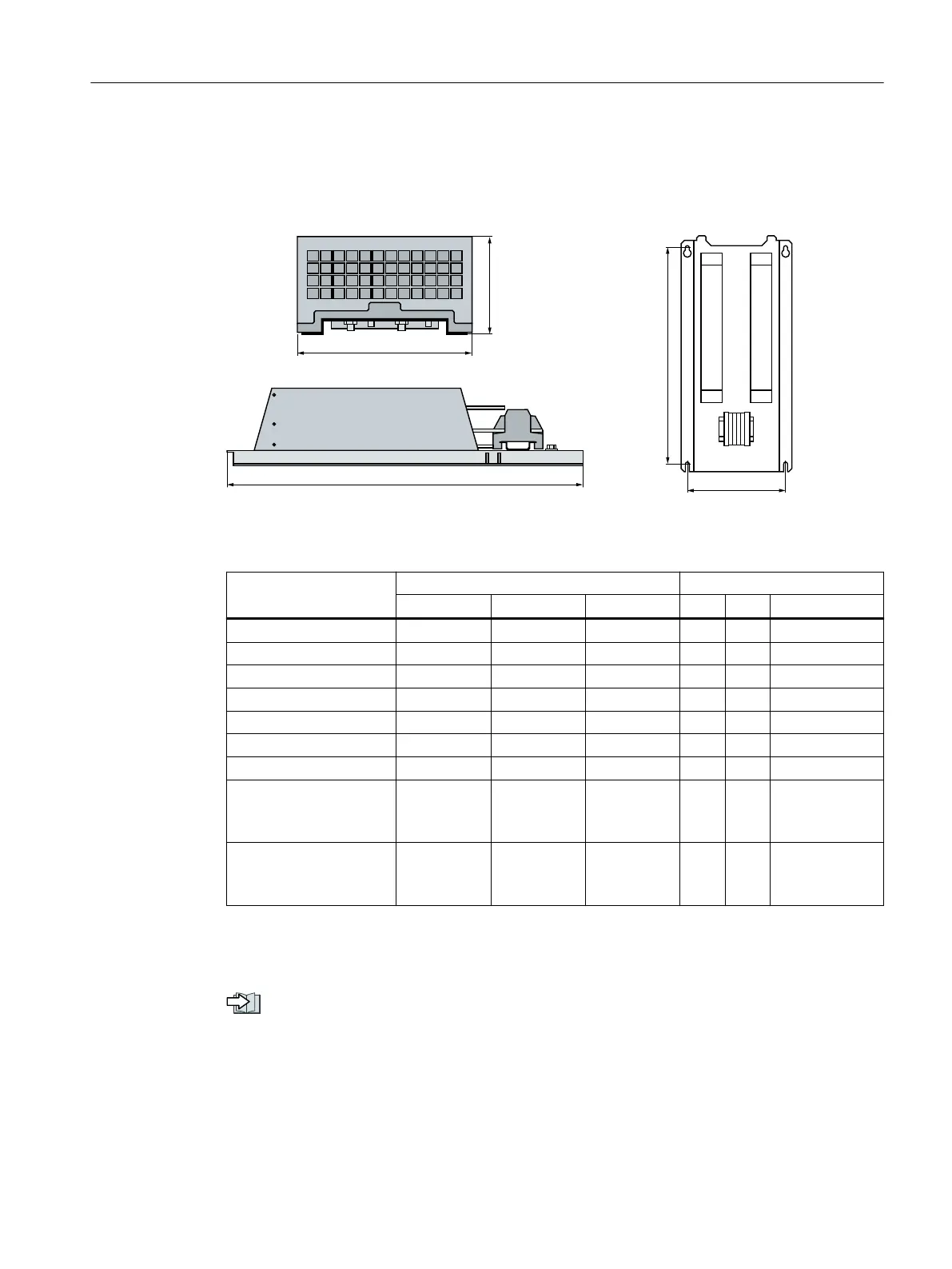

Figure4-24 Dimensions of the braking resistor
Table 4-5 Dimensions [mm]
Article number Total dimensions Drilling dimensions
Width Height Depth W H Fixing
6SL3201-0BE14-3AA0 105 295 100 72 266 M4 / 3Nm
6SL3201-0BE21-0AA0 105 345 100 72 316 M4 / 3Nm
6SL3201-0BE21-8AA0 175 345 100 142 316 M4 / 3Nm
6SL3201-0BE23-8AA0 250 490 140 217 460 M5 / 6 Nm
JJY:023422620001 220 470 180 187 430 M5 / 6 Nm
JJY:023424020001 220 610 180 187 570 M5 / 6 Nm
JJY:023434020001 350 630 180 317 570 M5 / 6 Nm
JJY:023454020001
1)
JJY:023422620001 ∥
JJY:023434020001
220
350
470
630
180
180
187
317
430
570
M5 / 6 Nm
M5 / 6 Nm
JJY:023464020001
1)
JJY:023434020001 ∥
JJY:023434020001
350
350
630
630
180
180
317
317
570
570
M5 / 6 Nm
M5 / 6 Nm
Mount the braking resistor using screws, nuts and washers.
1)
The article number contains two braking resistors, which must be switched in parallel
Assignment of braking resistor to converter:
Optional components (Page34)
Installing
4.8Mounting the braking resistor
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 63

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
