• For converters with rated input currents > 160 A referred to LO, use a Siemens modular RCCB
device (MRCD type B 5SV8111-4KK) with a current transformer (5SV870.-2K), a circuit
breaker (series 3VA1) and a trip element (3VA9988-0BL30).
0RGXODUUHVLGXDO
FXUUHQWSURWHFWLYH
GHYLFH05&'
0HDVXULQJFXUUHQW
WUDQVIRUPHU
&LUFXLWEUHDNHU
9$
7ULSHOHPHQW
&LUFXLWEUHDNHU
59
2WKHUb9ORDGV
7RWKHFRQYHUWHU
,! ,!,!
/
3(
/
/
,! ,!,!
8
$
//

/
$


6,723$

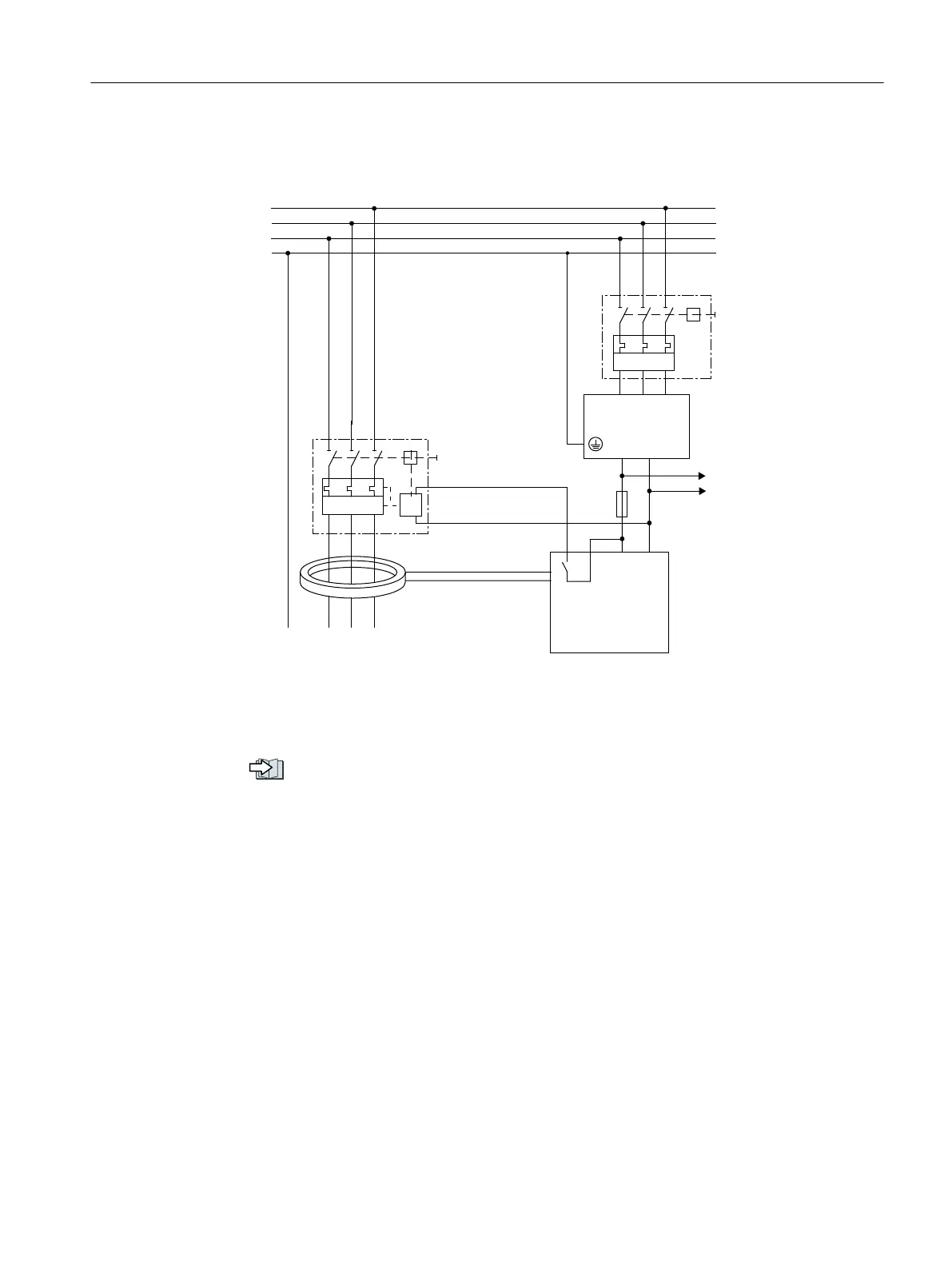

Figure4-32 MRCD
• A dedicated RCD is used for every converter.
• The motor cables are shorter than 50 m (164 ft) shielded, or 100 m (328 ft) unshielded.
Additional information about motor cables:
Maximum permissible motor cable length (Page80)
Installing
4.9Connect the line supply, motor and braking resistor
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 79

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
