→ If you use the internal 10 V power supply, you must connect AI0- or AI1- to GND.
Further wiring options of digital inputs for FSD…FSF
*1'
H[W
9
H[W
 '2326
 '21(*
 ',&20









9RXW
 *1'
 ',&20
 ',
 ',
 ',
 ',
 ',
 ',
'212
 '2&20


'21&
;
;
;
;

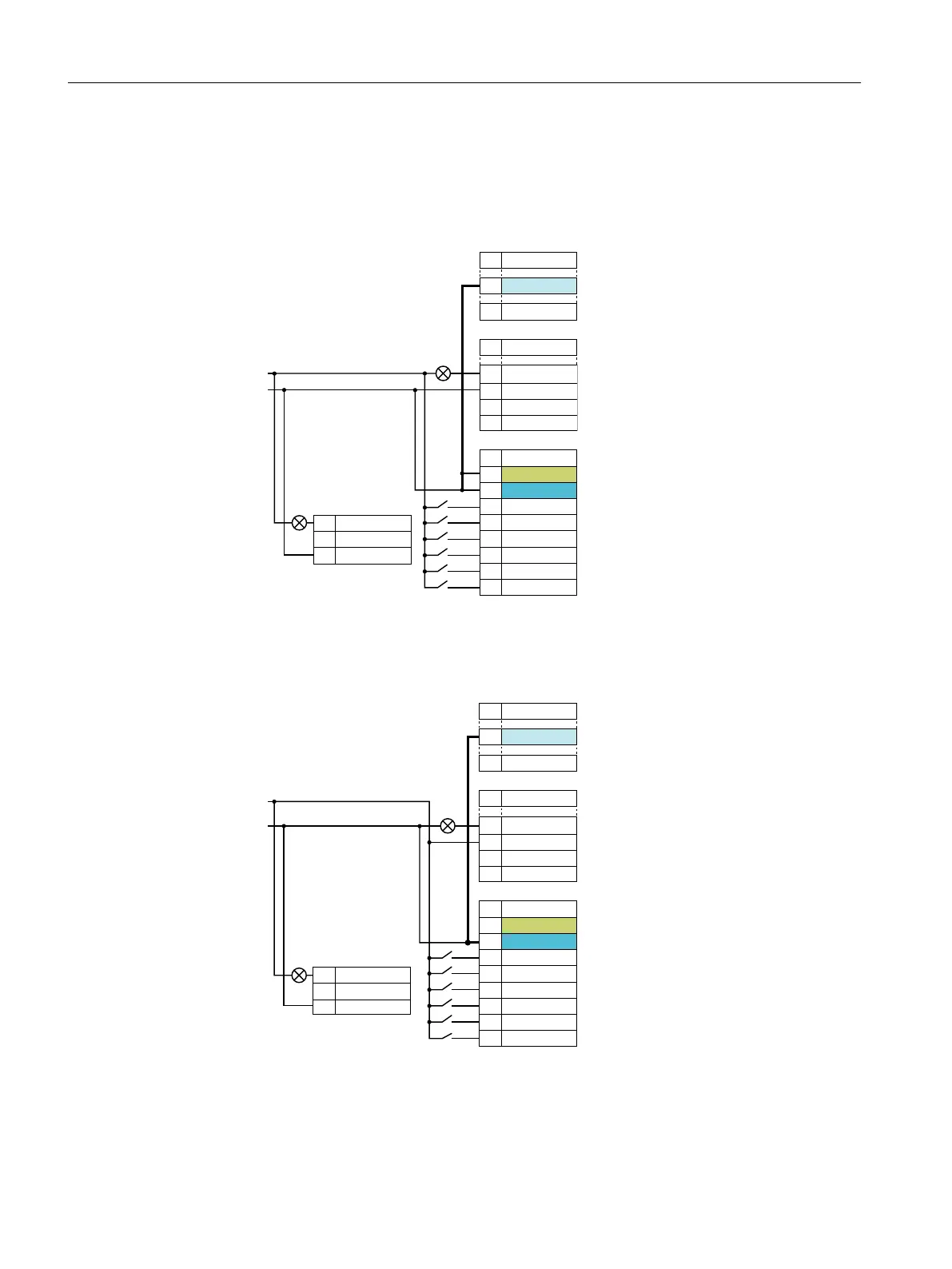

Connection of contacts switching to P potential with an
external power source


If you wish to connect the external
and the internal converter power sup‐
ply voltages with one another, then
you must connect "GND" with termi‐
nals 34 and 69 at the terminals.


*1'
H[W
9
H[W
 '2326
 '21(*



9RXW
 *1'
 ',&20
 ',
 ',
 ',
 ',
 ',
 ',
'212
 '2&20


'21&
;
;

',&20




;


;
Connection of contacts switching to N potential with an
external power source


Connect terminals 69 and 34 at the
terminals.

Installing
4.10Connecting the interfaces for the converter control
SINAMICS G120C Converters
88 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
