Siemens SINAMICS G120C DP User Manual

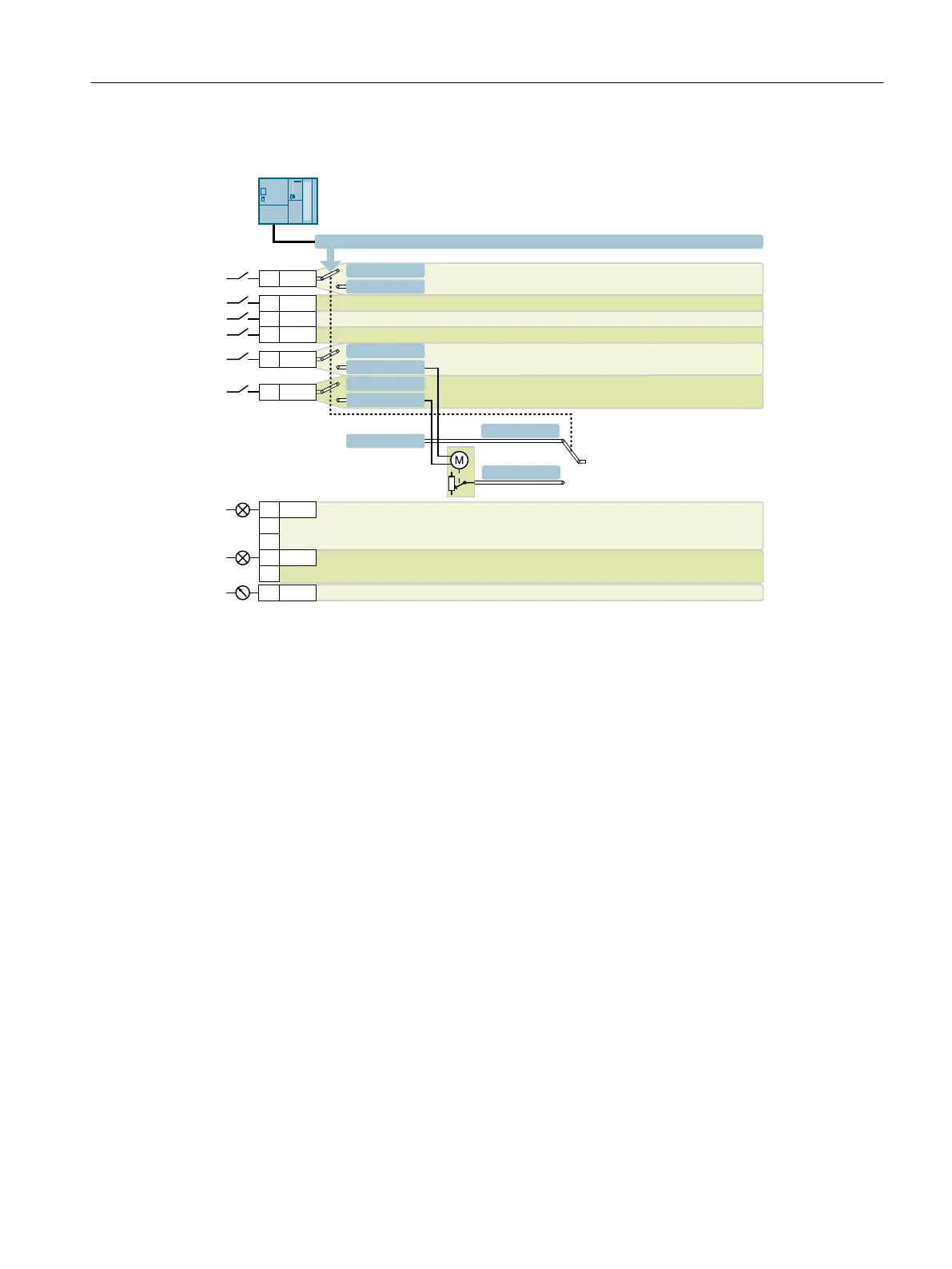

Default setting 14: "Process industry with 󹪝eldbus"
([WHUQDOIDXOW
1RIXQFWLRQ
0RWRUL]HGSRWHQWLRPHWHUORZHU
1RIXQFWLRQ
1RIXQFWLRQ
0RWRUL]HGSRWHQWLRPHWHU023UDLVH
023
6SHHGDFWXDOYDOXH
$ODUP
$FNQRZOHGJHIDXOW
212))
&RQWUROYLD352),GULYHWHOHJUDP
1RIXQFWLRQ
)DXOW
6SHHGVHWSRLQW
3=' 
3=' 
3=' 
3='
3=' 
3=' 
3=' 
3=' 
3=' 
 $2
 ',
 ',
 ',
 ',
 ',
 ',
 '2



'2

DO 0: p0730, DO1: p0731 AO 0: p0771[0] DI0: r0722.0, …, DI5: r0722.5
Motorized potentiometer setpoint after ramp-function generator: r1050
Speed setpoint (main setpoint): p1070[0] = 2050[1], p1070[1] = 1050
Switch controller via PZD01, bit 15: p0810=r2090.15
Designation in the BOP-2: Proc Fb
Installing
4.10Connecting the interfaces for the converter control
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 97

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
