Siemens SINAMICS S120 Combi - Installing an S120 Combi Power Module

S120 Combi Power Modules
4.7 Installation
106
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
4.7.3
Installing an S120 Combi Power Module
Installation steps
1. Mount the self-clinching flush head studs M6.
2. Install the S120 Combi Power Module.
3. Firstly tighten the M6 nuts by hand (0.5 Nm).
4. Tighten the nuts in the specified sequence (1 to 4) with 10 Nm.

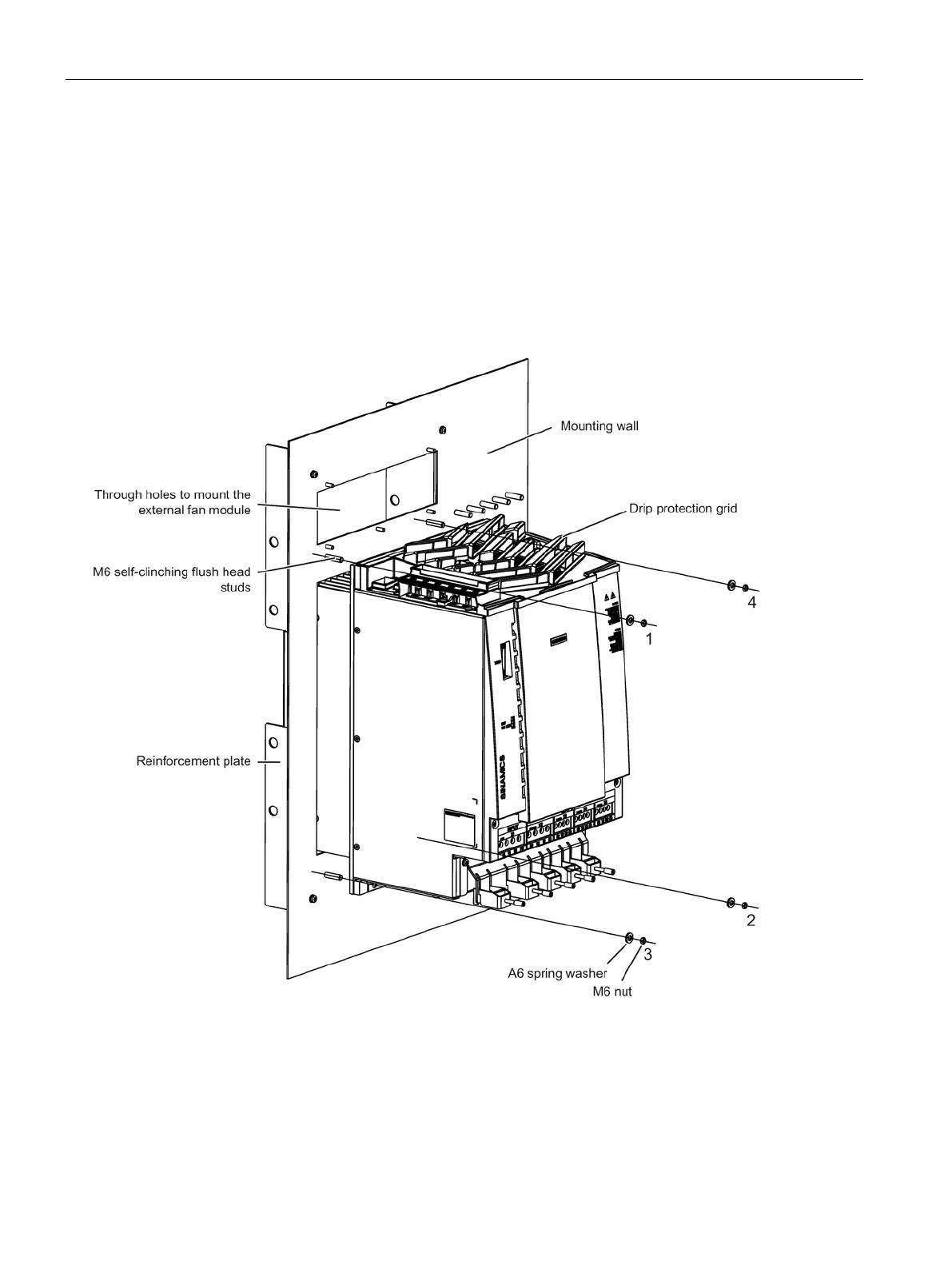

Figure 4-19 Installing an S120 Combi Power Module
