Encoder system connection

10.4 Sensor Module External SME25

SINAMICS S120 Combi

Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5

275

10.4.4

Installation

①

Contact surface

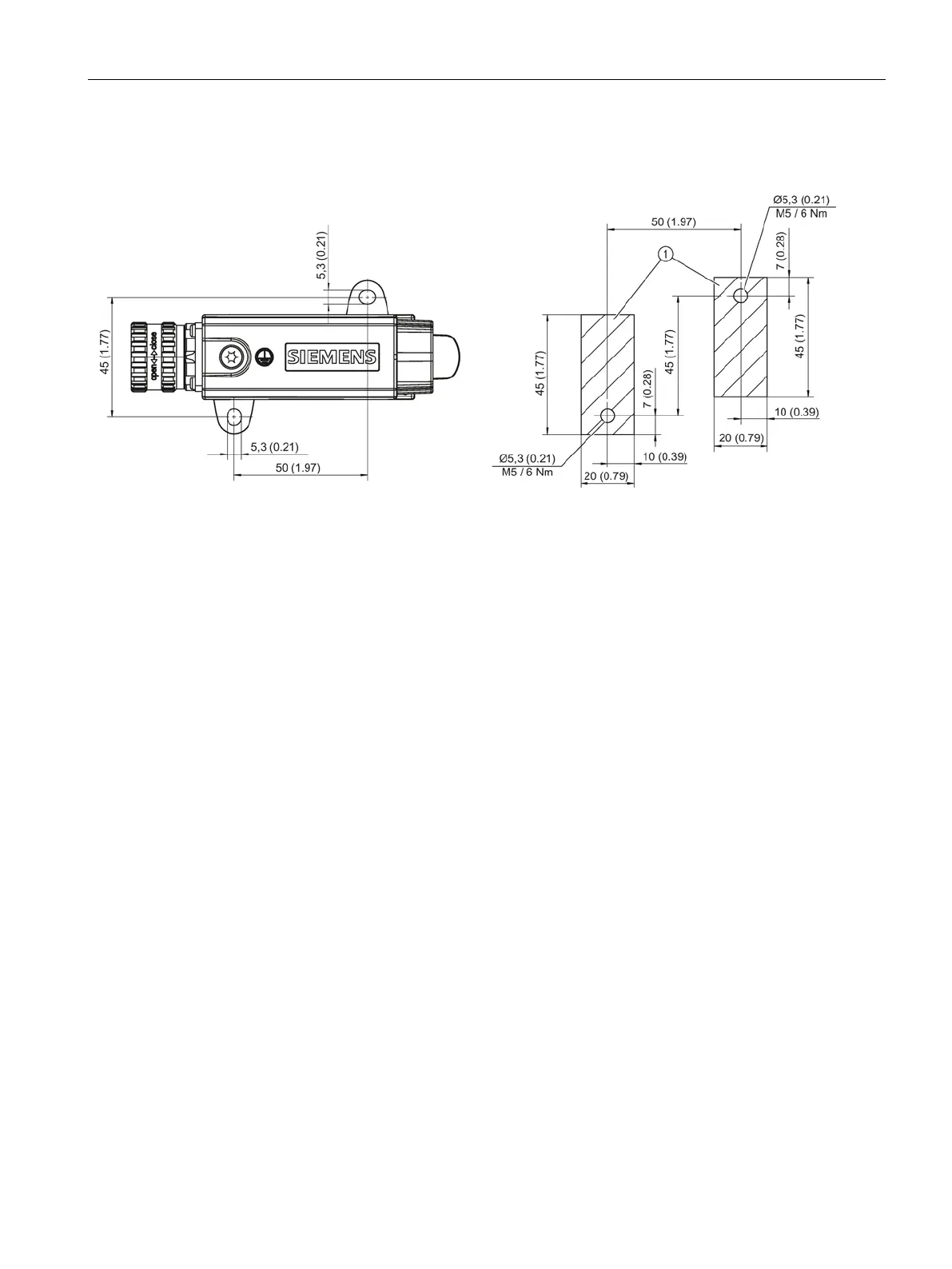

Figure 10-21 Drilling pattern for installing the SME20/SME25

Installation

1. Place the drilling pattern on the mounting surface. Make sure that the contact surface is

bare, unpainted metal.

2. Drill two holes with Ø 5.3 or M5 threaded holes according to the drilling pattern.

3. Fix the Sensor Module to the mounting surface. The tightening torque is 6 Nm.
