Siemens SINAMICS S120 Combi Equipment Manual

DC link components
7.1 Control Supply Module CSM
166
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5

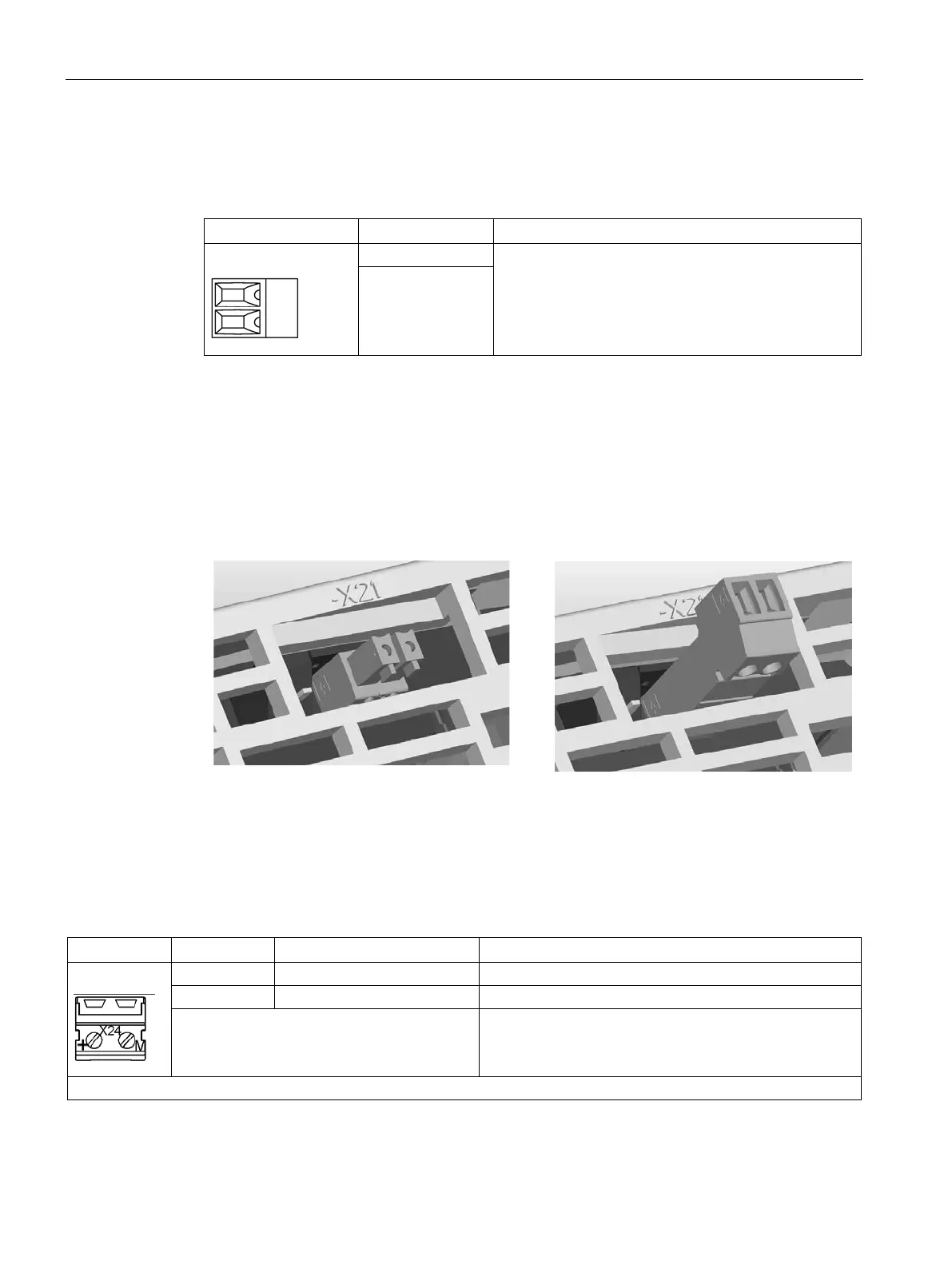

7.1.3.3
X21 signaling contact
Table 7- 2 X21 signaling contact
Terminal
Technical data
1
Voltage: 24 V DC
Max. load current: 0.5 A (ohmic load)
Type: Screw terminal 2 (Page 307)
Max. connectable cross-section 1.5 mm
2
Tightening torque: 0.22 … 0.25 Nm
2
The 2-pole terminal connector for the signaling contact is included in the Completion Kit provided.
The signaling contact can be wired to a digital input (DI) of the Control Unit to indicate the
failure of a Control Supply Module.
The signaling contact operates as an isolated NO contact. When the switch is closed, the
Control Supply Module is "OK" and provides the output voltage. The switch opens in the
event of a fault "Not OK" – when the overtemperature condition is still present, after a pre-
warning, wire breakage, short-circuit etc. The Control Supply Module is correspondingly
switched off.
Signaling contact without terminal connector
in the delivery condition
Signaling contact, complete with t
erminal
connector
7.1.3.4
X24 24 V terminal adapter
Table 7- 3 X24 24 V terminal adapter
Terminal
Designation
Technical data
+
24 V power supply
Supply voltage 24 ... 28.8 V DC
M
Ground
Electronics ground
Type: Screw terminal 5 (Page 307)
Max. connectable cross-section: 6 mm
2
Tightening torque: 1.5 … 1.8 Nm
The 24 V terminal adapter is included in the scope of supply.
