Line-side power components
3.6 Line filters
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
47
3.6.3.2
Line/load connection
Table 3- 2 Line filter connection
Article number
6SL3000-0BE21-6DA.
Rated infeed power
10 kW, 16 kW and 20 kW
Line connection L1, L2, L3 Type: Screw terminal 6 (Page 307)
Max. connectable cross-section: 10 mm
2
Tightening torque: 1.5 … 1.8 Nm
Load connection L1', L2', L3'
(U, V, W)
Type: Screw terminal 6 (Page 307)
Max. connectable cross-section: 10 mm
2
Tightening torque: 1.5 … 1.8 Nm
PE connection Type: Grounding studs M6
tightening torque: 6 Nm
Note
The line filter 6SL3000
-0BE21-6DAx can be used for all S120 Combi Power Modules.
3.6.4

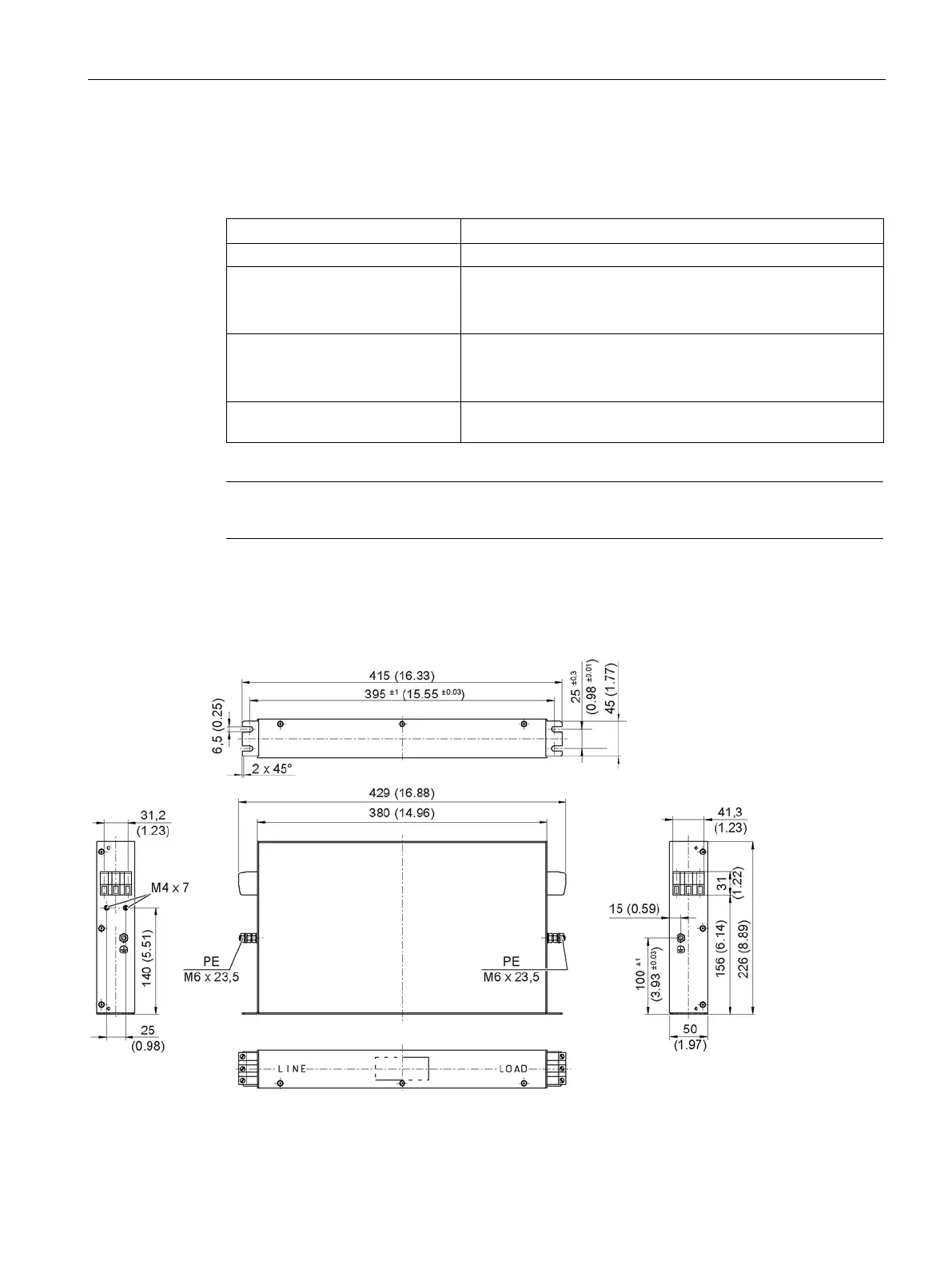

Dimension drawing
