Encoder system connection
10.4 Sensor Module External SME25
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
273
10.4.2.4
Encoder system interface

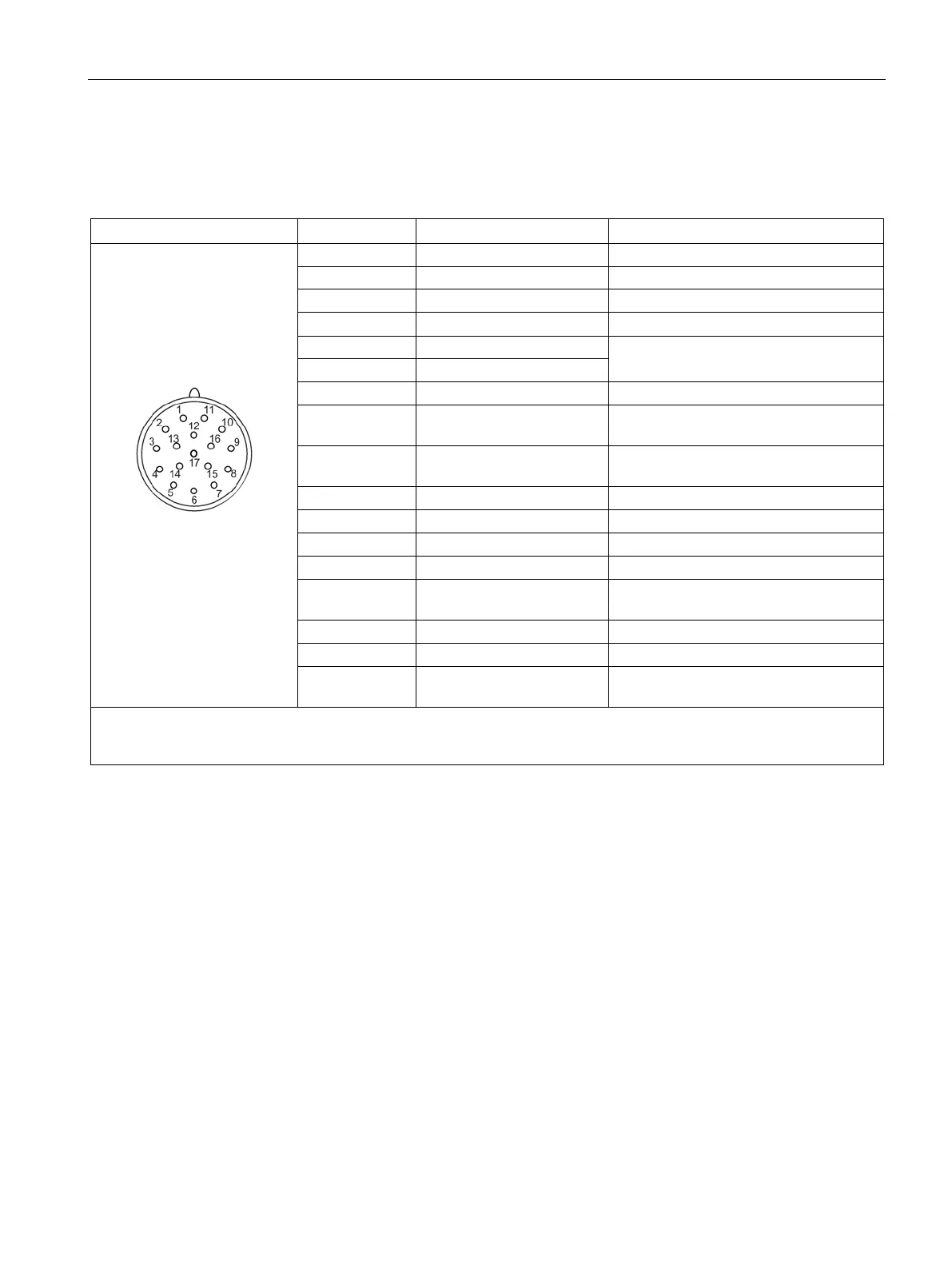

Table 10- 19 Encoder system interface SME25
Pin
Signal name
Technical specifications
1
P5
Encoder power supply
2
Reserved, do not use
3
Reserved, do not use
4 M Ground for encoder power supply
5
+Temp
Temperature sensor connection
KTY84-1C130 or PTC
6
-Temp
7
P5
Encoder power supply
8 Clock Clock, EnDat interface,
SSI clock
1)
9 Clock* Inverse clock, EnDat interface,
Inverse SSI clock
1)
10
M
Ground for encoder power supply
11
Enclosure potential
12
B
Incremental signal B
13
B*
Inverse incremental signal B
14 Data Data, EnDat interface,
SSI data
1)
15
A
Incremental signal A
16
A*
Inverse incremental signal A
17 Data* Inverse data EnDat interface,
Inverse SSI data
1)
Blanking plate for encoder system interface: Pöppelmann GmbH & Co. KG, Lohne,
Article number: GPN 300 F211
connector kits, 17-pin, Article number: 6FX2003-0SA17
