Siemens SINAMICS S120 Combi Equipment Manual

Motor Modules Booksize Compact as expansion axes
6.7 Installation
154
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
6.7
Installation
Installing a Motor Module Booksize Compact
①
Mounting wall
②
M6 x 16 screw
Hex combination screw or hex screw with spring washer and plain washer

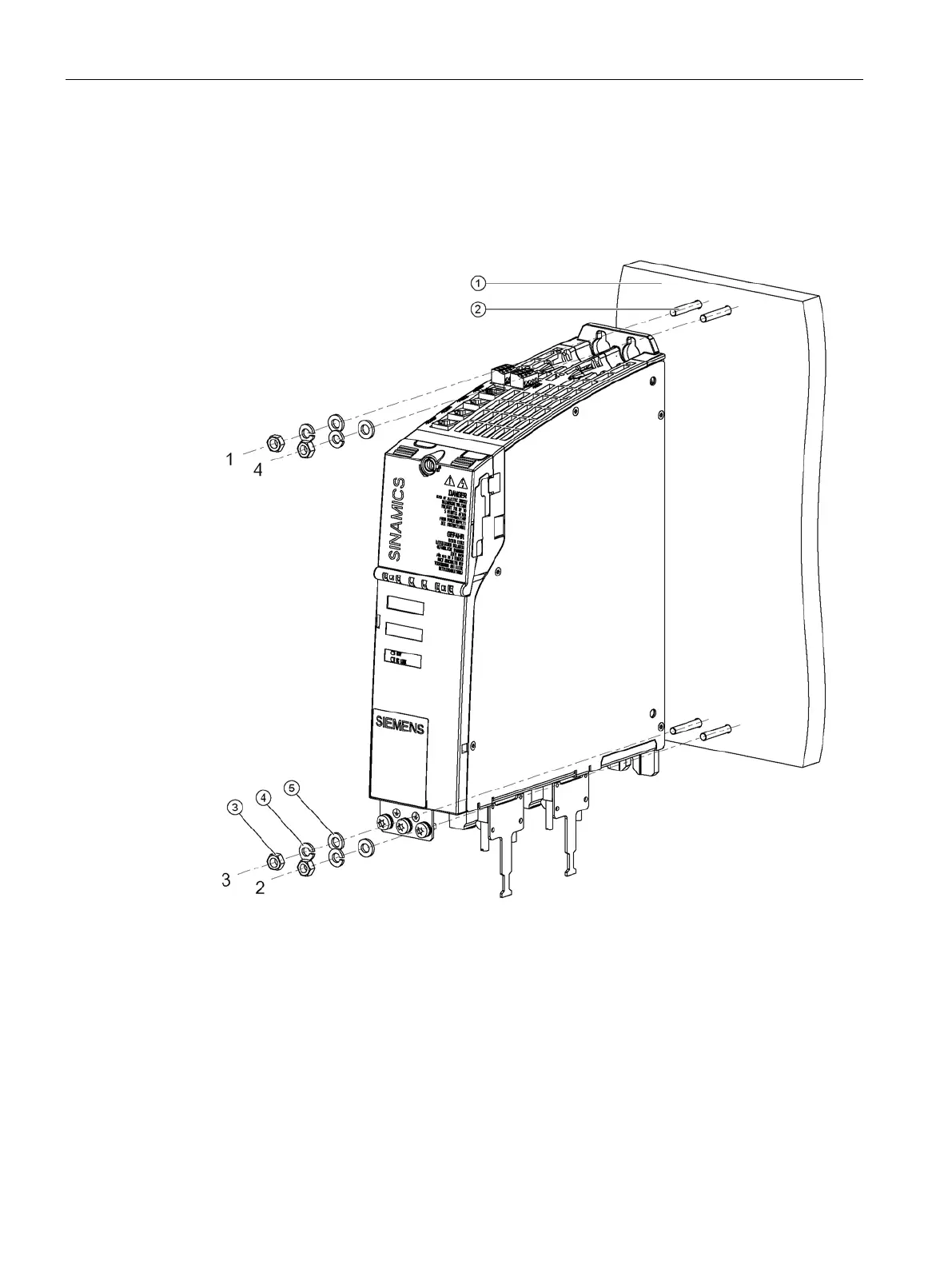

Figure 6-7 Installing a Motor Module Booksize Compact with internal air cooling
Tightening torques
:
● Initially, tighten by hand (0.5 Nm)
● Then tighten with 6 Nm (in the specific sequence 1 to 4)
