Additional system components
9.2 DRIVE-CLiQ Hub Module DMC20
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
227
9.2.4
Dimension drawing

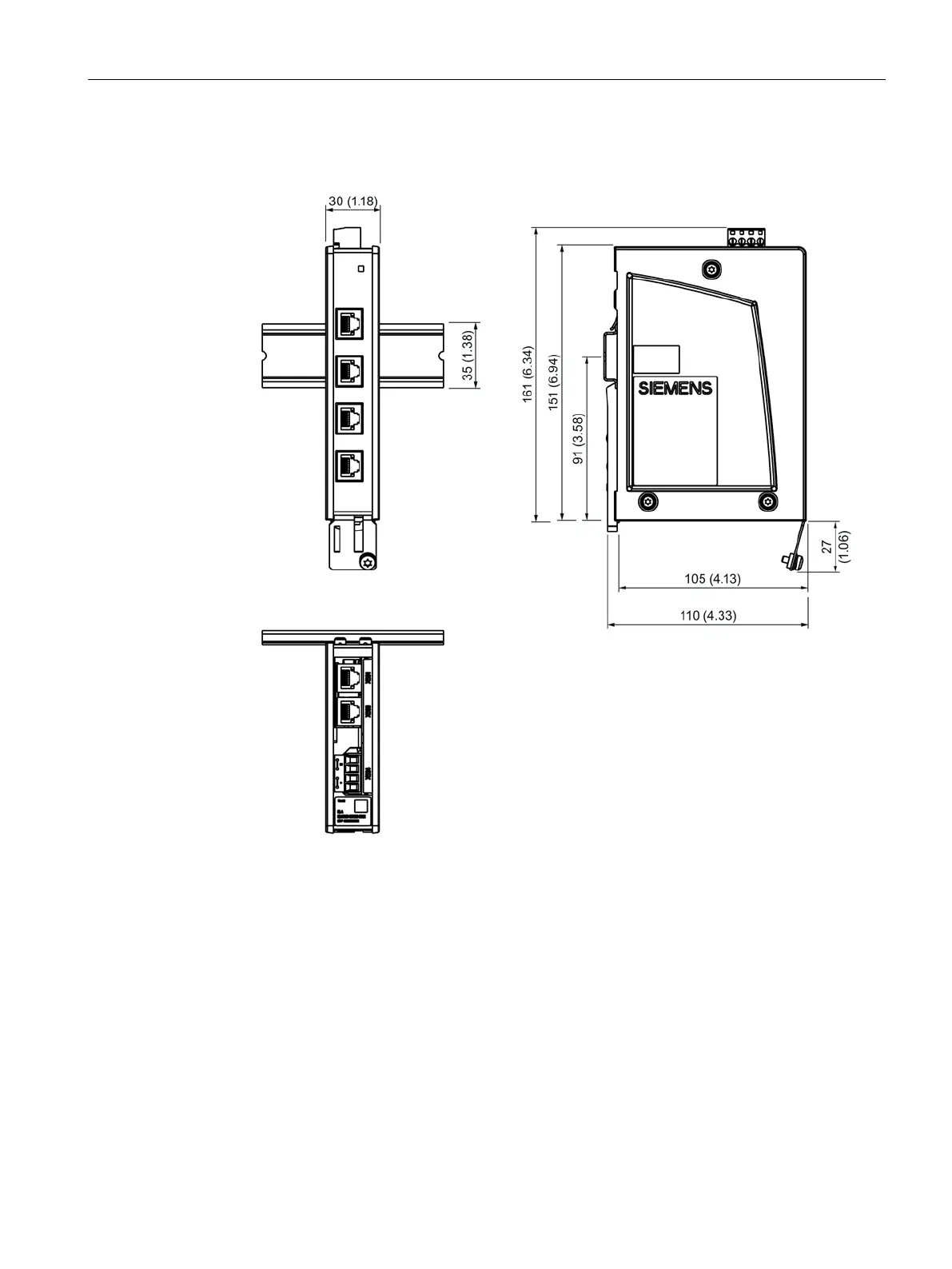

Figure 9-7 Dimension drawing of the DRIVE-CLiQ Hub Module DMC20, all data in mm and (inches)
