3.8 Line connection versions
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
55
3.8
Line connection versions
3.8.1
Ways of connecting the line supply
The following line connection versions are possible:
● Line connection components to be directly connected to the line supply
● Operating line connection components via an autotransformer
● Operating line connection components via an isolating transformer

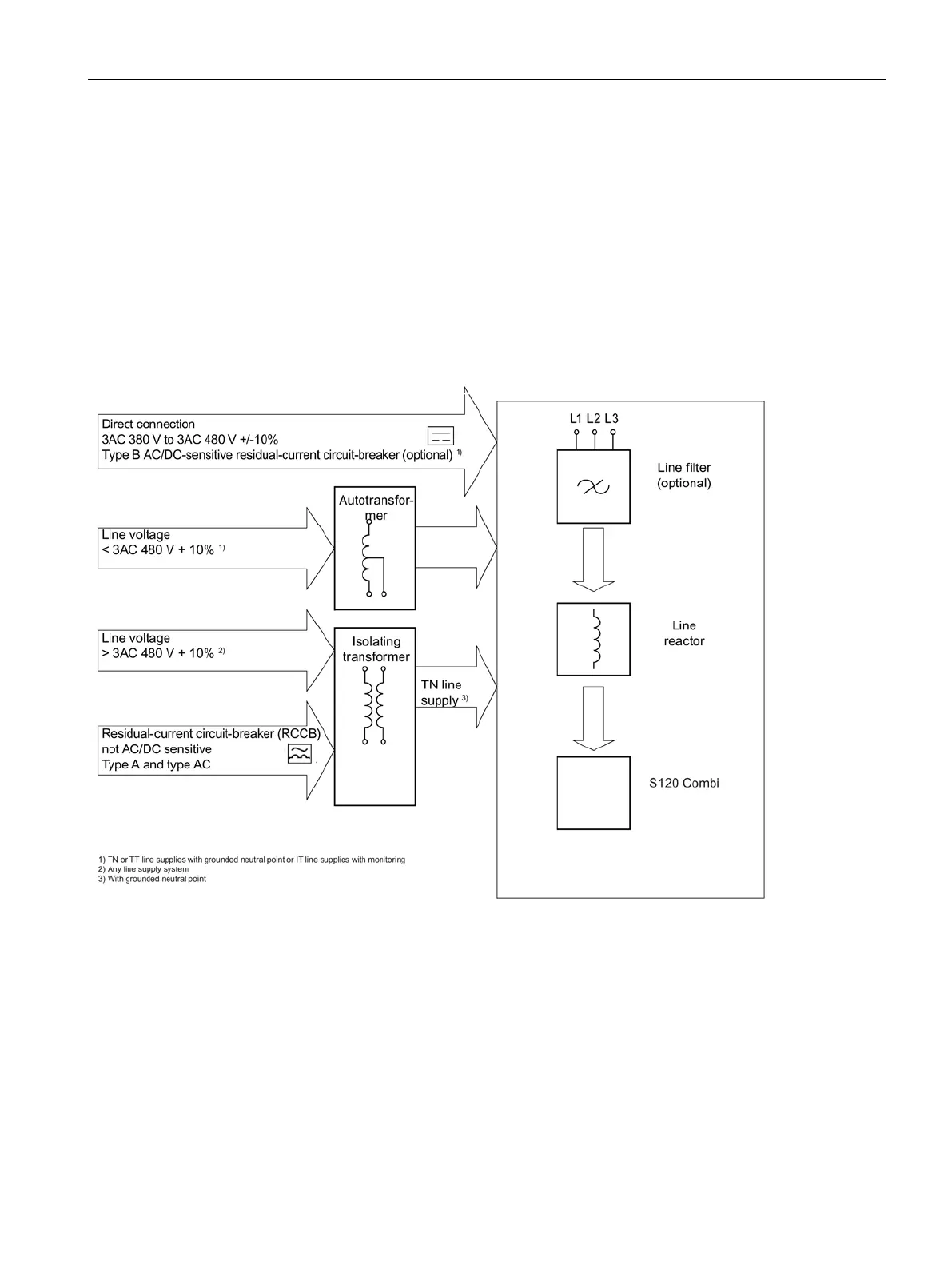

Figure 3-9 Overview of line connection versions
