Siemens SINAMICS S120 Combi Equipment Manual

Motor Modules Booksize Compact as expansion axes
6.6 Dimension drawings
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
151
6.6
Dimension drawings

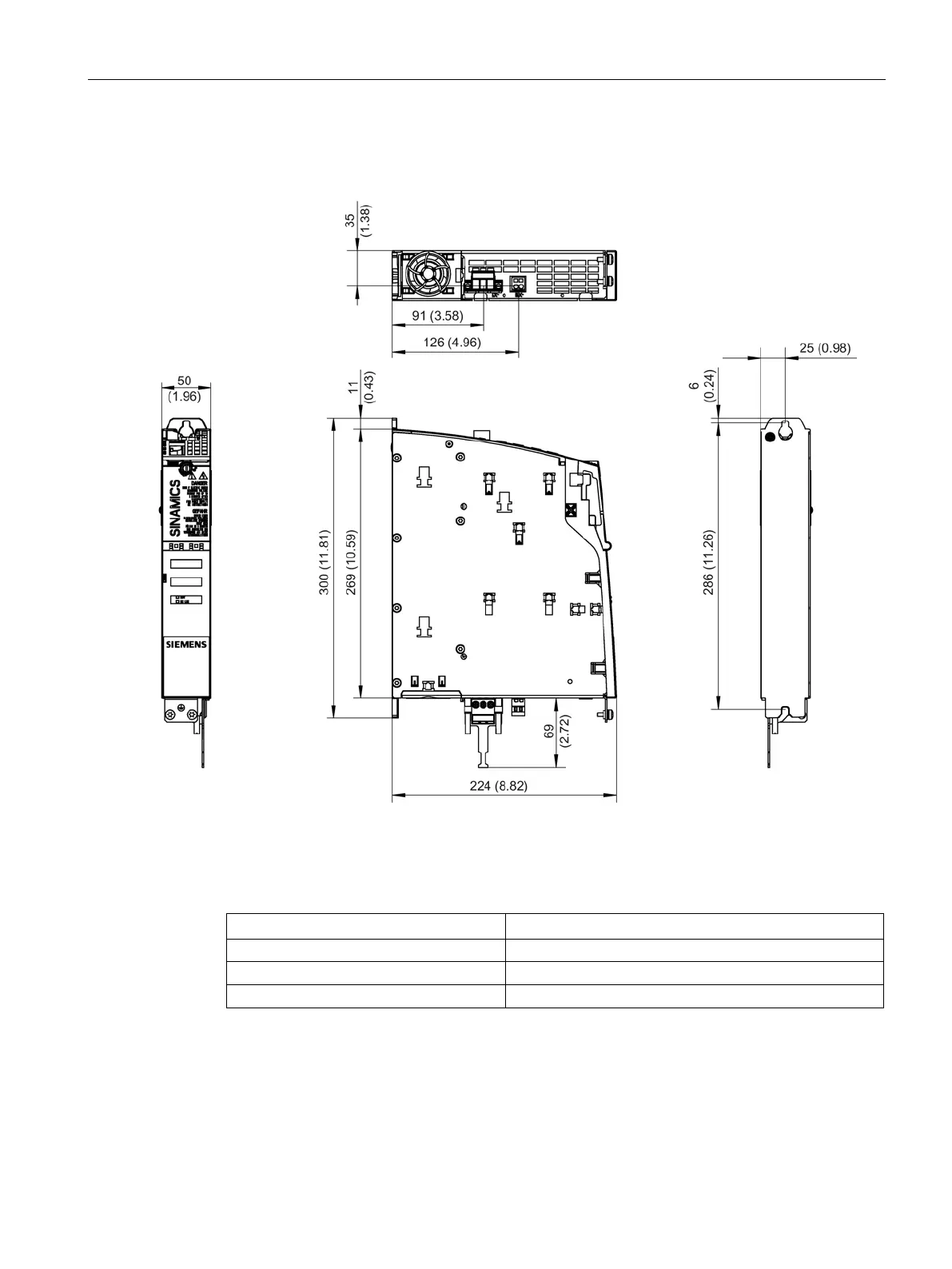

Figure 6-4 Dimension drawing of 3 A, 5 A, and 9 A Motor Modules Booksize Compact, all dimensions in mm and
(inches); example: 5 A Single Motor Module
Table 6- 6 Motor Modules Booksize Compact 3 A, 5 A, and 9 A
Motor Module
Article No.
Single Motor Module 3 A
6SL3420-1TE13-0AA.
Single Motor Module 5 A 6SL3420-1TE15-0AA.
Single Motor Module 9 A
6SL3420-1TE21-0AA.
