Motor Modules Booksize Compact as expansion axes
6.6 Dimension drawings
152
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5

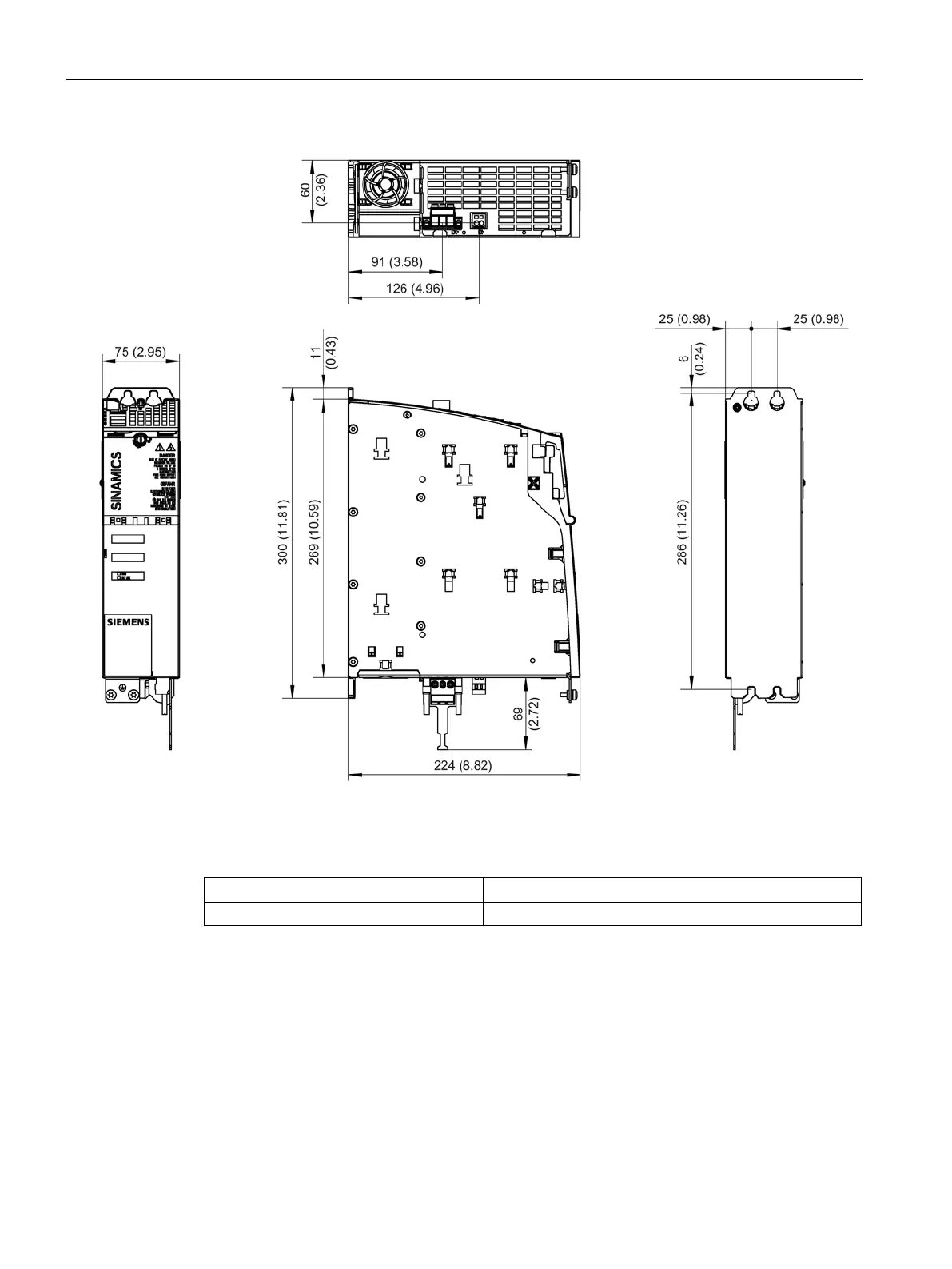

Figure 6-5 Dimension drawing of 18 A Motor Module Booksize Compact, all dimensions in mm and (inches)
Table 6- 7 Motor Module Booksize Compact 18 A
Motor Module
Article No.
Single Motor Module 18 A
6SL3420-1TE21-8AA.
