S120 Combi Power Modules
4.7 Installation
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
107
4.7.4
Assembling a drip protection grid
Drip protection grid 6SL3161-3DP00-0AA0 can be mounted on S120 Combi Power Modules
in order to prevent liquids from dripping into the module.
For the S120 Combi Power Module 6SL3111-4VE21-0EA0 the drip protection grid is
provided with the unit when shipped from the factory. For all other S120 Combi Power
Modules, it can be ordered as replacement part and retrofitted.
The drip protection grid is directly attached to the S120 Combi Power Modules.

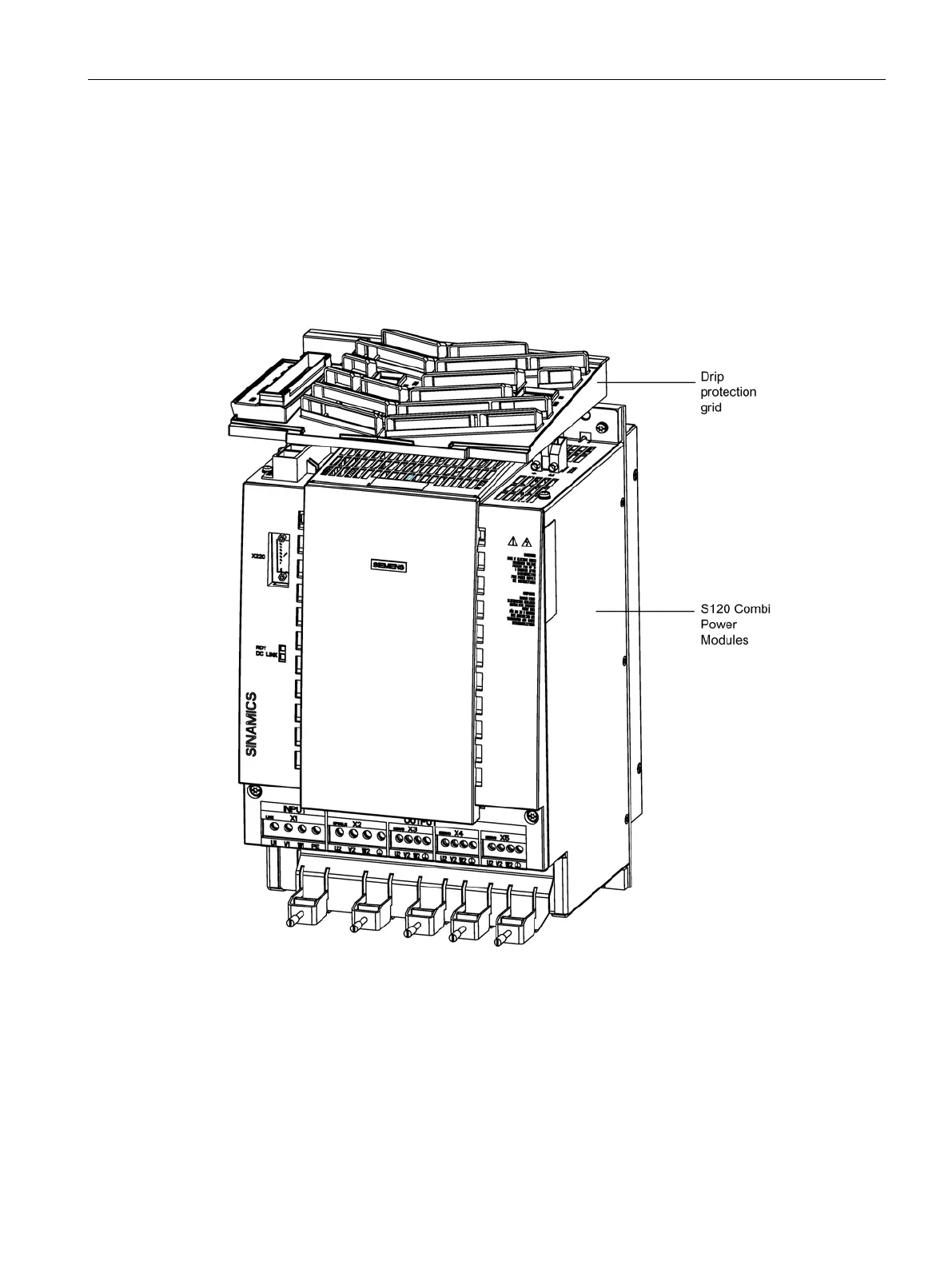

Figure 4-20 S120 Combi Power Modules with drip protection grid
