7.1 Control Supply Module CSM
174
SINAMICS S120 Combi
Manual, (GH9), 07/2016, 6SL3097-4AV00-0BP5
6SL3100-1DE22-0AA1
Unit
Value
Cooling method
Internal air cooling
Weight
kg 4.8
1)
Above 40° C, a linear derating of the output current above a 26 V output voltage and higher must be observed
2)
When using circuit breakers for protection, UL approval is only possible in TN/TT line systems with grounded neutral
point. Conventional fuses are required for UL approval in line supplies with grounded line conductor.
7.1.8.1
Characteristics
Derating characteristic
For ambient temperatures > 40 °C, a linear derating for the output current must be observed
as of 26 output voltage.

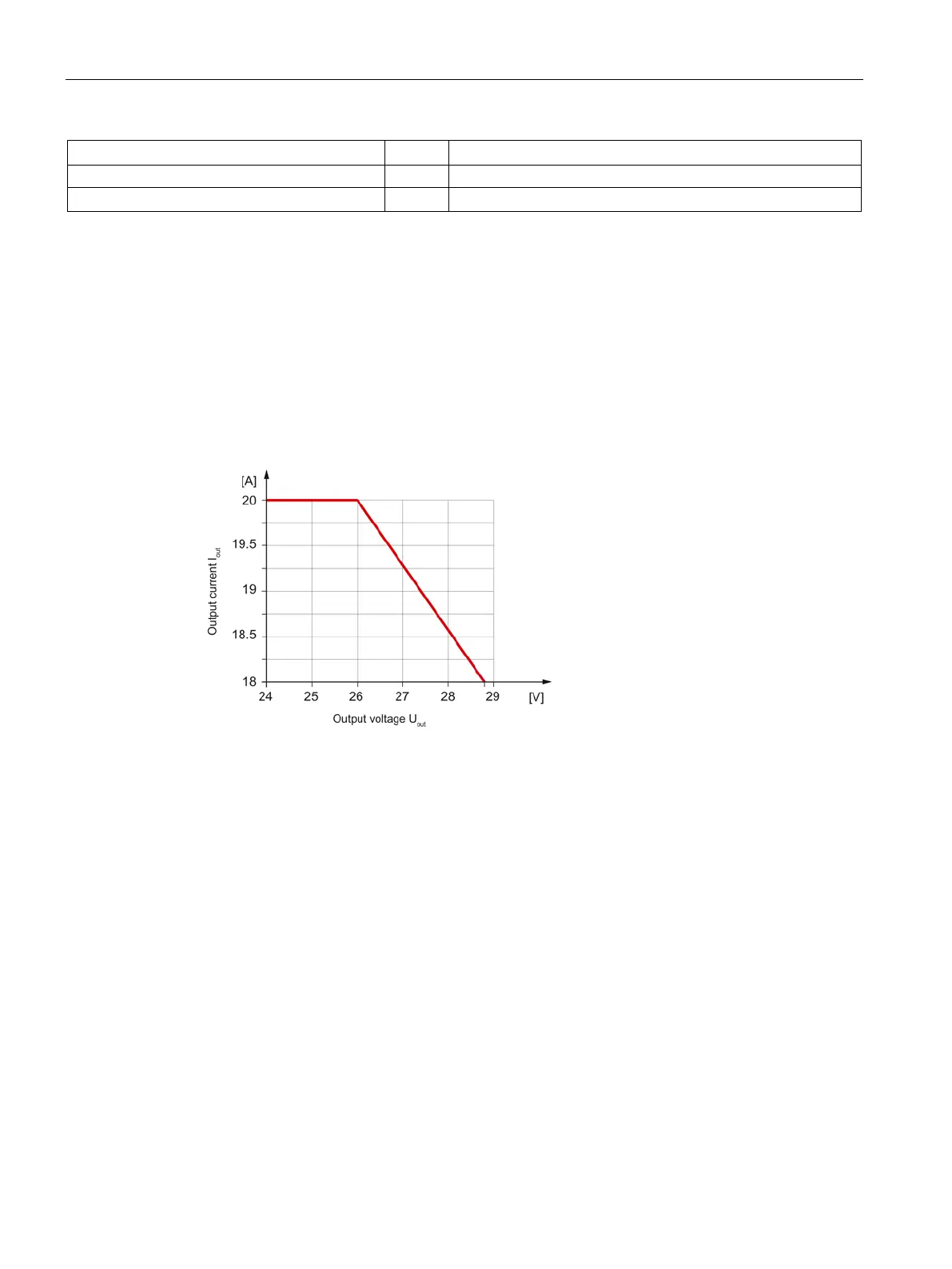

Figure 7-6 Current derating for ambient temperatures >40 °C as a function of the output voltage
