7.3 PLC diagnosis represented as a ladder diagram
7-110
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0

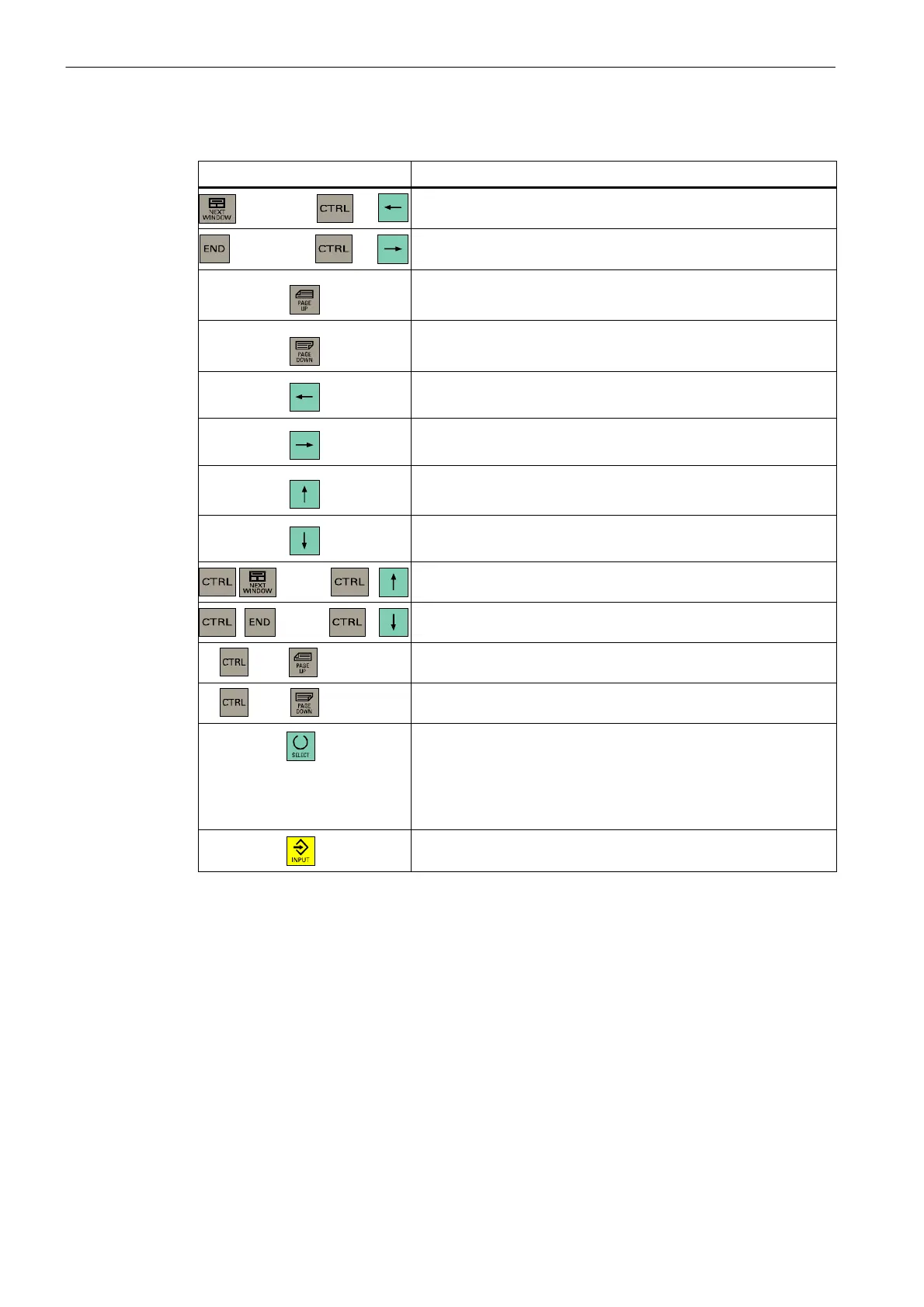

Table 7-5 Key combinations
Key combination
Action
or
To the first line of the row
or
To the last line of the row
Up a screen
Down a screen
One field to the left
One field to the right
Up a field
Down a field
or
to the first field of the first network
or
to the last field of the first network
Opens the next program block in the same window
Opens the previous program block in the same window
The function of the Select key depends on the position of the input
focus.
S Table line: Displays the complete text line
S Network title: Displays the network comment
S Command: Displays the complete operands
If the input focus is positioned on a command, all operands includ-
ing the comments are displayed.
To Next Page
