Setup
3.1 Punching and nibbling tools
3-34
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0
Softkeys
Use this softkey to delete all tool offset data for all cutting edges of the tool.
All parameters of a tool are displayed.
Find tool number
Type the term you are looking for in the input line and use the <OK> softkey to start the
search. If the tool you are looking for exists, the cursor is positioned on the appropriate line.
Use this softkey to create tool compensation data for a new tool.
Parameters

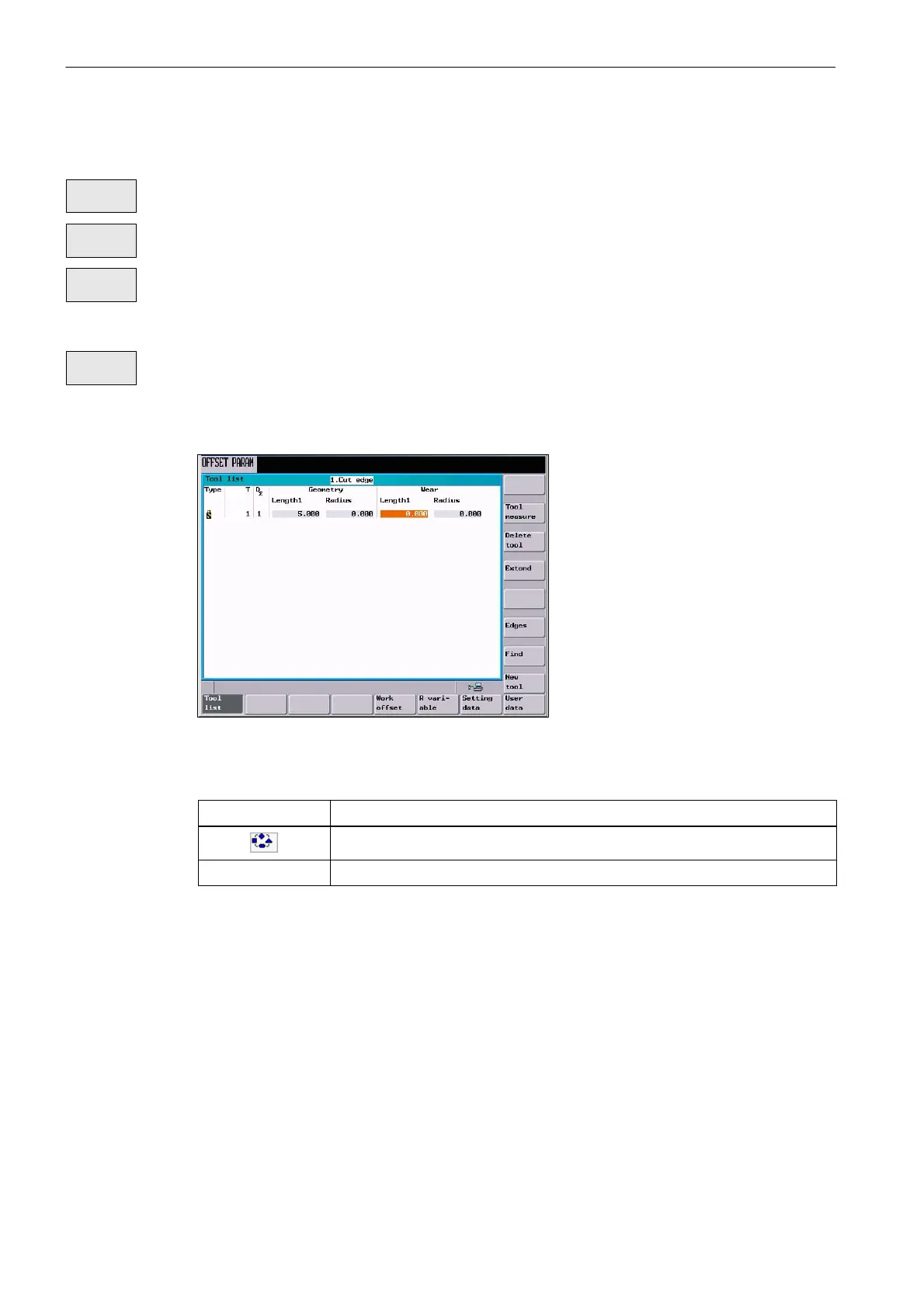

Fig. 3-1 Tool list
Table 3-1 Parameters of the tool list
Field
Description
Bitmap for identification of a multi-tool
T Tool number
Delete
tool
Advanced
Find
New
tool
