Setup
3.4 Programming the setting data
3-43
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0
S Time of program execution: Tool action time (in seconds)
The runtime between NC START and end of program / RESET is measured in the se-
lected NC program. The timer is reset with starting a new NC program.
S Feedrate runtime
The runtime of the path axes is measured in all NC programs between NC START and
end of program / RESET without rapid traverse active and with the tool active. The mea-
surement is interrupted when a dwell time is active.
The timer is automatically reset to zero in the case of a “Control power-up with default va-
lues”.
This function can be used to define protective areas for max. four clamps (clamp protection).

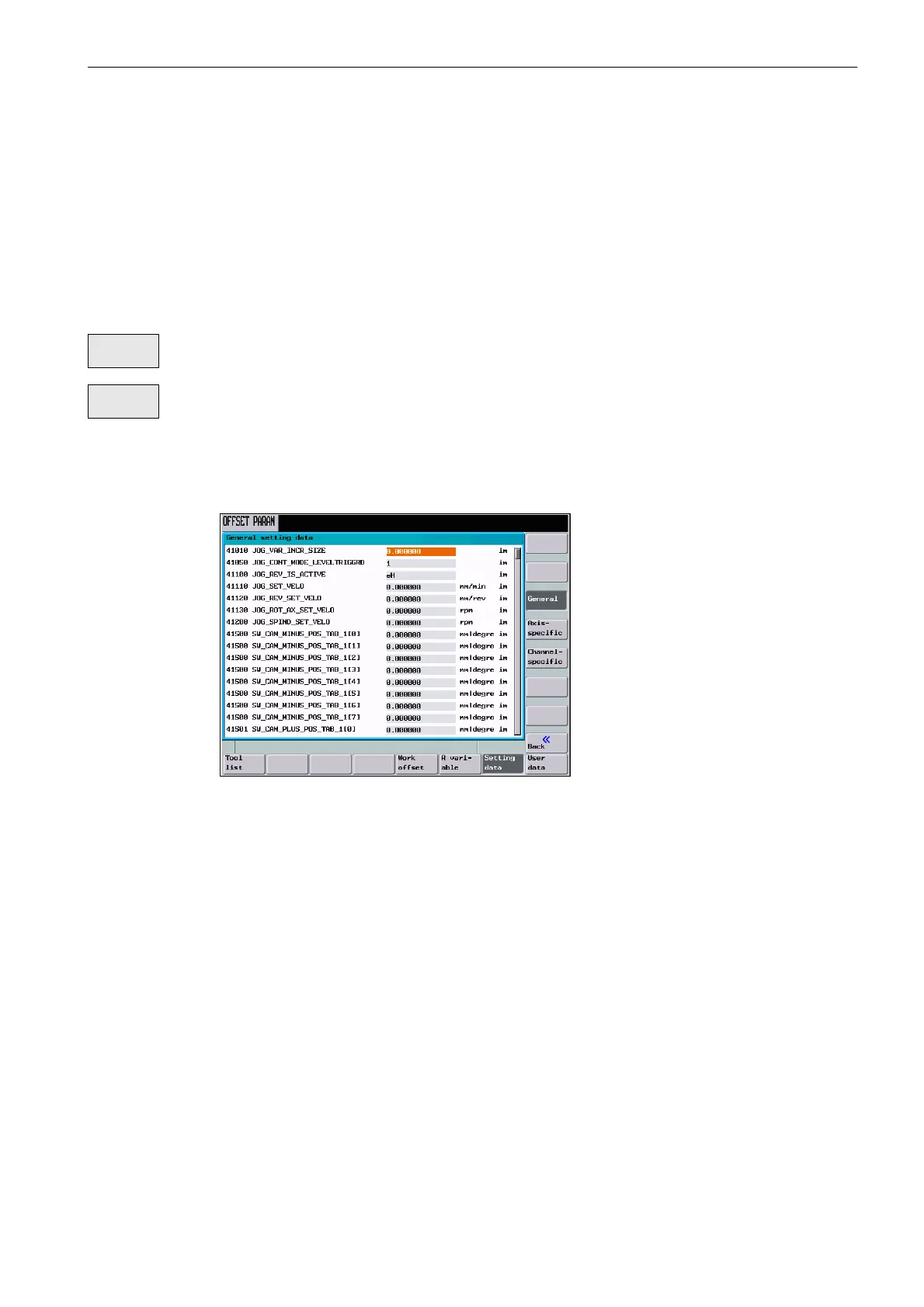

Use this function to display all setting data for the control system in the form of a list. The
data are divided into
S general
S axis-specific and
S channel setting data.
