System
7-99
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0

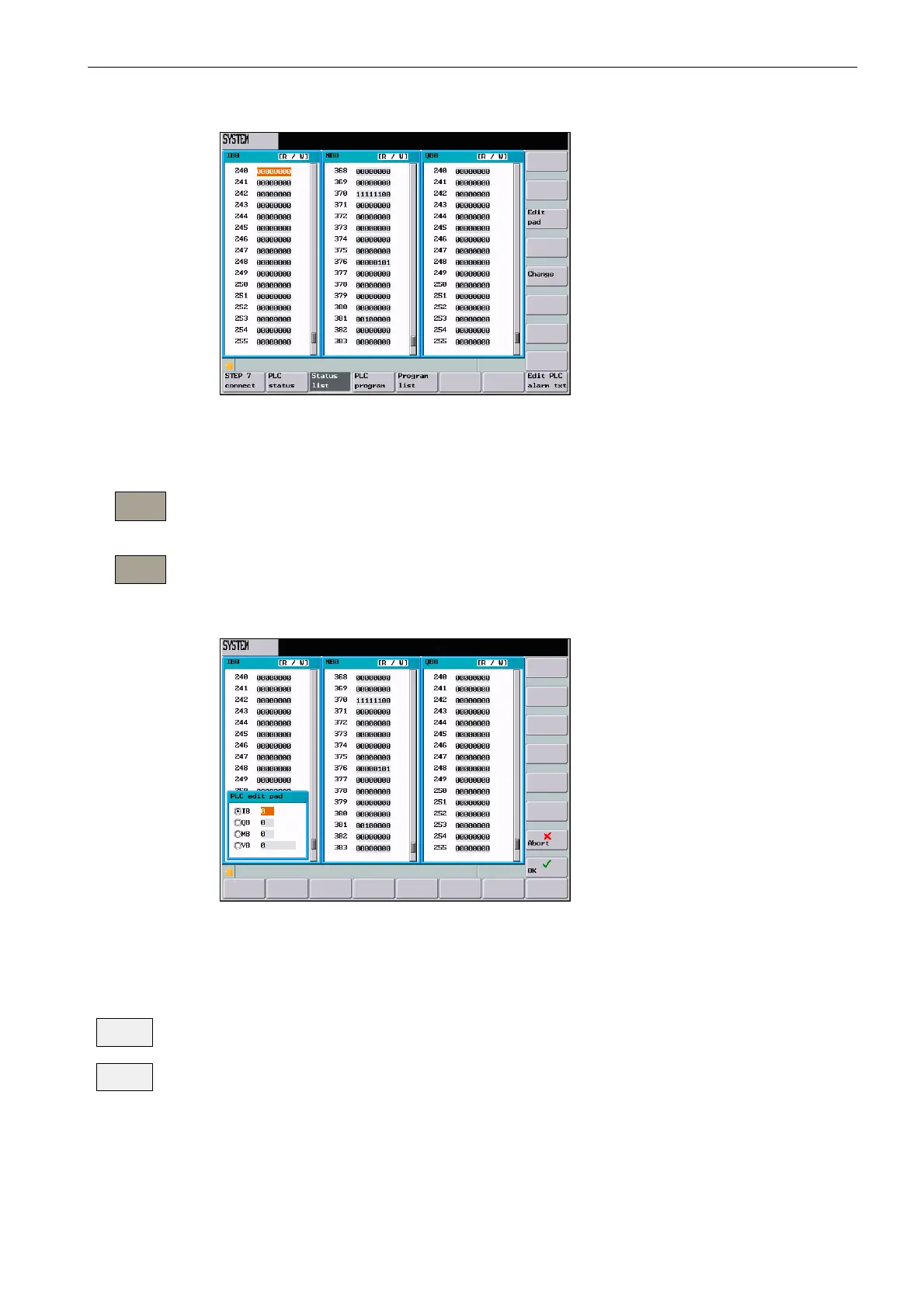

Fig. 7-28 The PLC status list start screen
To change the settings, use the <Edit pad> function.
Use this softkey to change the value of the highlighted variable. Select the <Accept > soft-
key to confirm your changes.
Use this softkey to assign the active column a new area. To this end, the interactive screen-
form offers four areas to choose from. For each column, a start address can be assigned
which must be entered in the relevant input field. When you quit the interactive screenform,
the control system will save your settings.
Fig. 7-29 The “Data type” selection screenform
Use the cursor keys and the PageUp / PageDown keys to navigate in and between the col-
umns.
PLC diagnosis using a ladder diagram (see Section 7.3)
Using the PLC, you may select part programs and run them via the PLC. To this end, the
PLC user program writes a program number to the PLC interface, which is then converted to
a program name using a reference list. It is possible to manage max. 255 programs.
Modify
Editing
block
PLC
program
Program
list
