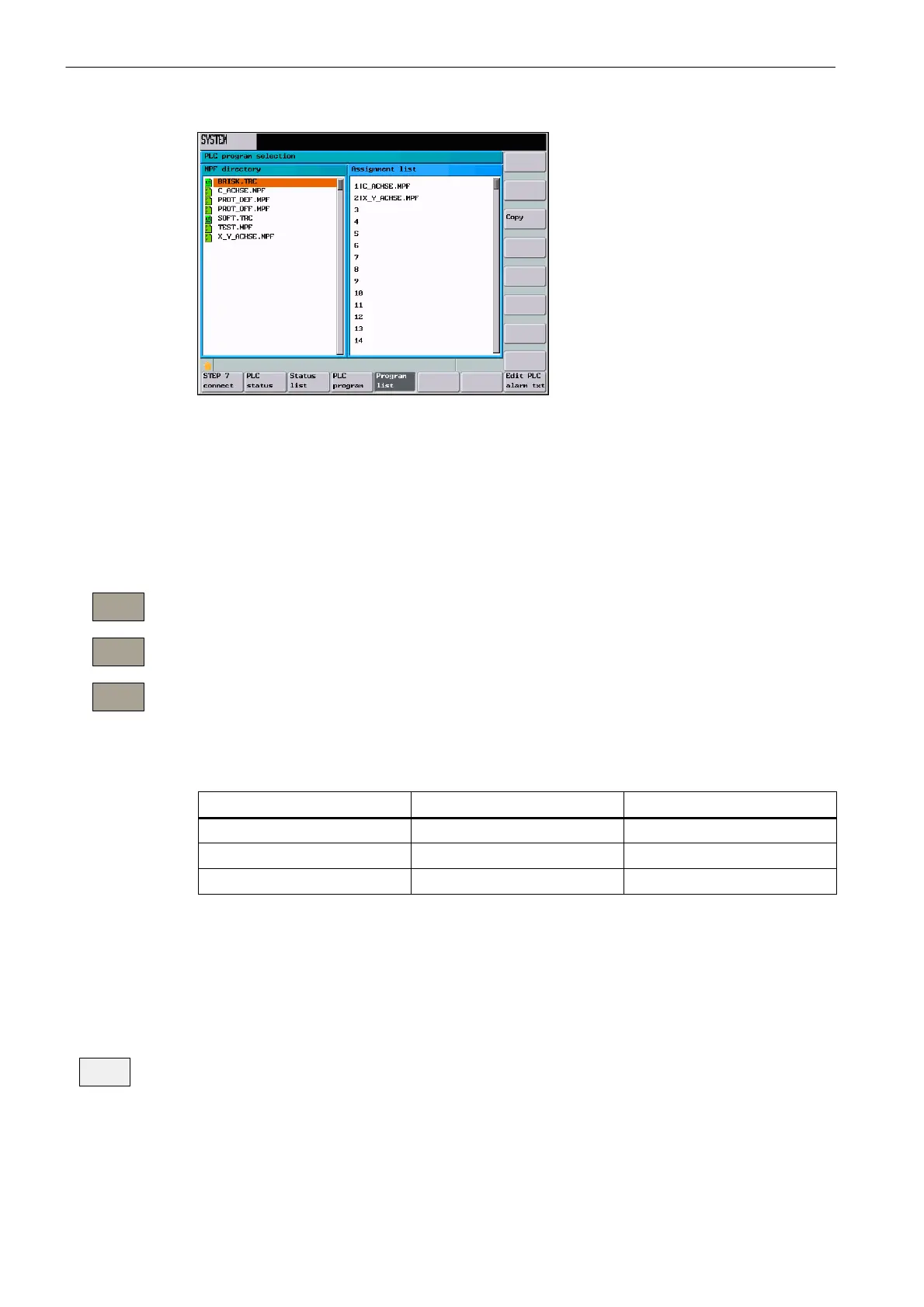

Fig. 7-30
This dialog displays all files of the MPF directory and their assignment in the reference list
(PLCPROG.LST) in the form of a list. You can use the TAB key to switch between the two
columns. The Copy, Insert and Delete softkey functions are displayed with reference to a
specific context. If the cursor is placed on the left-hand side, only the Copy function is avail-
able. On the right-hand side, the Insert and Delete functions are provided to modify the refe-
rence list.
... writes the selected file name to the clipboard
... pastes the file name at the current cursor position
... deletes the selected file name from the assignment list
Structure of the reference list (PLCPROG.LST file)
It is divided into 3 areas:
Number Area Protection level
1 to 100 User area User
101 to 200 Machine manufacturer Machine manufacturer
201 to 255 Siemens Siemens
The notation is carried out for each program by lines. Two columns are intended per line,
which must be separated from each other by TAB, space or the “|” character. In the first col-
umn, the PLC reference number must be specified, and in the second column, the file name.
Example: 1 | shaft.mpf
2 | taper.mpf
This function can be used to insert or modify PLC user alarm texts. Select the desired alarm
number using the cursor. At the same time, the text currently valid is displayed in the input
line.
Copy
Paste
Delete
Edit PLC
alarm txt
