SDS1000X-E User Manual
82
WWW.SIGLENT.COM
6. Press the Time softkey; then turn the Universal Knob to select the desired time
value.
7. Press the Holdoff Close softkey to turn on the Holdoff function; then turn the
Universal Knob to select the desired value.

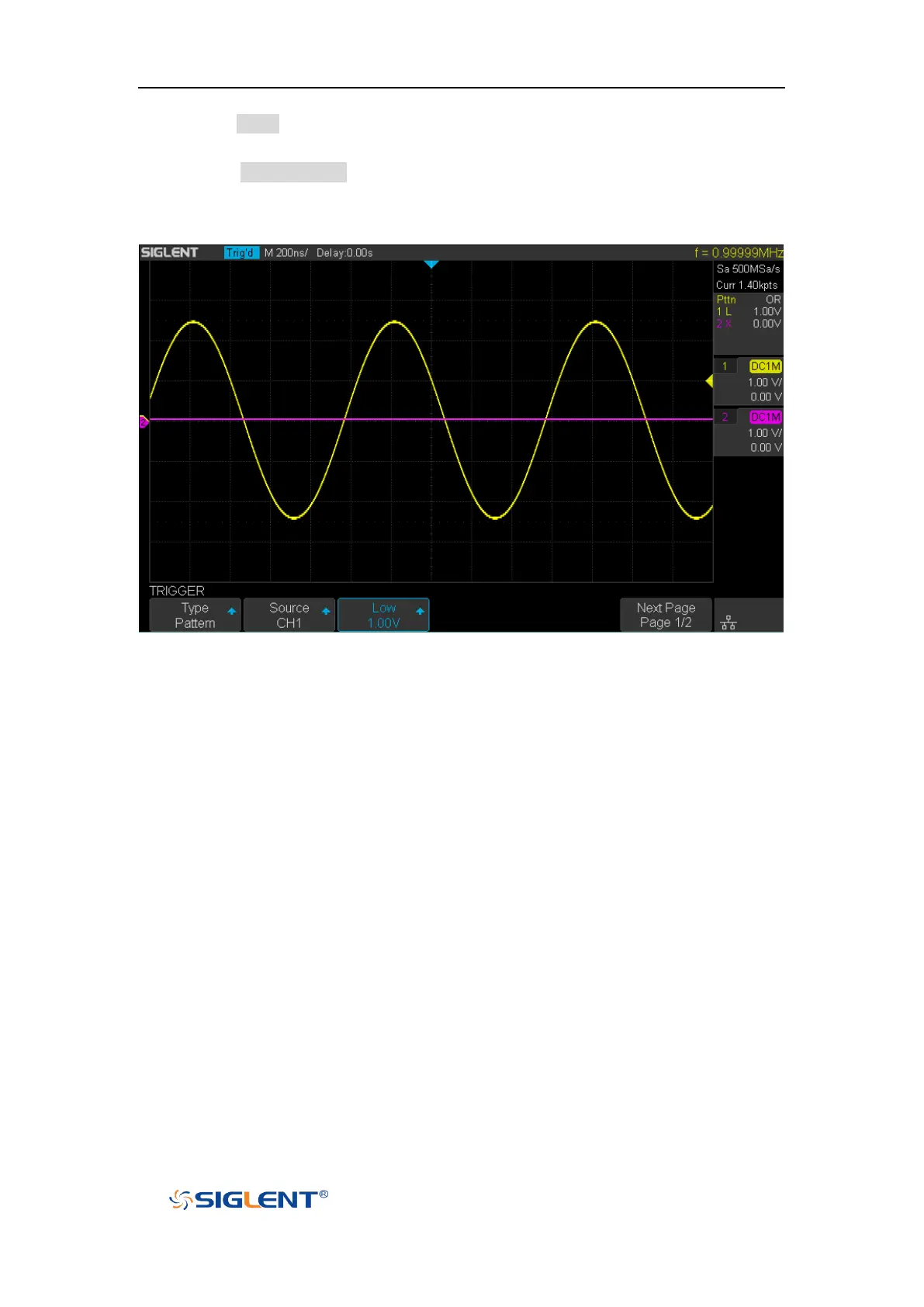

Figure 38 Pattern Trigger
