SDS1000X-E User Manual
118

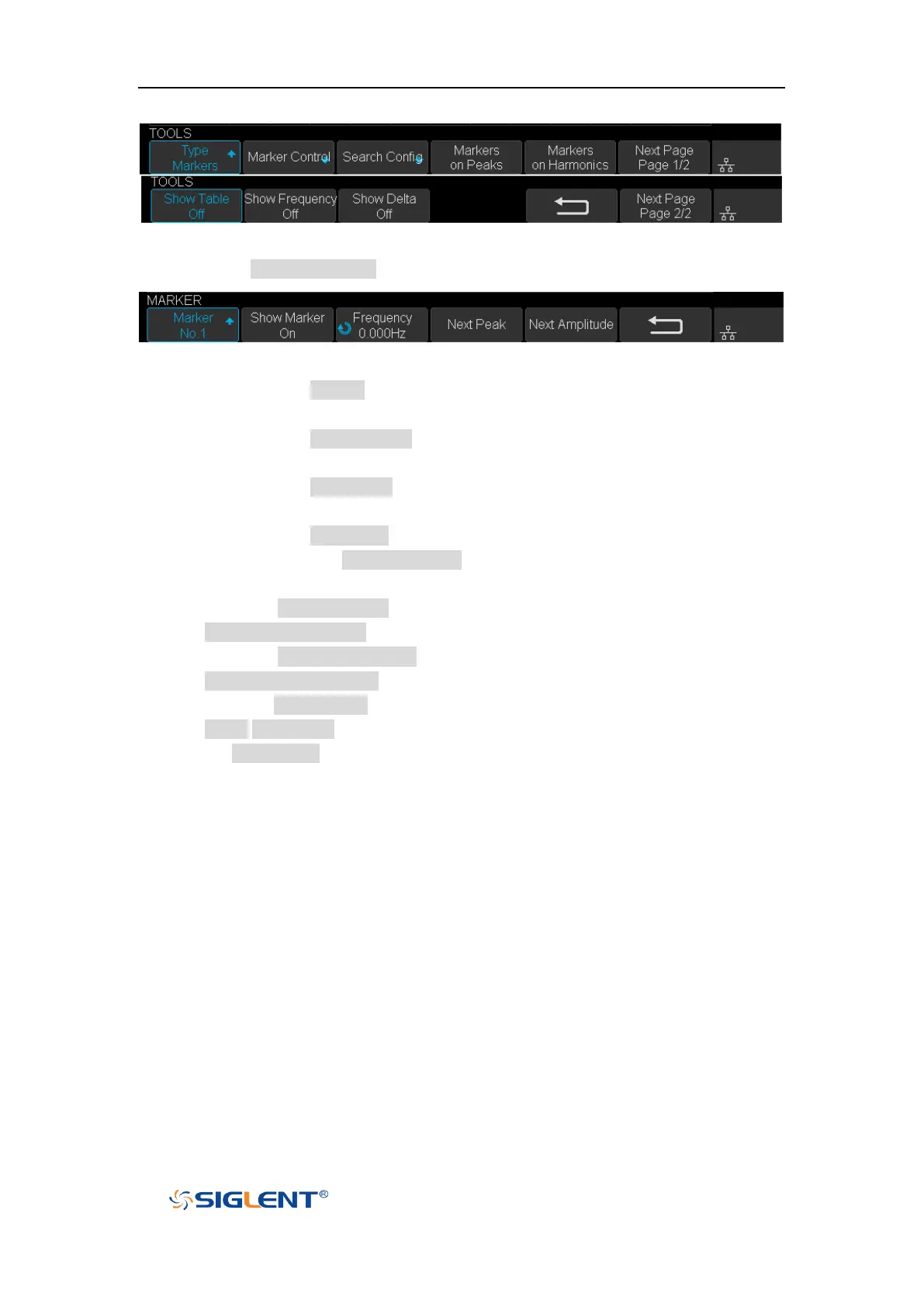

Figure 66 FFT Markers Menu
Press Markers Control softkey to enter MARKER Menu.
Figure 67 Marker Control Menu
a) Press the Marker softkey continuously to select the marker number from
NO.1~NO.8.
b) Press the Show Marker softkey continuously to turn on or off the selected
mark.
c) Press the Frequency softkey to set the frequency value of the selected
marker.
d) Press the Next Peak softkey to move the selected mark to the next peak.
And press the Next Amplitude softkey to move the selected marker to the
next peak with lower amplitude.(Up to 10 peaks are supported)
Press the Search Config softkey to enter the SEARCH menu. Similar to the
search configuration for peak markers.
Press the Markers on Peaks softkey to set the markers on peaks, and press the
Markers on harmonics softkey to set the markers on harmonics.
Press the Show Table softkey to show the amplitude of the markers; press the
Show Frequency softkey to show the frequency value of the markers, and press
the Show Delta softkey to show the delta amplitude between markers.
The following figure shows the FFT waveform displayed on the split screen and the peak
tool is turned on:
