SDS1000X-E User Manual
165
minutes before the self-calibration.
Do the following steps to do self-calibration:
1. Disconnect all the input channels.
2. Press the Utility button on the front panel，and then press the Do Self Cal softkey,
and the oscilloscope will pop-out the message box shown as below:

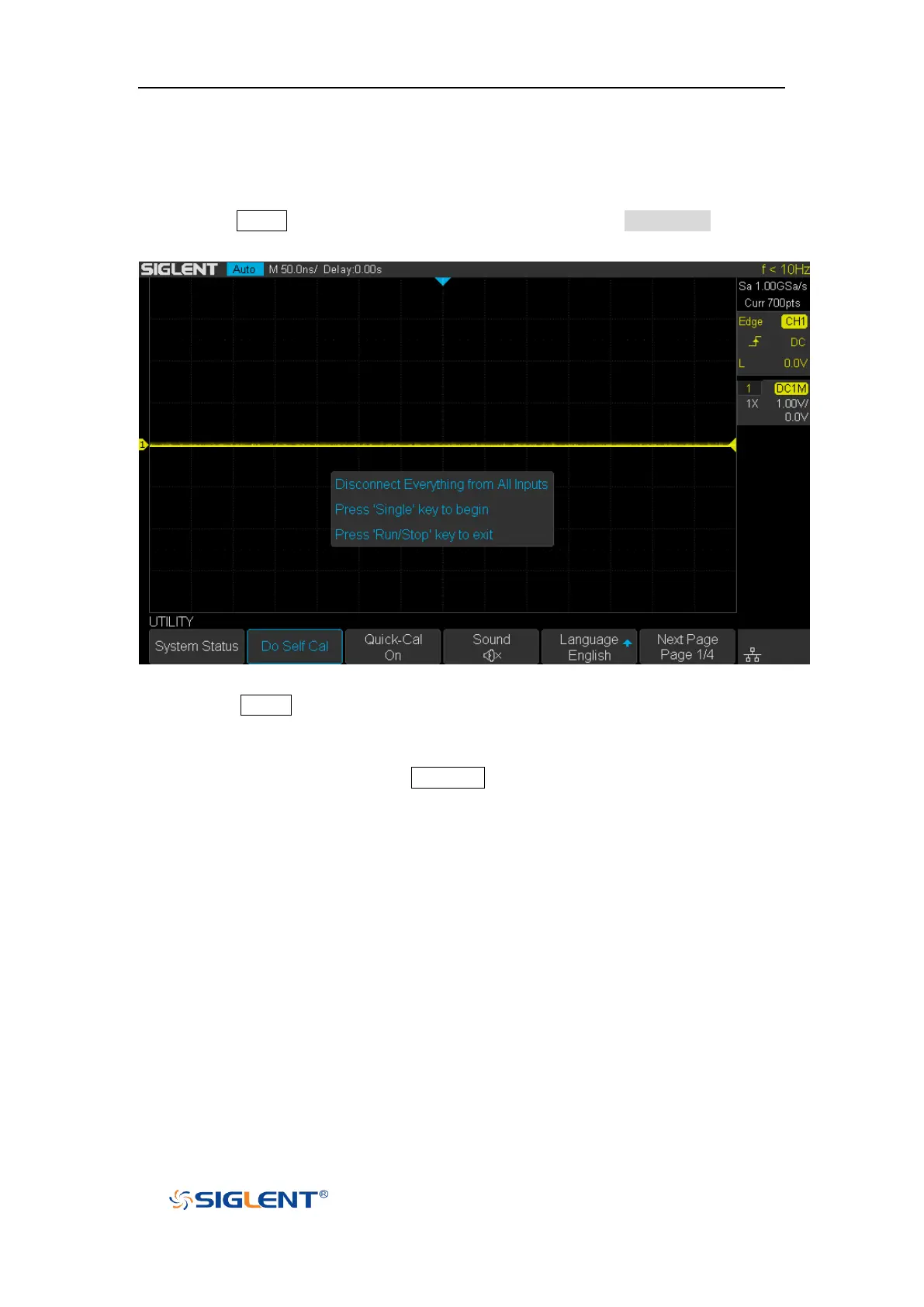

Figure 99 Do Self Cal
3. Press the Single button on the front panel to perform the self-calibration program.
During the calibration, most of the keys are disabled.
4. When the self-calibration program is finished, it will pop-out the message “press
Run/Stop key to exit”. Press the Run/Stop button on the front panel to exit the
calibration interface
