than the specified upper limit of time value.

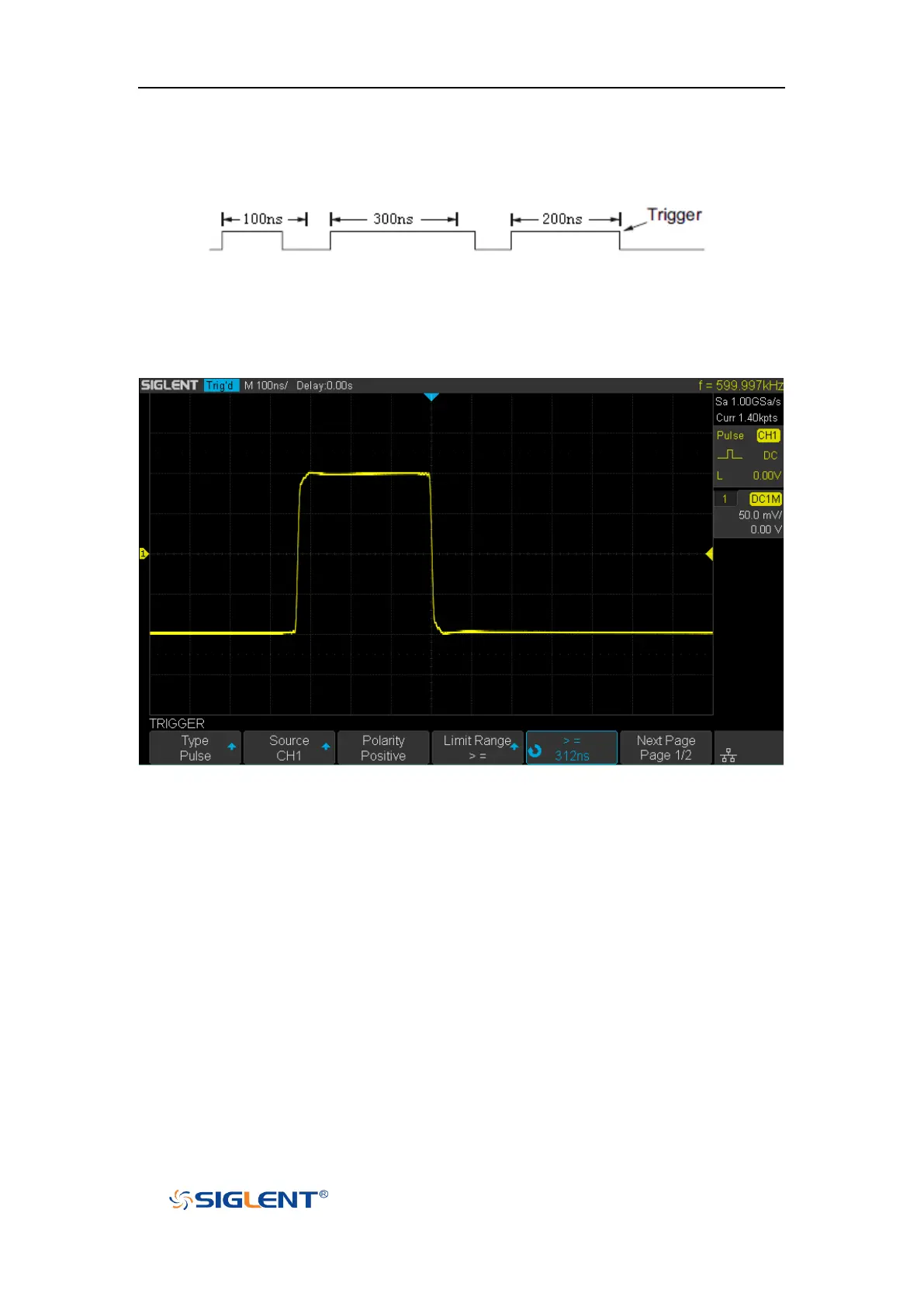

For example, for a positive pulse, if you set t (pulse real width) >100ns and
t<300ns, the waveform will trigger.
 --][-- (outside a range of time value): trigger when the positive or negative pulse
time of the input signal is greater than the specified upper limit of time and lower
than the specified lower limit of time value.
Figure 30 Pulse Trigger
