User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141

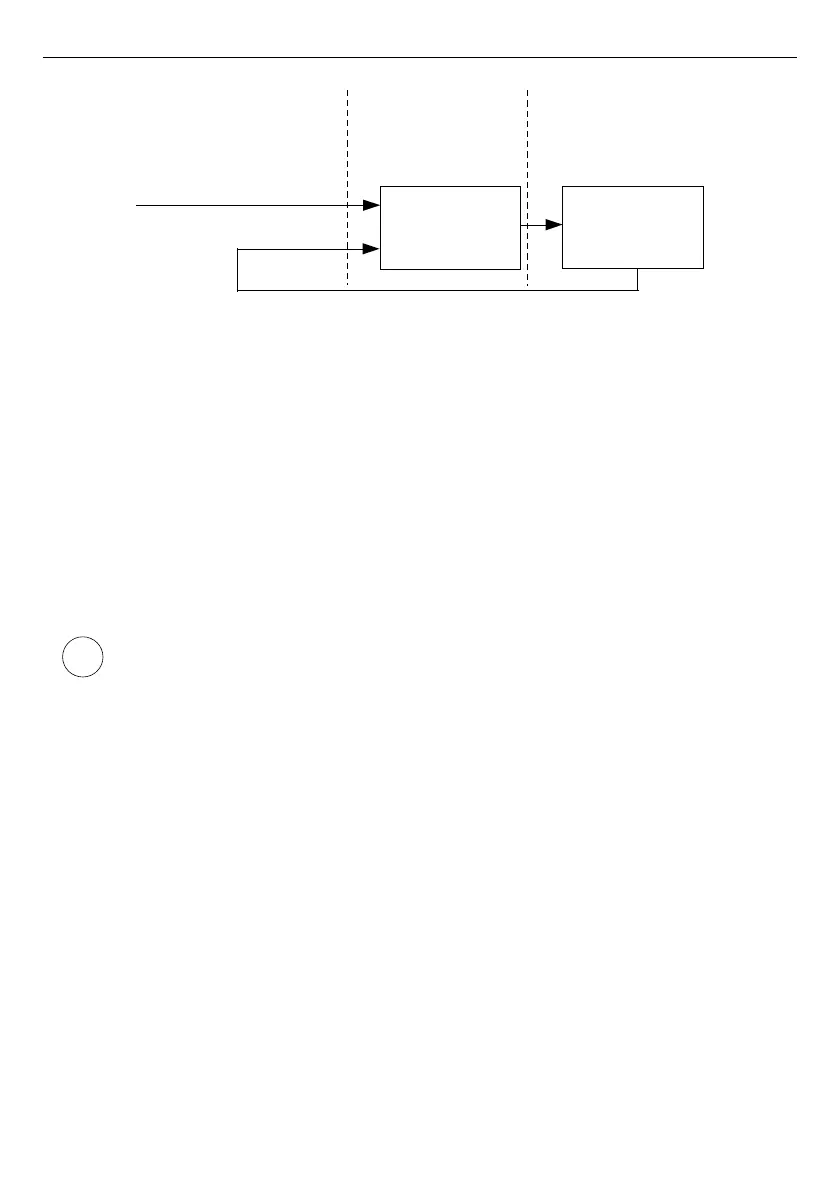

Fig. 7.55. The overall structure of control system implemented in the device
–
Latch
parameter block - allows user to set the
latch function
which will hold the last
value of a channel (discussed in
Chapter 7.8.1. Logical Channels - General
settings
),
–
Processing
parameter block - is used for scaling and filtering data (discussed in
Chapter 7.8.1. Logical Channels - General settings
),
–
Displaying
parameter block - for these parameters the user select format and range
of data displayed on the screen (discussed in
Chapter 7.8.1. Logical Channels -
General settings
).
User must configure the controller parameters in the
Controllers
menu before
using this controller to control real object (To read more about
Controllers
profiles
see
Chapter 7.13. CONTROLLERS
).
106
i
Controller
Control
system
Set point value
feedback
Input
Output
Multicon
