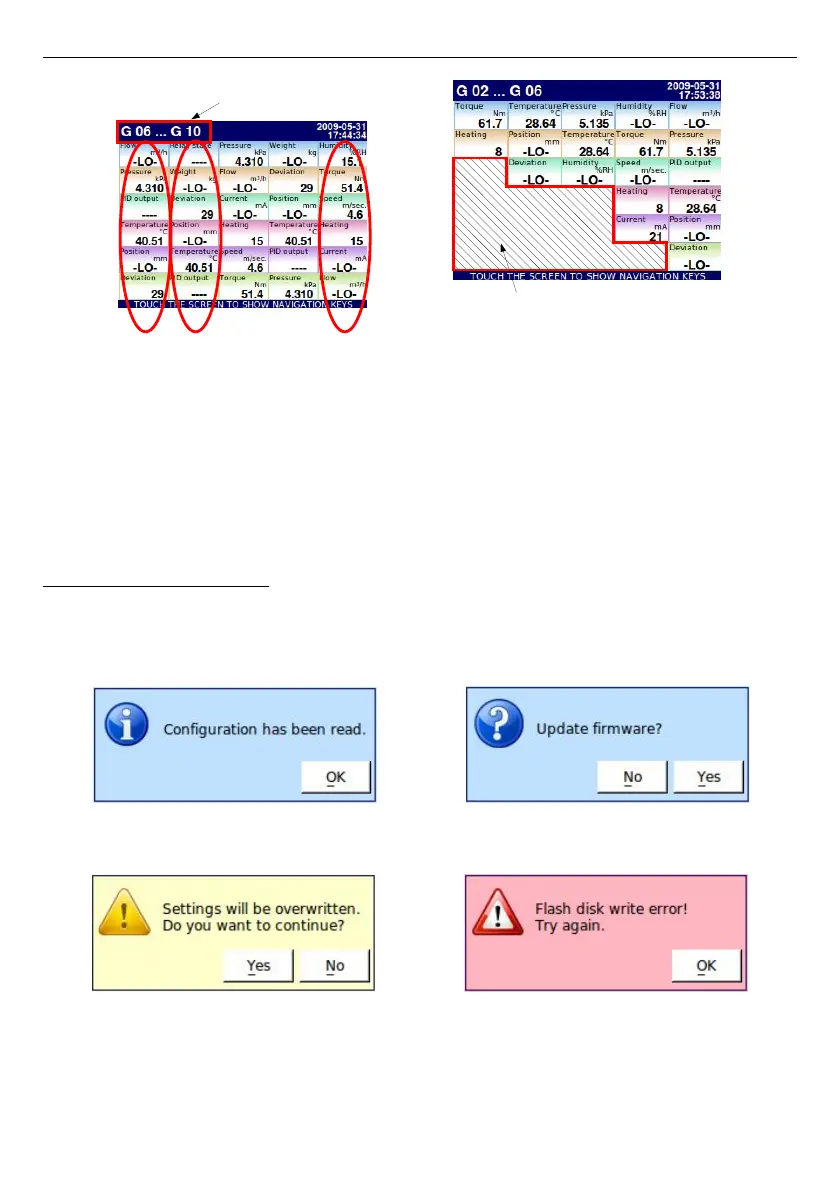

Fig. 6.11. Examples of simultaneous presentation of Many Groups
There is also the possibility to show many groups on a single screen (
Fig. 6.11
). In this
mode channels belonging to the same group are displayed under one another, and groups
are placed side by side. As much as 5 groups can be displayed simultaneously on a single
screen (for example, groups starting from group 8 will display on the screen, starting from the
left side of the page, groups: 8, 9, 10, 1, 2),
See
Chapter 7.14. GROUPS
for more information about
Groups
.
6.3.4. Important messages
The user will sometimes be asked, informed and alerted about a variety of events by
messages displayed on the screen. Figures show below (
Fig. 6.12
÷
Fig. 6.15
) present
examples of message types.
Fig. 6.12. Information message Fig. 6.13. Question message
Fig. 6.14. Warning message Fig. 6.15. Alert message
42
Group
6
7
10
Index of displayed groups
. . .
Inactive logical channels in the groups
