User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
Chapter
6.3.1
Chapter 6.3.3
Chapter 6.3.2

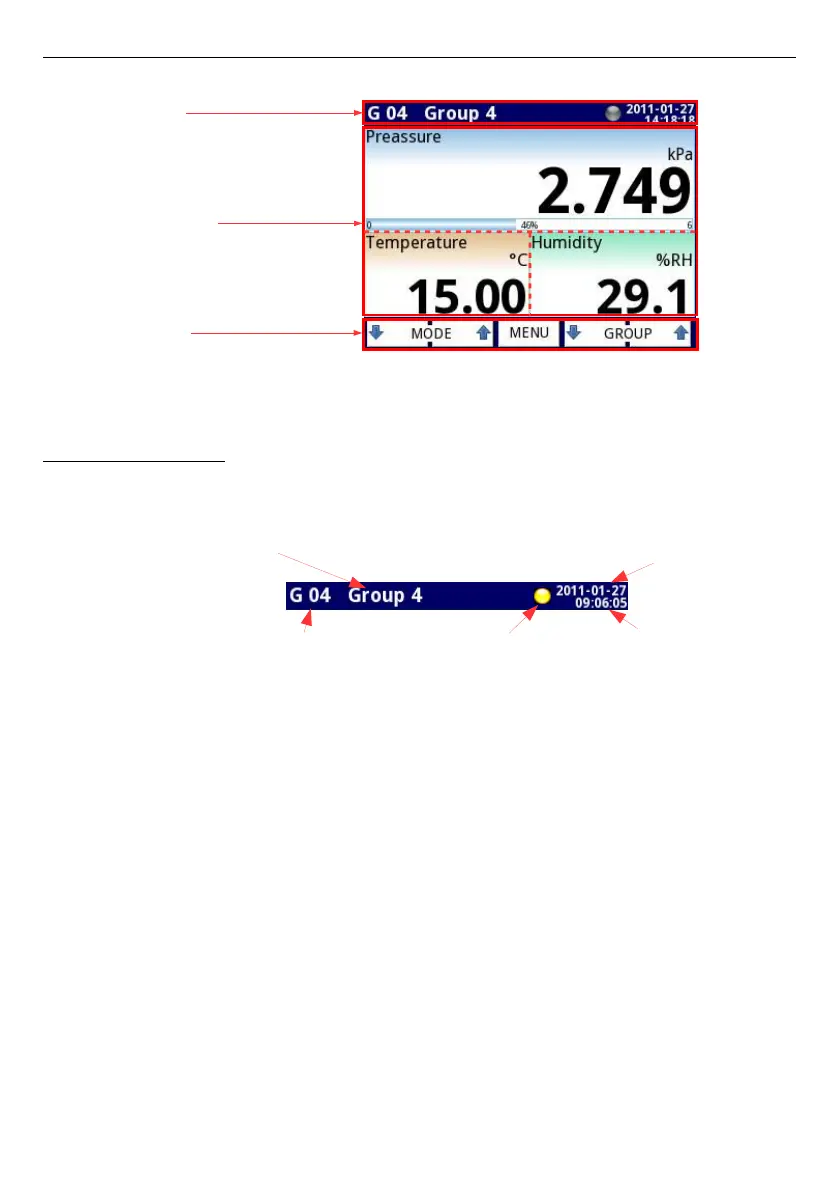

Fig. 6.1. Typical view of a MultiCon CMC-99/141 main page, after touching display
6.3.1. Information bar
The
Information bar
informs the user about current, display group, logging, actual date
and time.
Fig. 6.2. View of information bar
Information bar displays (
Fig. 6.2
):
–
name of the Group
visible on the screen, in place of standard name (e.g.
Group 4
).
It is possible to enter a more descriptive name for clarity (for more information see
Chapter 7.14. GROUPS
),
–
group number
- number of the currently displayed Group, to change the displayed
Group
press button
[↓GROUP]
or
[GROUP↑]
in the
Navigation bar
(see
Chapter
6.3.2. Navigation bar
),
–
time
and
date
- actual time and date display on the right upper corner on the screen
can be set in
General settings
(see
Chapter 7.7. GENERAL SETTINGS
),
–
logging data indicator
- located in the
Information bar
the
logging data indicator
changes color depending of state logging:
•
gray color
- data logging option is not activated (to activate the data logging
option you need to enter the licence key provided by the manufacturer - see
Chapter 7.4. DEVICE INFORMATION, LICENCE, FIRMWARE UPDATE,
REMOTE DISPLAY, EXPORT MANUAL AND RENEW CONFIGURATION
), or
when the logging option is activated but is disabled.
•
green color
- after activation the data logging option indicator changes to green
when the data logging is enabled (for more information about setting data
logging see
Chapter 7.14.2. Groups - Logging options
),
37
Information bar
Data panels
Navigation bar
time
group number
name of the group which is visible on the display
logging data indicator
date
