Simex multicon cmc-99 User Manual

User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
–
Looping
parameter set as
disabled
, because we want that Profile will be executed
only once after triggering from logical channel 2,
– at the end leave the
Profiles/timers
menu,
In the next step you need to define a
Logical channel
:
– touch screen and press the
Menu
button,
– press the
Device configuration
button,
– enter the
Logical channels
menu,
– using the arrows in the top navigation bar, select any
Logical channel
such as
1
,
– in
Name
parameter write
Profile
,
–
Mode
parameter set as
P/T1:”Profile 1”
,
– for
Displaying
block parameters:
•
Format
parameter set as
numeric
,
•
Precision
parameter set as
0.0
,
•
in
Graph low
parameter write
0
,
•
in
Graph high
parameter write
10
,
The way of configuring logical channel (
Triggering source
) in
Hardware input
mode for
current input
is shown in
7.8.11.1. Application of Logical channel in the Hardware input
mode for UI4 module
(we configure this way the logical channel 2).
The second method is described in
Chapter
7.8.11.9. Application of Logical channel in
the Profile/timer mode.
7.12.4.2. Application of the Profiles/timers triggered on time
See also: C
hapter 7.12.3. Profiles/timers - Triggering mode: on time
.
Task:
The task is to create a Profile/timer in logical channel 3, which will generate its profile
from the moment of turning on the device till turning it off. The profile consist of two sections:
1. const.value 1 during 0,2 second,
2. const.value 0 during 1,8 second,

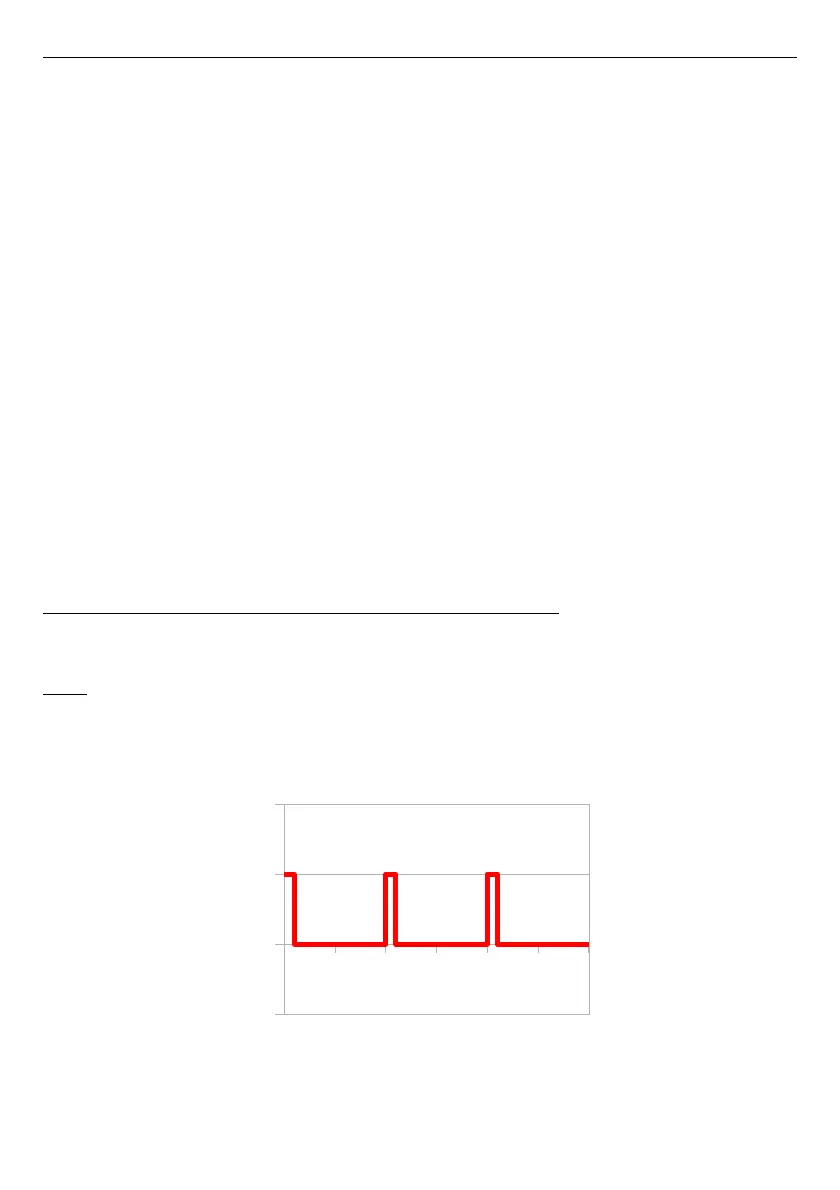

Fig. 7.107. An example of the waveform
184
0 1 2 3 4 5 6
-1
0
1
2
Time [s]
Value
