Fig. 7.82. Two threshold control of the relay outputs

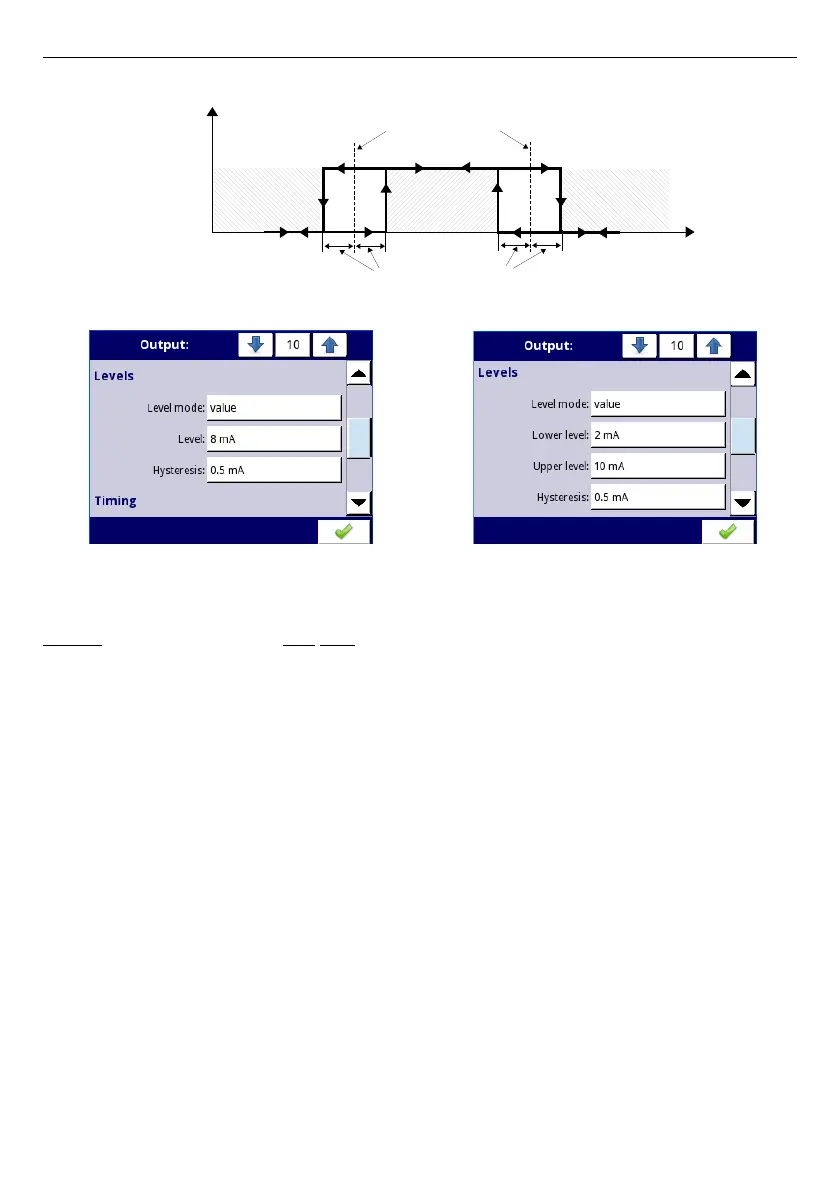

Fig. 7.83. Levels settings for Mode: above and bellow level (left) and inside range and
outside range (right)
Timing
parameter block (see
Fig. 7.86
)
The parameters of this block include:
–
ON delay
- this parameter allows the setting of the time that must pass from the time
of exceeds
Level
value until the output switch from low to high state (see
Fig. 7.84
),
–
OFF delay
- this parameter allows the user to set the time that must pass from the
time of exceeds
Level
value until the output switch from high to low state
(see
Fig. 7.84
),
–
Minimum ON time
- the minimum duration of a high state (if the output switches to
high state the low state will occur after this time) - see
Fig. 7.85
,
–
Minimum OFF time
- the minimum duration of a low state (if the output switches to
low state the high state will occur after this time) - see
Fig. 7.85
,
156
zone B
zone A
zone B
Lower level Upper level
parameter
Hysteresis parameter
Output
state
