User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
This is a class A unit. Class A equipment is suitable for use in all
establishments other than domestic and those directly connected to a low
voltage power supply network which supplies buildings used for domestic
purposes.
This is group 1 unit. Group 1 contains all equipment in the scope of this
standard which is not classified as group 2 equipment. Group 2 contains
all ISM RF equipment in which radio-frequency energy in the frequency
range 9 kHz to 400 GHz is intentionally generated and used or only used, in
the form of electromagnetic radiation, inductive and/or capacitive
coupling, for the treatment of material or inspection/analysis purposes.
Carefully check that the isolation used with the unit (
Fig. 4.1
) meets the
expectations and if necessary use appropriate measures of over voltage protection.
Additionally, insure the appropriate air and surface insulation gaps when installing.

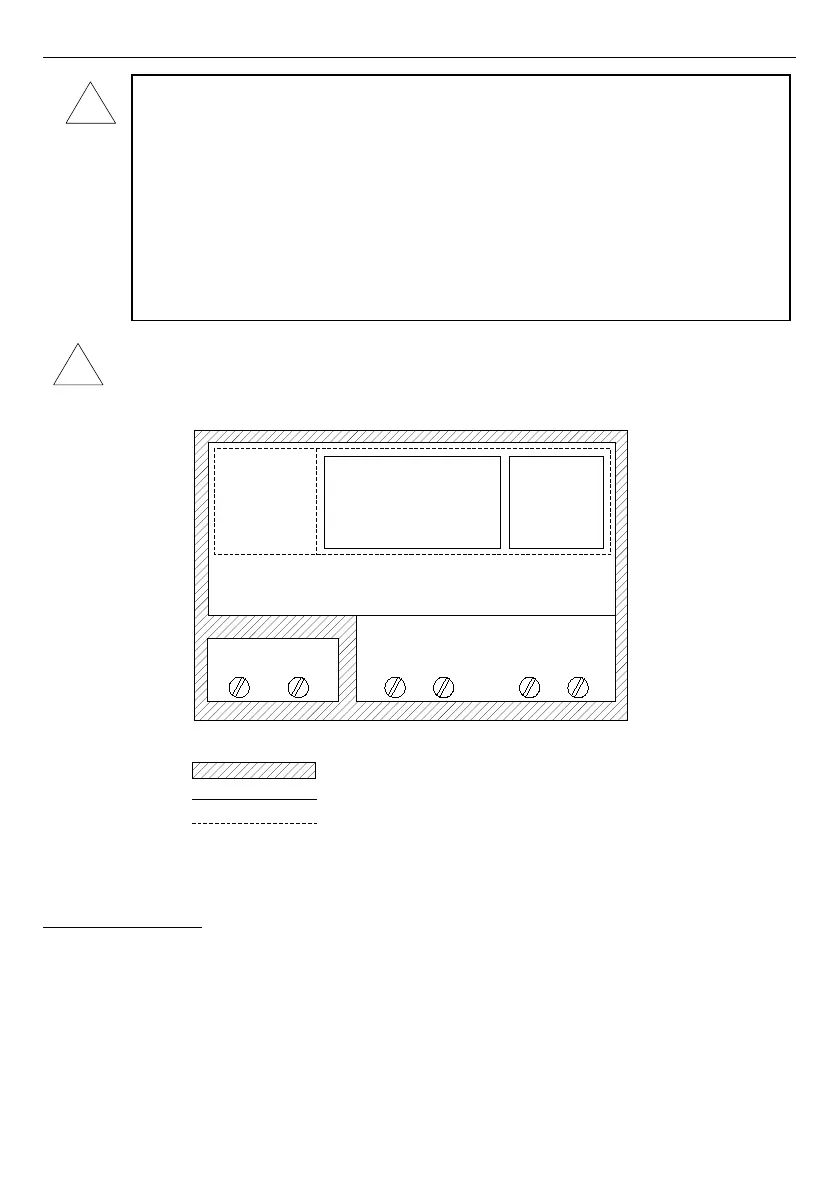

Fig. 4.1. Schematic diagram showing the isolation between individual circuits of the unit.
4.1. UNPACKING
After removing the unit from the protective packaging, check for transportation damage.
Any transportation damage must be immediately reported to the carrier. Also, write down the
unit serial number located on the housing and report the damage to the manufacturer.
Attached with the unit please find:
– assembly brackets - 2 pieces,
– pointer for touch screen,
– user’s manual for
MultiCon CMC-99/141
unit (device) in
pdf.
,
11
!
!
Internal circuits
External sensor
supply output
Measurement inputs
RS 485
interface
and
digital input
Isolation strength 1min @ 2300V AC
Isolation strength 1min @ 500V AC
No isolation
Outputs circuits
Power supply
