User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
7.8.11.9. Application of Logical channel in the Profile/timer mode
See also: Chapter 7.12. PROFILES/TIMERS.
Task:
Create the Profile/timer in the logical channel 1 in the edge (once) triggering mode.
Trigger source is logical channel 2 which is connected to current input from UI4 module.
Profile consists of 4 sections: 1. ramp from 0 to 10 in 5 seconds, 2. constant value 8 in 2
seconds, 3. ramp from 8 to 4 in 3 seconds and 4. constant value 4 in 1 seconds. Idle value is
0 and looping is disabled.
Solution:
First configure the device as follows. Then connect current converter to the UI4 module
as it is shown in
Fig. 8.41
(see also
Appendices 8.2. UI4, UI8, UI12, U16, U24, I16, I24 –
VOLTAGE and CURRENT MEASUREMENT MODULES
).

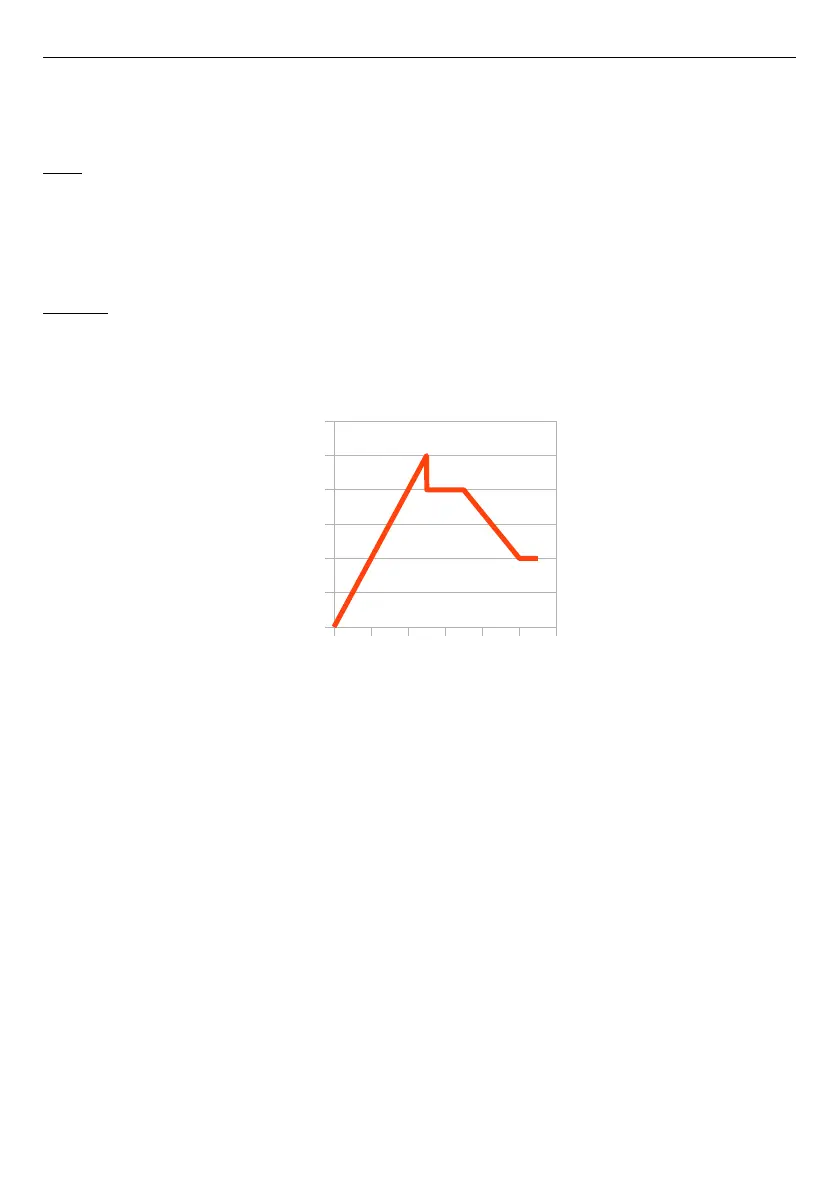

Fig. 7.73. Example of Profile waveform
For logical channel in Profile/timer mode:
– touch screen and press the
Menu
button,
– press the
Device configuration
button,
– enter
Logical channels
menu,
– using the arrows in the top navigation bar, select any
logical channel
such as 1,
– in
Name
parameter write
Profile
,
–
Mode
parameter set as
Profile/timer
,
–
Source
parameter set as
P/T1:”Profile 1”
,
– press
Configure source
button,
•
Mode
parameter set as
edge (once)
,
•
Triggering source
parameter set as
Log.ch.2
,
• in
Idle value
parameter write
0
,
• press
Section list
button,
◦ press green button on the bottom left side of the screen,
◦
Section num.
parameter should be set as
1
,
– in
Duration
parameter write
0
,
–
Unit
parameter set as
second
,
133
0 2 4 6 8 10 12
0
2
4
6
8
10
12
Time [s]
Value
