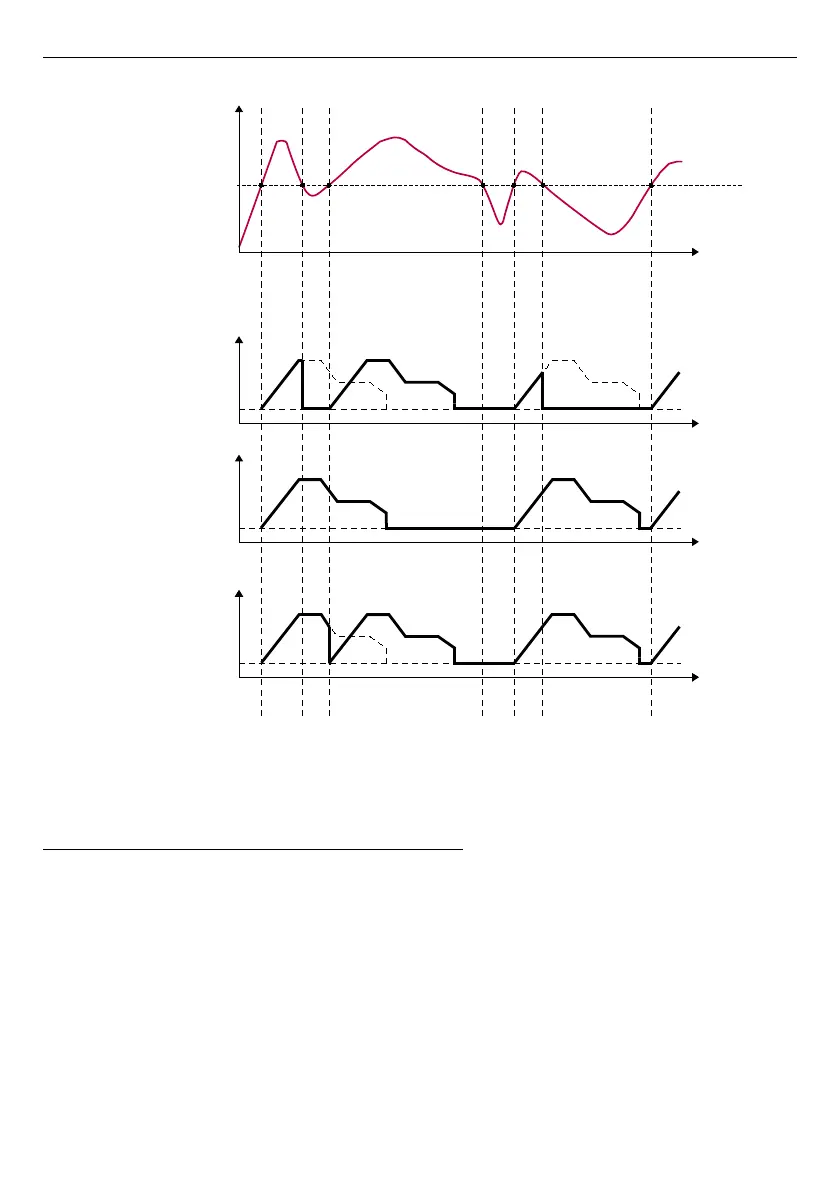

Fig. 7.103. Samples of Profile output waveforms defined in Fig. 7.102, triggered by signal
selected in Triggering source parameter for Triggering mode: level (gate), edge (once),
edge (retrig.)
7.12.3. Profiles/timers - Triggering mode: on time
The parameters of
Profiles/timers
for
triggering mode
:
on time
are:
–
Name
– it gives the name to the Profile/timer,
–
Triggering mode=on time
– allows to trigger the Profile at demanded time defined
in
Triggering times
parameter,
–
Triggering times
– submenu with the parameters which defines times of Profile
triggering. This parameters are:
•
Months
,
•
Days
,
•
Week days
,
•
Hours
,
•
Minutes
,
•
Seconds
,
180
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1 2 3 4 5 6 7 8 9 10 11 12 13 14
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1 2 3 4 5 6 7 8 9 10 11 12 13 14
a) level (gate)
b) edge (once)
c) edge (retrig.)
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Triggerring source
signal
Time [s]
Idle value
Idle value
Idle value
Time [s]
Time [s]
Time [s]
