7.13. CONTROLLERS
Although most controlling processes can be realised using simple ON - OFF mode,
there is sometimes necessity to use more advanced methods to control the actuators. The
MultiCon has implemented
proportional–integral–derivative controllers
(
PID controllers
)
which is a generic control loop feedback mechanism (controller) by calculating an "error"
value as the difference between a measured process variable and a desired setpoint. The
controller attempts to minimize the error by adjusting the process control outputs. In the
device there is 8 independent settings of PID type controllers available.
7.13.1. Controllers - General settings
In the system there are
8 independent settings of PID type Controllers
available which can
by used by any
Logical channel
switched in
Controller
mode - see
Chapter 7.8.7. Logical
Channels - Controller mode
.
The window with basic parameters of the
Controller
shown on
Fig. 7.108
.

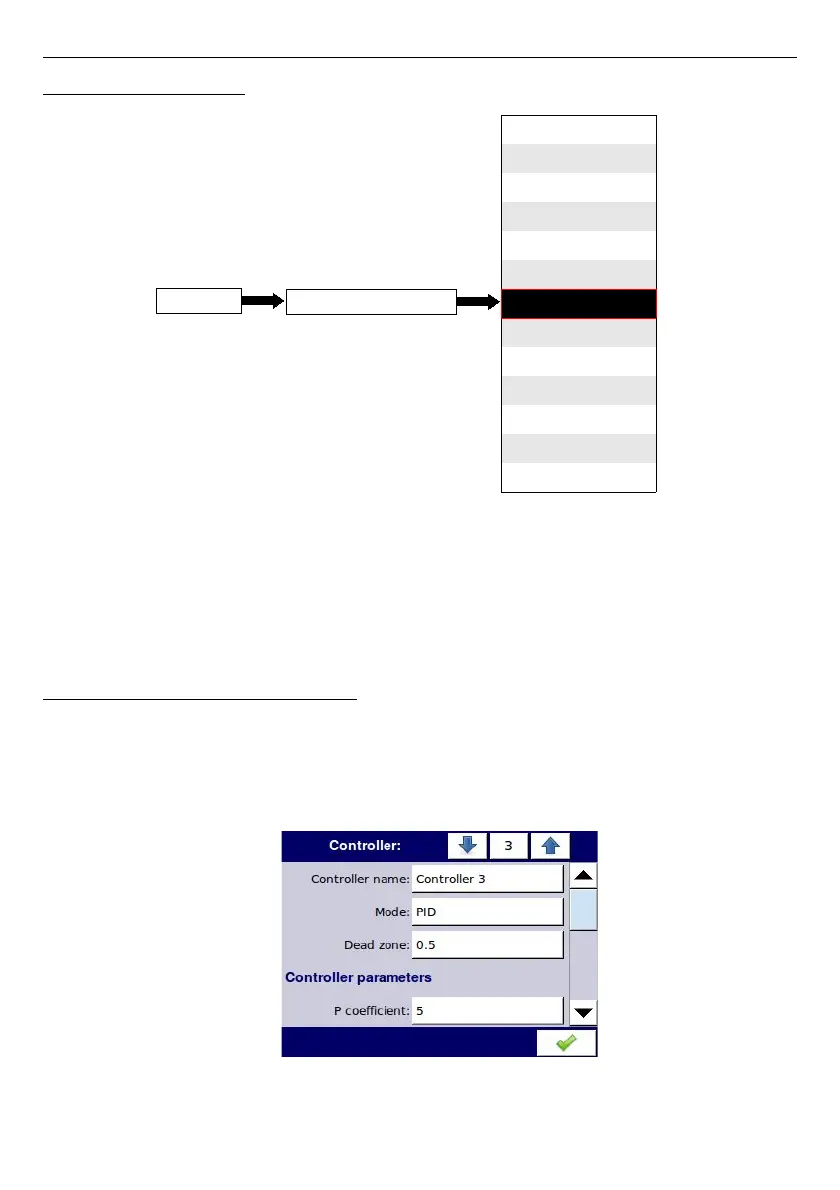

Fig. 7.108. Main configuration of an Controller profile
186
Device configuration
MENU
General settings
Logical channels
Built-in inputs
Built-in outputs
External outputs
Profiles/timers
Controllers
Groups
Modbus
Network settings
Access options
Printouts
Notifications
