8.4. IS6 – ISOLATED CURRENT INPUTS MODULE
Fig. 8.8.Isolated current input module
Most important parameters of IS6 module:
IS6
Number of inputs 6xI
Hardware limitations
current inputs 3mA ÷ 30mA
Hardware resolution
current inputs
1µA
Precision
current inputs 0.25% @ 25°C

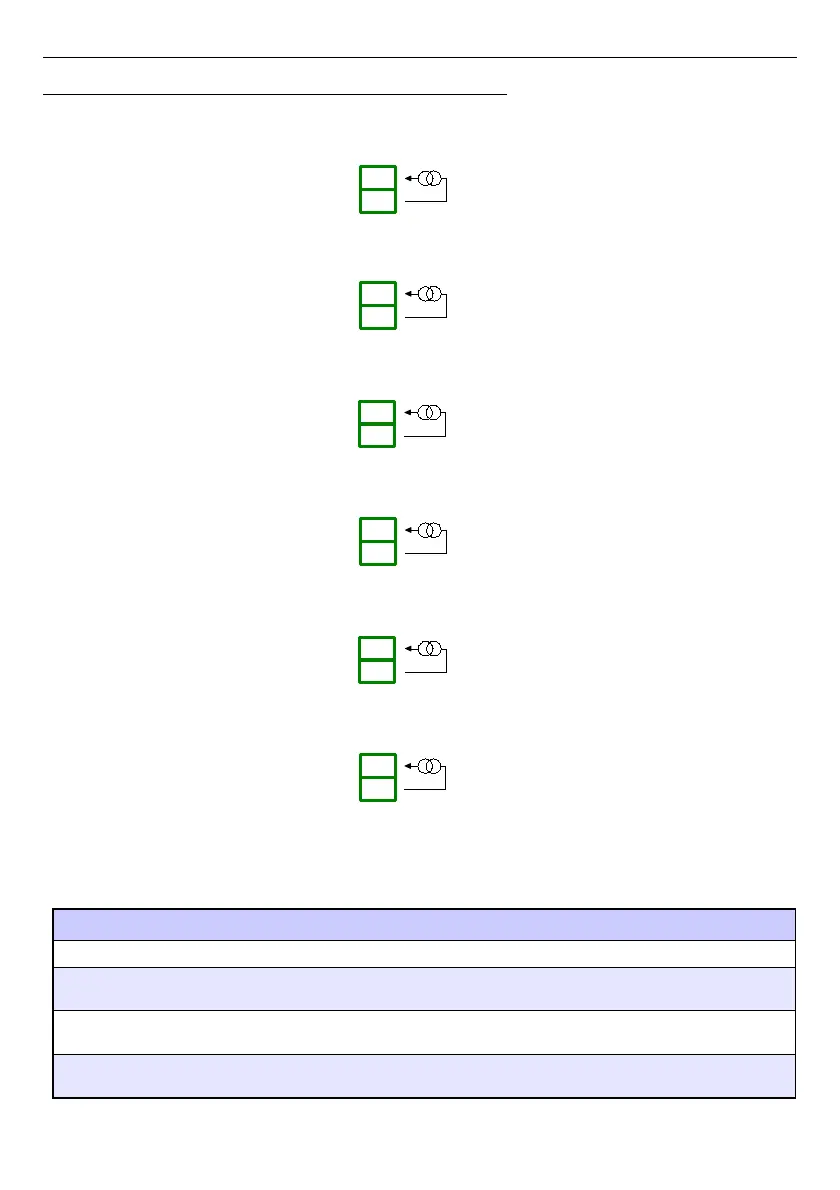

244
IS6
6 isolated current input
IN 1
n01
n02
n03
n04
n05
n06
n07
n08
n09
n10
n11
n12
IN 2
IN 3
IN 4
IN 5
IN 6
