User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141

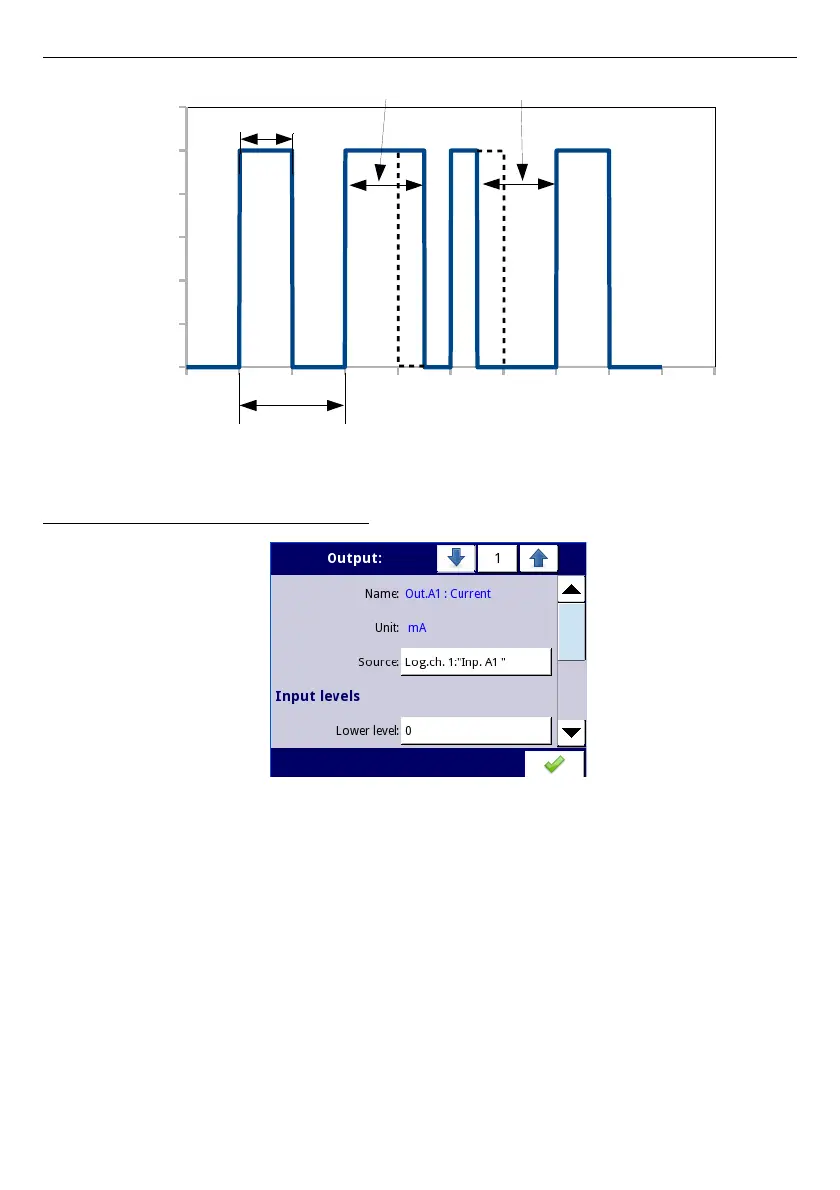

Fig. 7.88. Sample of output signal of SSR relay in PWM mode
7.10.4. Built-in output - Current output
Fig. 7.89. Menu of the Passive current output
The parameters of built-in output for
Current outputs
module are:
–
Name
– each outputs already has a name given by the device and user cannot
change it - see
Fig. 7.78
,
–
Unit
– defined permanently, it occurs only for Current output,
–
Source
– this parameter contains a Logical channels list, where the selected logical
channel will be a data source for this built-in output, data from this source are
calculated according to parameters gathered in
Input levels
and
Output levels
blocks,
–
Input levels
parameter block - determine the range of data source for this built-in
output, this block has parameters:
•
Lower level
and
Upper level
- these parameters limit the range of the input
signal selected in
Source
parameter, below this range input signal will have
Lower level
value and above this range the signal will have
Upper level
value,
160
0 10 20 30 40 50 60 70 80 90 100
0
2
4
6
8
10
12
Time [s]
PWM output [V]
T=20s
Parameter: Minimum ON time, Minimum OFF time
t=10s (D=50%)
