User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
7.3. FILES MANAGEMENT

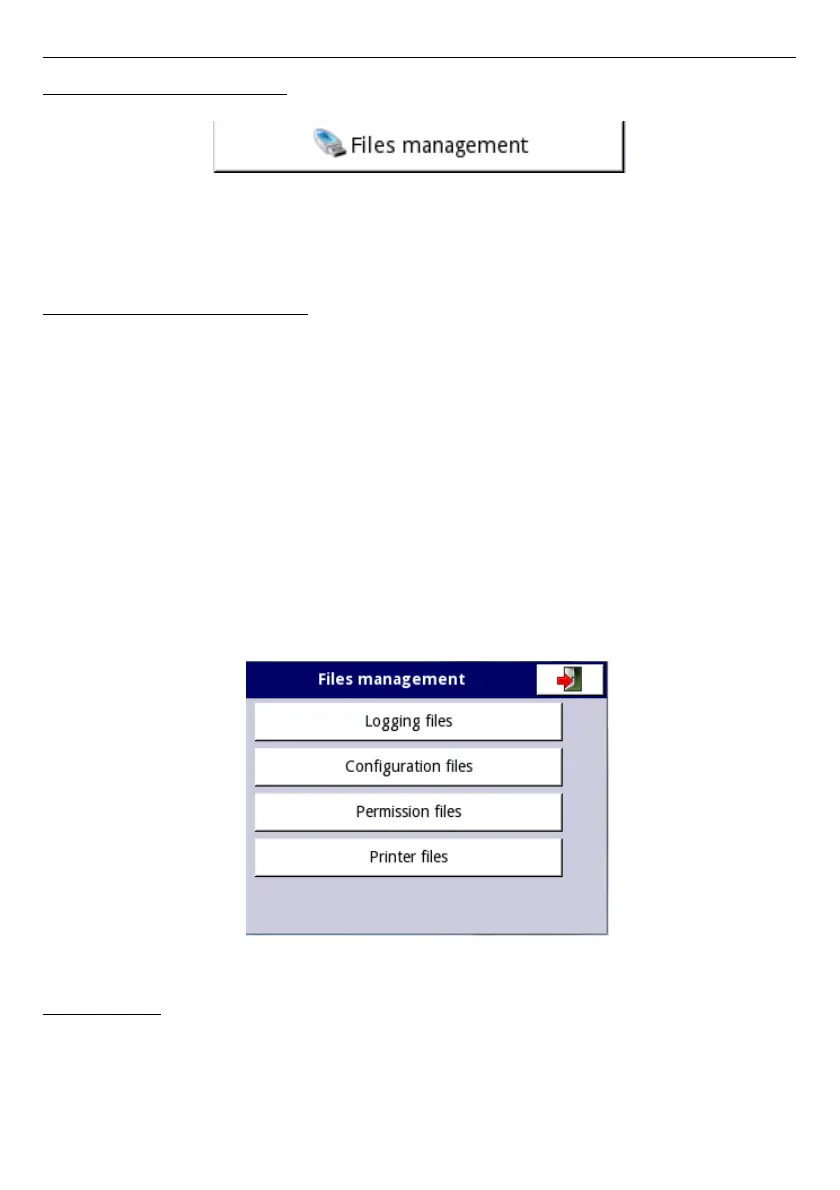

Fig. 7.15. This button allows to entry to the files management menu
After pressing
MENU -> Files management
(see
Fig. 7.15
) opens the files
management menu which is used to exchange data with a flash drive.
Requirements for a flash drive:
– Maximum current consumption is 100mA. Some flash drives with large capacities are
not supported by the device (in this case can use an external USB hub with power
supply). The manufacturer recommends the use of flash drives of 2GB in size.
– The flash disk must be formatted for Windows as FAT (NOTE!! not FAT32).
– update files, configurations files, and Modbus templates must be located in the main
folder (the root of the drive).
A view of the
File management
menu is shown in
Fig. 7.16
. There are four buttons
called
Logging files
,
Configuration files
,
Permission files
and
Printer files
.
The
Logging files
button is always visible and it contains all possible parameters but
their functionality is blocked until the licence key for data logging is entered (more information
about the licence key is located in
Chapter 7.4.
). The
Configuration files
button is visible
and active always. The
Permission files
button is available when
Access mode
parameter
in
Access options
menu is set as
MultiLevel
(see
Chapter 7.17.
).
Printer files
button is
always visible but this functionality is active only when
MultiPrint MLP-149
printer is
connected to the device.
Fig. 7.16. Files management menu
Logging files:
The
Logging files
button (see
Fig. 7.16
) opens the logging files management menu
(see
Fig. 7.17
). To export and/or delete logged files follow these steps:
– select a file/s of logged data from a group,
– select the more files in the other groups (if needed),
– export selected files to flash drive and / or delete selected logged data files,
47
