User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
7.8.6. Logical Channels - Math function mode
This mode allows the user to define the Math function for display on the screen,
processed this data in any other logical channels or it can be the data source for output to the
control and settings of any object.

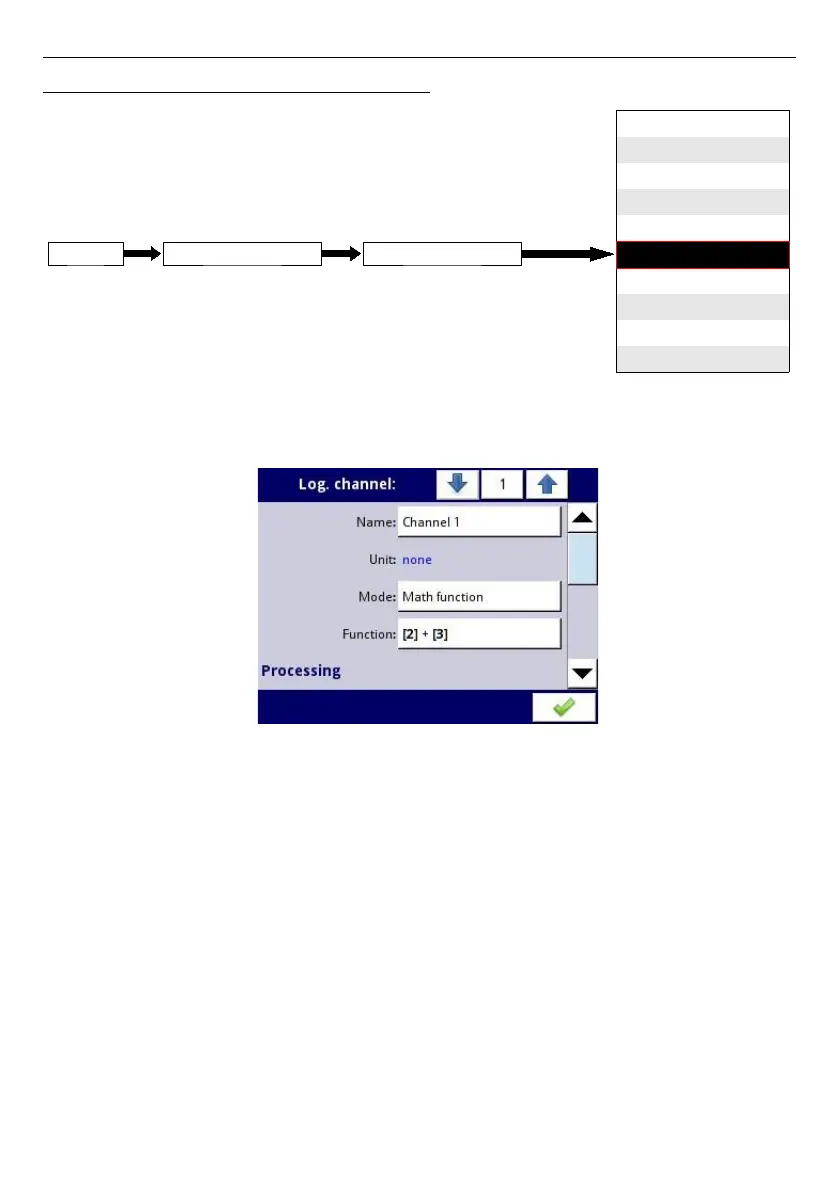

Fig. 7.52. Input channels menu - parameters specific for Math function mode
MultiCon
has a wide variety mathematical function which increases functionality and the
range of the applications of the device.
Fig. 7.52
presents parameters of
Input channel
into
Math function
mode. This mode allows the user to display channel value, process this data
in any other logical channel or it can be the data source for an output to control and set any
object.
The parameters of
Logical channel
in
Math function
mode are:
–
Name
- it gives the name to the logical channel,
–
Unit
- to create a unit use the
Scaling
parameter (more information see
Chapter
7.8.1. Logical Channels - General settings
),
–
Mode=Math function
– in this parameter user selects source type of data for logical
channel,
–
Function
- this parameter allow user to select math function from the list, for more
information see below in this
Chapter
,
–
Latch
parameter block - allows user to set the
latch function
which will hold the last
value of a channel (discussed in
Chapter 7.8.1. Logical Channels - General
settings
),
95
disabled
Hardware input
Hardware output monitor
Modbus
Set point value
Math function
Controller
Profile/timer
Profile/timer (cycle counter)
Data from other channel
Mode
Logical channelDevice configurationMENU
