8.8. UN3, UN5 – OPTOISOLATED UNIVERSAL INPUTS MODULES

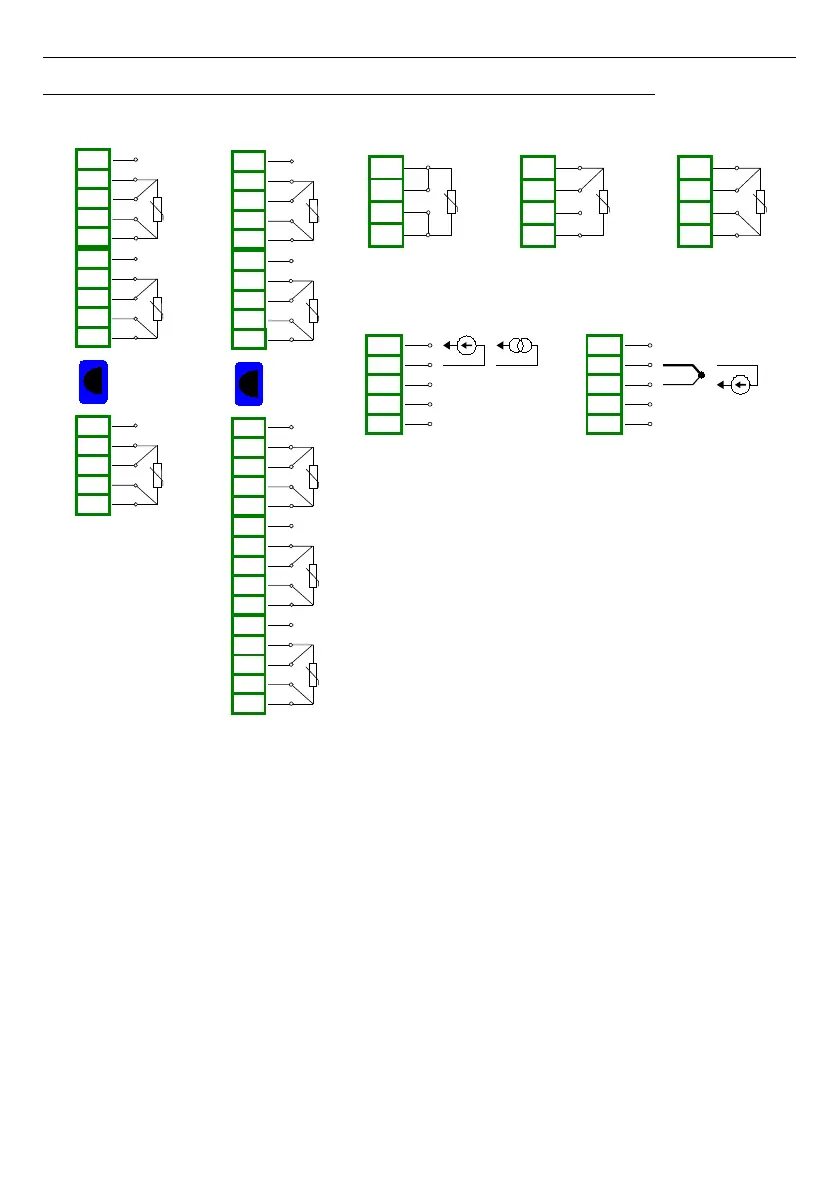

Fig. 8.15. Universal input modules
UN3
and
UN5
are modules with 5 and 3 universal inputs:
– current measurements,
– voltage measurements,
– temperature measurements (TC or RTD).
255
UN5
5 universal inputs
n08
n09
n10
n11
n12
n04
n05
n06
n07
n01
n02
n03
n13
n14
n15
V, mA
+
+
-
TC, mV
RTD
IN1
+
+
-
TC, mV
RTD
IN2
+
+
-
TC, mV
RTD
IN3
V, mA
V, mA
n16
n17
n18
n19
n20
+
+
-
TC, mV
RTD
IN4
V, mA
n21
n22
n23
n24
n25
+
+
-
TC, mV
RTD
IN5
V, mA
IN_T
UN3
3 universal inputs
n08
n09
n10
n11
n12
n04
n05
n06
n07
n01
n02
n03
n13
n14
n15
V, mA
+
+
-
TC, mV
RTD
IN1
+
+
-
TC, mV
RTD
IN2
+
+
-
TC, mV
RTD
IN3
V, mA
V, mA
IN_T
RTD
n02
n03
n04
n05
IN1
RTD 4-wire
mode
RTD
n02
n03
n04
n05
IN1
RTD 2-wire
mode
RTD
n02
n03
n04
n05
IN1
RTD 3-wire
mode
n05
n04
n01
n02
n03
+
TC, mV
- -
+
IN1
TC and mA
mode
n05
n04
n01
n02
n03
V, mA
+
-
IN1
V and mA
mode
