User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
Comments for
Looping
parameter
If the user select:
counted
or
infinite
, repeats of the Profile/timer the user has:
– if the section from which begins the next repeat Profile/timer is a
ramp
, then in the
whole duration of this section is linear generating the output signal from the
final value
of the previous section to
final value
this section. This is shown in
Fig. 7.101
(dashed line-run profile)
– if the section from which the next repeat of the Profile/timer begins is a constant
value, then Profile signal quickly transient (0.1 seconds)from the
final value
of the
previous section to a
constant value
in this section. This is shown in
Fig. 7.101
(profile guided fine line).

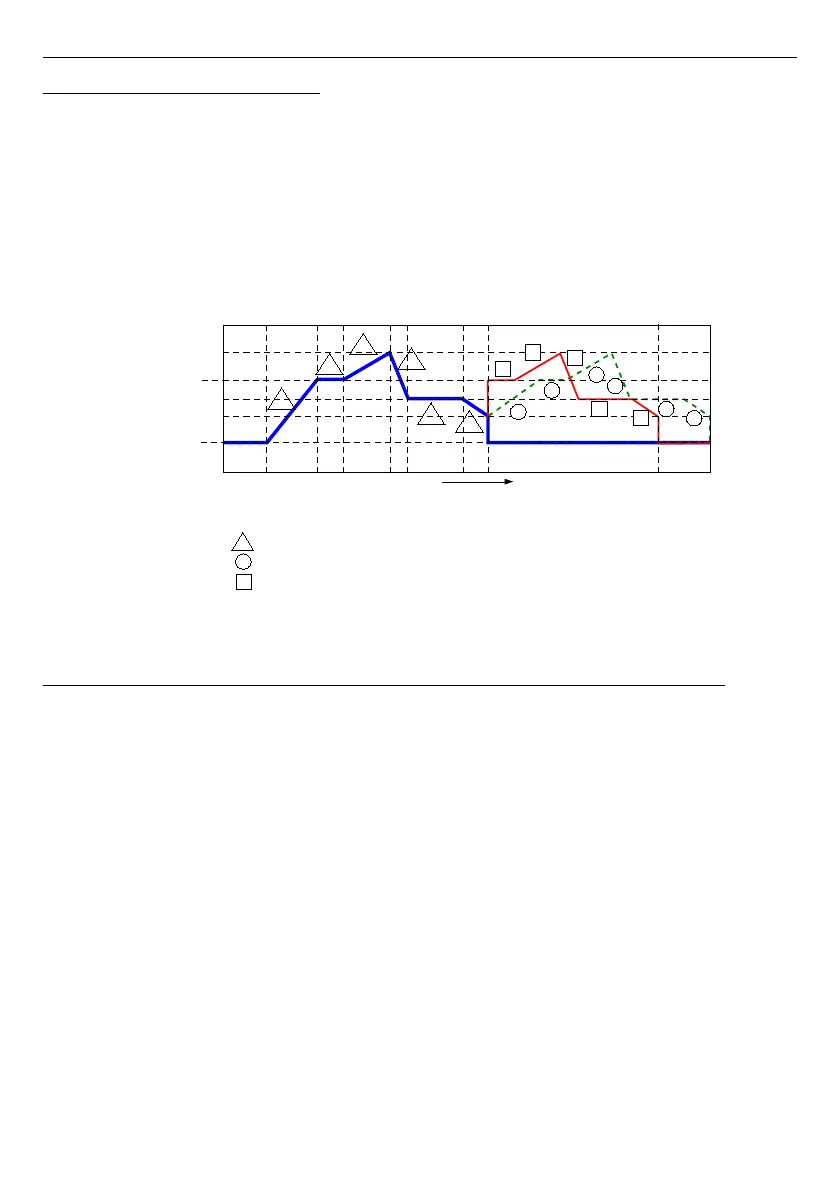

Fig. 7.101. Sample of Profile/timer with description of parameters
7.12.2. Profiles/timers - Triggering mode: level (gate), edge (once), edge (retrig.)
The
Profiles/timers
parameters for triggering mode: level (gate), edge (once), edge (retrig.)
are:
–
Name
– it gives the name to the Profile,
–
Triggering mode
– selects a way to generate Profile/timer, there are five modes of
triggering:
•
disabled
,
•
level (gate)
– this means that configured by user
Profile
is generated when
source signal will have a value
> 0
, otherwise (if source value
≤ 0
) defined
Profile will not be generated. See
Fig. 7.102
and example
a)
in
Fig. 7.103
,
•
edge (once)
– this means that configured by user
Profile
will be triggered by
the rising edge (from values
≤ 0
to the value
> 0
) of source signal. After the
rising edge the
Profile
will be generated in whole (once), regardless of further
changes to the signal source, see
Fig. 7.102
and example
b)
in
Fig. 7.103
,
•
edge (re-triggering)
– this means that configured by user
Profile
will be
triggered by the rising edge (from values
≤ 0
to the value
> 0
) of source signal.
However, in this mode, unlike the
edge (once)
mode the defined
Profile
will be
generated from the beginning every time when the
Triggering source
signal will
generate an edge, whether that Profile had been completed or not. See
Fig. 7.102
and example
c)
in
Fig. 7.103
,
178
Idle value
1
2
3
4
5
6
2
3
4
5
6
Legend:
2
1
Section for Profile without looping
Section for Profile with looping -> Retur to position 1 (slope)
Section for Profile with looping -> Retur to position 2 (const. value)
Time
1
1
2
3
4
5
6
Final value for
first section
