Triggering source
– allows to choose triggering source of the Profile/timer from the
logical channel list,
–
Idle value
– the value which occurs at the idle state which means before and after
generating the Profile/timer,
–
Section list
– submenu in which the user can define up to 100 sections generated
by the Profile/timer. For more information see
Chapter 7.12.1. Profile/timer -
General settings
,
–
Looping
– each Profile/timer has an ability to repeat its generated signal, this
parameter has options:
•
disabled
– the profile is not repeated,
•
counted
– allows to generate the profile specified number of times defined in
Loop count
parameter,
•
from logical channel
- allows to run the profile number of times equals the
value in the selected logical channel determined by the
Looping source
parameter,
•
infinite
– allows to infinite repeating of generated
Profile
,
–
Loop count
– this parameter is visible only if
Looping
parameter is set as
counted
,
defines the number of repetitions of generated Profile,
–
Looping source
– this parameter is visible only if
Looping
parameter is set as
from logical channel
. It allows to choose a logical channel from the list, which value
will be compared with the number of already made cycles of Profile,
–
Return to position
– this parameter is invisible if
Looping
parameter is set as
disabled
, allows to select a fixed position from which every next generated Profile
has to start,

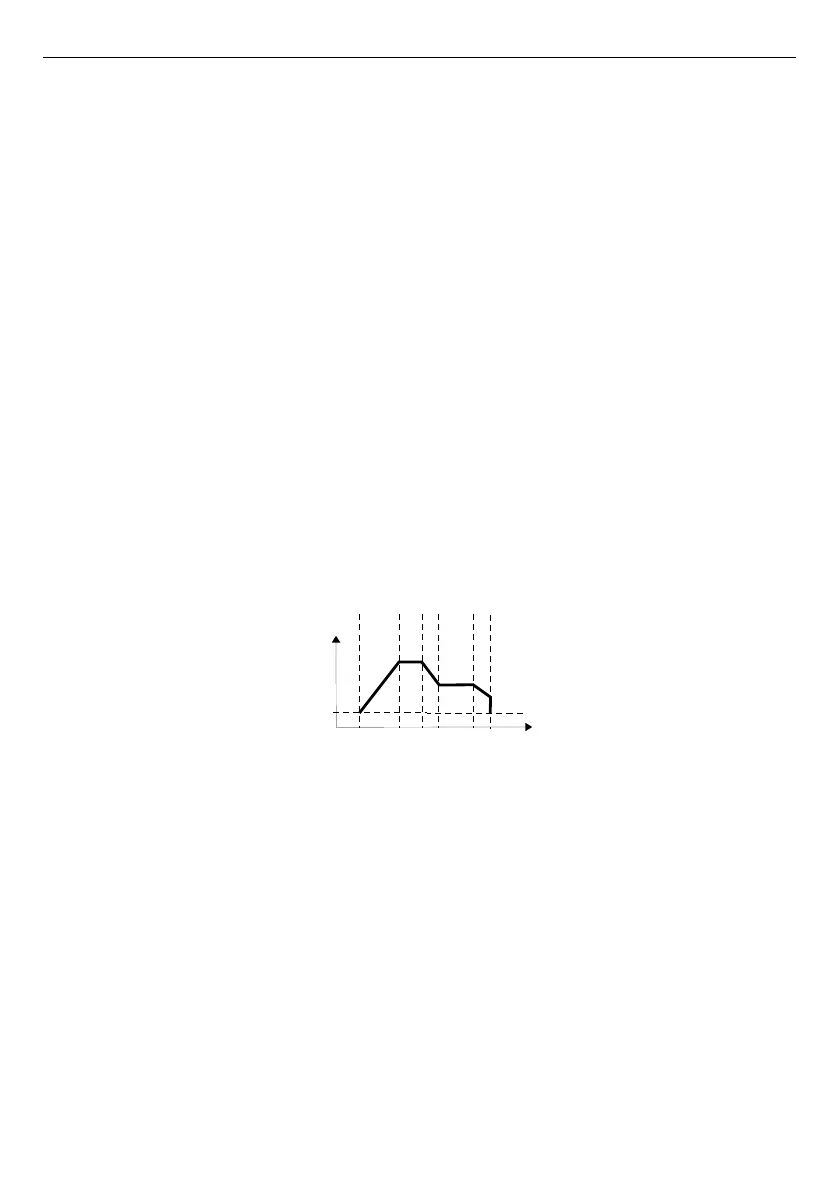

Fig. 7.102. Sample of Profile/timer
179
1 2 3 4 5 6
Profile
Time [s]
Idle value
Section num.: 1 2 3 4 5
