User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
8.15. COMMUNICATION MODULES

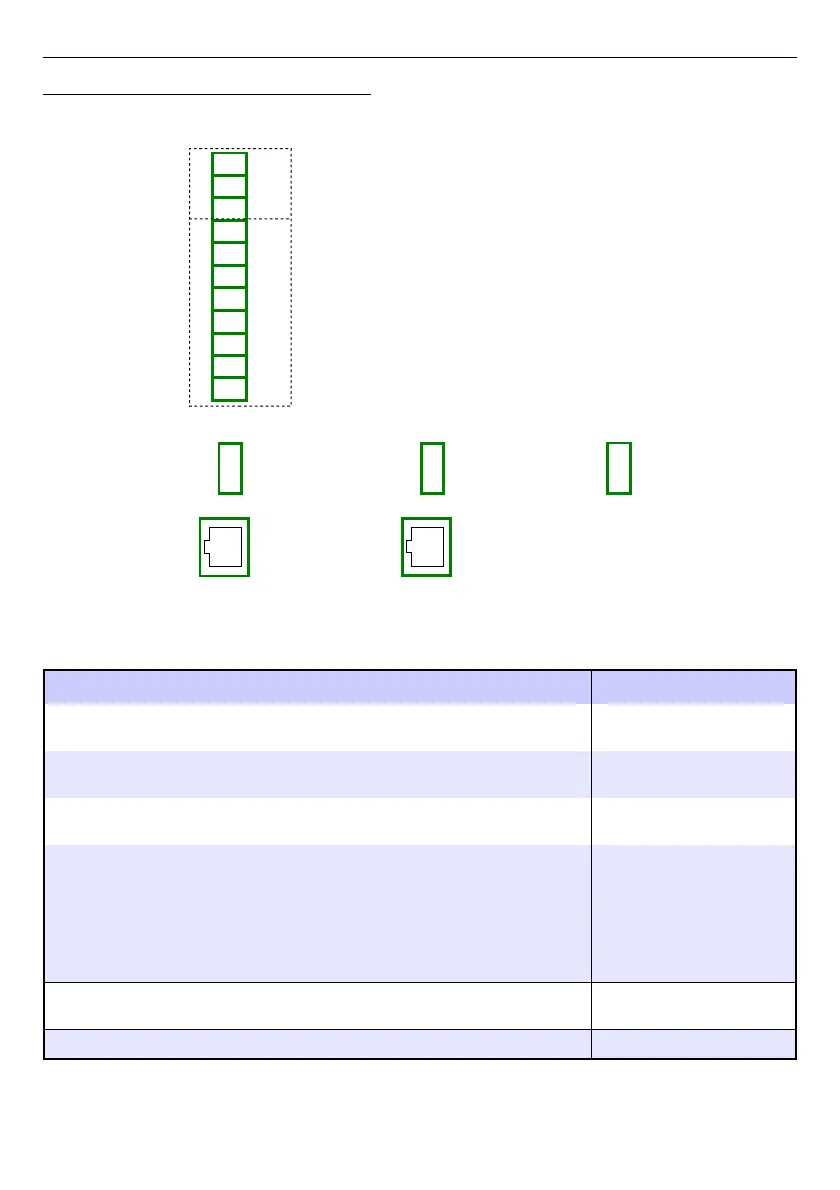

Fig. 8.33. Communication modules: ACM, ETU and USB (back - USB host only)
Most important parameters of ACM, ETU and USB modules:
ACM ETU USB (back)
Number of
inputs/outputs
4 2 1
Input/output type RS-485, RS-232+RS-485,
USB host, RJ-45 ETH
USB host, RJ-45 ETH USB host
Hardware output
limitation
USB host:
max current output 100mA
USB host:
max current output 100mA
USB host:
max current output 100mA
Baudrate RS-485 [bit./sec.]: 1200,
2400, 4800, 9600, 19200,
38400, 57600, 115200,
RJ-45 ETH:10Mb/sec.
USB host 12Mb/sec.
RJ-45 ETH:10Mb/sec.
USB host 12Mb/sec. USB host 12Mb/sec.
Data format RS-232/485: 8N1, 8N2,
8E1, 8E2, 8O1, 8O2
- -
Weight 66 g 49 g 37 g
Tab. 8.24 Technical data for the communication module
278
RJ-45
ETH
USB
host
ETU
RJ-45
ETH
USB
host
19
16
17
18
14
15
RS-485 (2)
GND
RxD
A+
B-
isolated
13
10
11
12
9
A+
B-
GND
TxD
CTS
RTS
RS-232 + RS-485 (3)
isolated
GND
ACM
USB
host
USB
